| Bolt and segment clamping machine side adaptive interface |
| 20 life cycle state |
| -10 deg axial clearance |
| 0 deg body workpiece side |
| Steel body |
| Axial concentric and radial entry |
| 10 bar coolant |
| 40 - 60 deg insert screw, rail bottom |
| Axial inclined exit with nozzle, adjustable |
| 50 mm Dia connection-10 deg rake orthogonal |
| -1 deg inclination |
| 266.RG-22.. compatible insert |
| 90 mm OAL |
| T - Triangle insert shape |
| 1/2 in insert seat |
| 1 deg thread helix correction |
| 5 Nm torque |

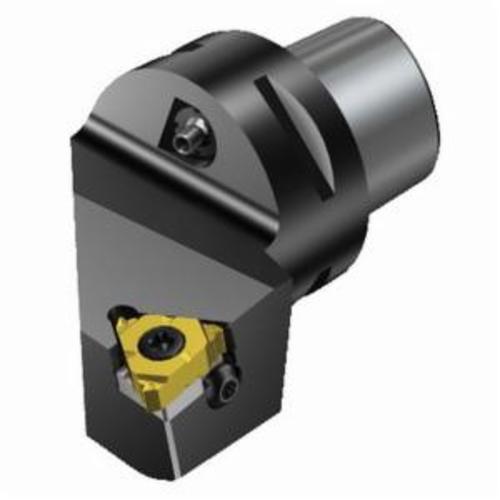

| Cx-266R/LFG tool style |
| ANSI Code: C5-266RFG-35060-22 |
| ISO Code: C5-266RFG-35060-22 |
