Siemens
S-A 3RT25261AK60 CONTACTOR S0 25A 1
Custom_Product_Images_Illustration
Siemens

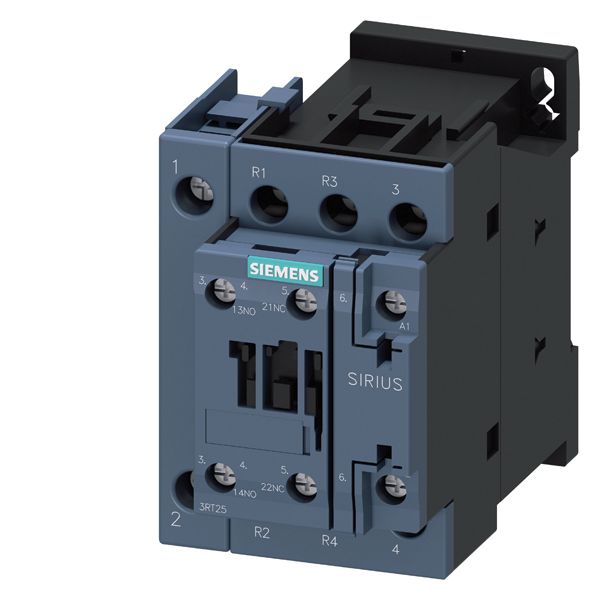

S-A 3RT25261AK60 CONTACTOR S0 25A 1
SKU804587
MFGR #3RT25261AK60
Your Cost: $180.40/ea
List: SIEMENS 3RT25261AK60 CONTACTOR S0 25A 120VAC 2NO/2NC SCRW
SIEMENS 3RT25261AK60 CONTACTOR S0 25A 120VAC 2NO/2NC SCRW
Alternate Catalog Number 3RT2526-1AK60 ARRA Compliant C Brand Siemens Buy American Compliant C Catalog Number 3RT25261AK60 Coil Power Rating 9.4/87 VA Coil Voltage 110/120 VAC Contact Configuration 1NO-1NC Contact Rating A600/Q600 Contact Type Reversing Country of Origin DE Currency USD Dimensions 85 mm H x 61 mm W x 97 mm D Enclosure Type IP20 EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Volume Per Pack 56.00 Gross Volume UOM in Gross Weight Per Pack 1.0650 lb Gross Weight per Pack Metric 0.48 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536490065 Height 5.1000 in Height [Metric] 12.9540 cm Length 3.0500 in Length [Metric] 7.7470 cm Manufacturer Siemens Maximum Load Current 15 A Mounting Type Rail/Snap-On/Threaded Number of Auxiliary Contacts 2 Number Of Poles 4 Operating Cycles 10000000 Operating Temperature -25 to 60 Power Factor 1.00 Replaced Catalog Number 3RT1526-1AK60 Returnable Y Size S0 Standards RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedRCM ApprovedC-Tick ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE 0660 Part 102IEC 60947-4-1EN 60 947-4-1 Stock Status NONSTOCK Terminal Type Screw Type Innovation UNSPSC 39121529 UPC 11 04089263515 UPC 12 040892635157 Wattage 11 kW Width 3.6000 in Width [Metric] 9.1440 cm Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. 87 VA at 50/60 Hz (pick-up), 9.4 VA at 50/60 Hz (holding) magnet coil at AC 0.76 at 50/60 Hz (holding), 0.28 at 50/60 Hz (closing) power factor 110 VAC at 50 Hz, 120 VAC at 60 Hz voltage rating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 3RT2526-1AK60 |
| ARRA Compliant | C |
| Brand | Siemens |
| Buy American Compliant | C |
| Catalog Number | 3RT25261AK60 |
| Coil Power Rating | 9.4/87 VA |
| Coil Voltage | 110/120 VAC |
| Contact Configuration | 1NO-1NC |
| Contact Rating | A600/Q600 |
| Contact Type | Reversing |
| Country of Origin | DE |
| Currency | USD |
| Dimensions | 85 mm H x 61 mm W x 97 mm D |
| Enclosure Type | IP20 |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 56.00 |
| Gross Volume UOM | in |
| Gross Weight Per Pack | 1.0650 lb |
| Gross Weight per Pack Metric | 0.48 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536490065 |
| Height | 5.1000 in |
| Height [Metric] | 12.9540 cm |
| Length | 3.0500 in |
| Length [Metric] | 7.7470 cm |
| Manufacturer | Siemens |
| Maximum Load Current | 15 A |
| Mounting Type | Rail/Snap-On/Threaded |
| Number of Auxiliary Contacts | 2 |
| Number Of Poles | 4 |
| Operating Cycles | 10000000 |
| Operating Temperature | -25 to 60 |
| Power Factor | 1.00 |
| Replaced Catalog Number | 3RT1526-1AK60 |
| Returnable | Y |
| Size | S0 |
| Standards | RoHS CompliantCCC CertifiedCSA CertifiedUL ListedEAC ApprovedRCM ApprovedC-Tick ApprovedCE CertifiedABS ApprovedBureau Veritas CertifiedLRS ListedPRS CertifiedRINA CertifiedRMRS ApprovedDNV-GL ApprovedVDE 0660 Part 102IEC 60947-4-1EN 60 947-4-1 |
| Stock Status | NONSTOCK |
| Terminal Type | Screw |
| Type | Innovation |
| UNSPSC | 39121529 |
| UPC 11 | 04089263515 |
| UPC 12 | 040892635157 |
| Wattage | 11 kW |
| Width | 3.6000 in |
| Width [Metric] | 9.1440 cm |
| Contactors in size S00, S0?and S2 can be used to configure?star-delta (wye-delta) starters simply by plugging in function modules. These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring. |
| 87 VA at 50/60 Hz (pick-up), 9.4 VA at 50/60 Hz (holding) magnet coil at AC |
| 0.76 at 50/60 Hz (holding), 0.28 at 50/60 Hz (closing) power factor |
| 110 VAC at 50 Hz, 120 VAC at 60 Hz voltage rating |
