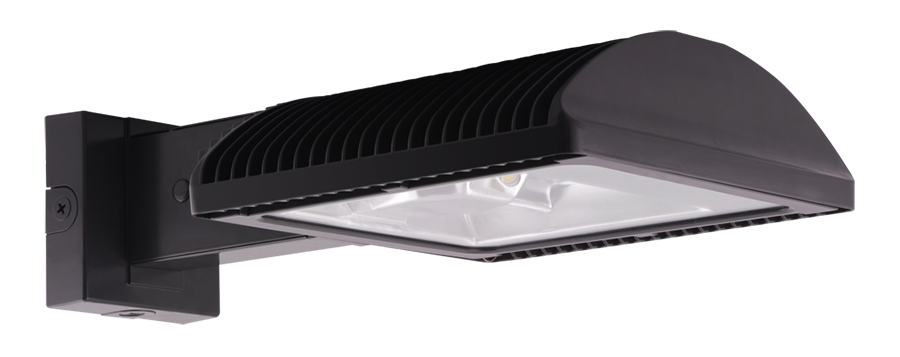

RAB Lighting WPLED4T150 Type IV Light Distribution Wallpack, LED Lamp, 156 W Fixture, 120 to 277 VAC
Outdoor Wallpacks
929235
MFG #: WPLED4T150
RAB
1138.79000
/ ea
RAB Wallpack, Type IV Light Distribution, 120 to 277 VAC, 156 W Fixture, 1.31 A, LED Lamp, 150 W Lamp, 100000 hr Average Life, Bronze Light, 5000 K Color, 65 CRI, 14349 Lumens, IP66, Wall Mount, Aluminum Housing, Polyester Powder Coated Housing, 15 in L x 23.2 in W x 6.625 in H
- Brochure URL - led-150-watt-arealights-aled(Brochure URL)
- http://www.rabweb.com(Seller Home Page URL)
- http://www.rabweb.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11274_0D9VIL6T8ZC5PW4Y.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - led_wallpacks_50w_78w_105w_125w_150w.pdf(Install Instructions 1 URL)
- Install Instructions URL - RAB_WPLED2T150N_Installation_Instructions.pdf(Install Instructions URL)
- Spec Sheet URL - 11274_0CYSZ3M72BD1HGU4.pdf(Spec Sheet URL)
- Spec Sheet URL - WPLED4T150(Spec Sheet URL)
- Tech Drawing URL - led_wallpacks_150watt_2.png(Tech Drawing URL)
- Warranty URL - 11274_ID-WAR-v2-Website_Terms_of_Use.pdf(Warranty URL)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Features
| Standard |
| High output, high efficiency led |
| Maintains 70% of initial lumens at 100,000 hours |
| Weatherproof high temperature silicone gaskets |
| Superior heat sinking with die-cast aluminum housing and external fins |
| No photocell |
| Suitable for use in 40 deg C ambient temperatures |
| 5000K (Cool) color temperature |
| 120 V: 1.31 A, 208 V: 0.8 A, 240 V: 0.69 A, 277 V: 0.6 A amperage rating |
