RAB

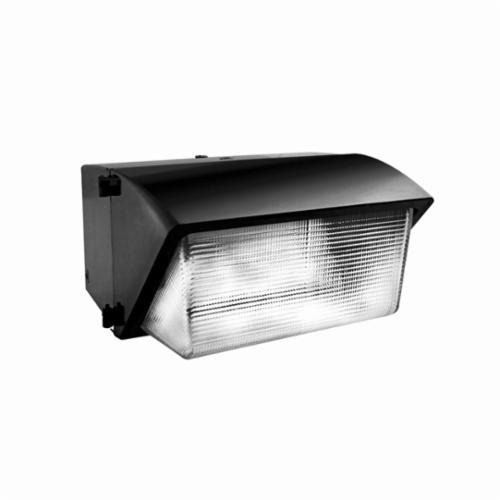

RAB Lighting WP4H320PSQ Outdoor Wallpack, 1 ED28 Lamp, 368 W Fixture, 120/277 VAC, Polyester Powder Coated Housing
Custom_Product_Images_Illustration
RAB
RAB Lighting WP4H320PSQ Outdoor Wallpack, 1 ED28 Lamp, 368 W Fixture, 120/277 VAC, Polyester Powder Coated Housing
SKUPDW~1145021
MFGR #WP4H320PSQ
Price Not Available
RAB Outdoor Wallpack, 120/277 VAC, 368 W Fixture, 2.6/3.2/1.2/1.4 A, ED28 Lamp, 320 W Lamp, Mogul Lamp Base, 1 Lamp, 20000 hr Average Life, Bronze Light, CWA/HPF/Quad Tap Ballast, Tempered Glass Lens, 31000 Lumens, Surface Mount, Aluminum Housing, Polyester Powder Coated Housing, 9 in H x 17-1/8 in W x 13 in D
RAB Outdoor Wallpack, 120/277 VAC, 368 W Fixture, 2.6/3.2/1.2/1.4 A, ED28 Lamp, 320 W Lamp, Mogul Lamp Base, 1 Lamp, 20000 hr Average Life, Bronze Light, CWA/HPF/Quad Tap Ballast, Tempered Glass Lens, 31000 Lumens, Surface Mount, Aluminum Housing, Polyester Powder Coated Housing, 9 in H x 17-1/8 in W x 13 in D
Amperage Rating 3.2/2.6/1.8/1.6/1.5/1.4/1.2 A Average Life 20000 hr Ballast Type CWA/HPF/Quad Tap Catalog Number WP4H320PSQ Country of Origin US Dimensions 9 in H x 17-1/8 in W x 13 in D Gross Weight Per Pack 29.5000 lb Housing Material Die Cast Aluminum Lamp Base Mogul ft Lamp Wattage 320 W Lens Type Tempered Glass Lighting Technology ED28 Lumens 31000 Lumens Mounting Type Wall Number Of Lamps 1 Series WP4 Type Pulse Start UNSPSC 39111503 UPC 11 01981318482 Stock Status NONSTOCK Brand RAB Manufacturer RAB Lighting Inc. Fixture Wattage 368 W Housing Finish Bronze Lamp Type ED28 Voltage Rating 120/208/240/277 VAC HID Hinged door frame opens and remains captive for easy relamping Silicone gasket remains in-place during relamping 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol Hinged refractor frame Continuous silicone rubber gasket Specular anodized aluminum, removable for installation Symmetrical light pattern maximizes distance between fixtures reflector Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals 84 LPW efficacy at lamp, 87% efficacy at ballast Prismatic optics designed to minimize glare and throw light down and out Heat resistant borosilicate glass Pulse start metal halide for increased lamp life, lumen maintenance, color uniformity and efficacy 2.6/3.2 A at 120 VAC, 1.5/1.8 A at 208 VAC, 1.3/1.6 A at 240 VAC, 1.2/1.4 A at 277 VAC
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 3.2/2.6/1.8/1.6/1.5/1.4/1.2 A |
| Average Life | 20000 hr |
| Ballast Type | CWA/HPF/Quad Tap |
| Catalog Number | WP4H320PSQ |
| Country of Origin | US |
| Dimensions | 9 in H x 17-1/8 in W x 13 in D |
| Gross Weight Per Pack | 29.5000 lb |
| Housing Material | Die Cast Aluminum |
| Lamp Base | Mogul ft |
| Lamp Wattage | 320 W |
| Lens Type | Tempered Glass |
| Lighting Technology | ED28 |
| Lumens | 31000 Lumens |
| Mounting Type | Wall |
| Number Of Lamps | 1 |
| Series | WP4 |
| Type | Pulse Start |
| UNSPSC | 39111503 |
| UPC 11 | 01981318482 |
| Stock Status | NONSTOCK |
| Brand | RAB |
| Manufacturer | RAB Lighting Inc. |
| Fixture Wattage | 368 W |
| Housing Finish | Bronze |
| Lamp Type | ED28 |
| Voltage Rating | 120/208/240/277 VAC |
| HID |
| Hinged door frame opens and remains captive for easy relamping |
| Silicone gasket remains in-place during relamping |
| 1/2 in NPS tapped holes top, both sides and back for conduit or photocontrol |
| Hinged refractor frame |
| Continuous silicone rubber gasket |
| Specular anodized aluminum, removable for installation |
| Symmetrical light pattern maximizes distance between fixtures reflector |
| Our environmentally friendly polyester powder coatings are formulated for high durability and long lasting color and contain no VOC or toxic heavy metals |
| 84 LPW efficacy at lamp, 87% efficacy at ballast |
| Prismatic optics designed to minimize glare and throw light down and out |
| Heat resistant borosilicate glass |
| Pulse start metal halide for increased lamp life, lumen maintenance, color uniformity and efficacy |
| 2.6/3.2 A at 120 VAC, 1.5/1.8 A at 208 VAC, 1.3/1.6 A at 240 VAC, 1.2/1.4 A at 277 VAC |
