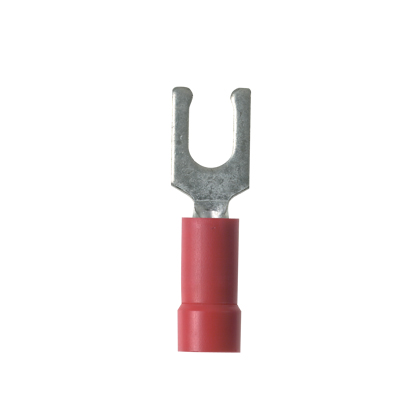

Panduit® PV18-8LF-CY Pan-Term® PV-LF Insulated Loose Piece Fork Terminal, 22 to 18 AWG Conductor, 0.97 in L, Brazed Seam Barrel, Red
Custom_Product_Images_Illustration
Panduit® PV18-8LF-CY Pan-Term® PV-LF Insulated Loose Piece Fork Terminal, 22 to 18 AWG Conductor, 0.97 in L, Brazed Seam Barrel, Red
SKU267399
MFGR #PV18-8LF-CY
Your Cost: $0.911/ea($91.10 / c)
Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit® ® Pan-Term® ® Terminals are designed and manufactured for fast assembly, and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
ARRA Compliant Y Buy American Compliant Y Catalog Number PV18-8LF-CY Conductor Type Solid/Stranded Copper Connection Funnel Entry Country of Origin MEX Currency USD Enclosure Fork shape EU RoHS Indicator Y Finish Tin Plated Gross Volume UOM CF Gross Volume UOM Metric m3 Gross Weight Per Pack 0.2800 lb Gross Weight per Pack Metric 0.64 Gross Weight UOM Metric kg Height 4.40 in Height [Metric] 11.1760 cm Insulation PVC Length [Metric] 25.1460 cm Mounting 5/16 Returnable Y Series PV-LF Size #8 Specifications 5/16 in L Wire Strip, 0.15 in Dia Max Vinyl Insulation, 1/4 in Clearance, Funnel Entry Barrel Configuration Standard UL Listed 587H E52164; CSA Certified LR31212 Standards ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B Stud Size #8 Sub Brand Pan-Term?® Temperature Rating 221 °F Tongue Size 0.29 in W x 0.03 in THK Tongue Type Locking Fork Type Locking Fork Terminal UNSPSC 39121409 UPC 11 07498369473 UPC 12 07498369473 Voltage Rating 600 V Width 2.35 in Width [Metric] 5.9690 cm Wire Size #18 AWG Stock Status NONSTOCK Brand Panduit® Manufacturer Panduit® Barrel Type Brazed Seam Color Red Conductor Size 22 to 18 AWG Length 9.90 in Material Copper Vinyl insulated Funnel entry barrel configuration Fork design provides fast and easy installation, without the need to remove fastener Insulation support helps to prevent wire damage in bending applications Brazed seam protects terminal barrel from splitting during the crimp process Internal barrel serrations assure good wire contact and maximum tensile strength Crimp termination Free hanging (in-line) mounting Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 Locks in place for secure connection 100/Bottle, Standard package
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | Y |
| Buy American Compliant | Y |
| Catalog Number | PV18-8LF-CY |
| Conductor Type | Solid/Stranded Copper |
| Connection | Funnel Entry |
| Country of Origin | MEX |
| Currency | USD |
| Enclosure | Fork shape |
| EU RoHS Indicator | Y |
| Finish | Tin Plated |
| Gross Volume UOM | CF |
| Gross Volume UOM Metric | m3 |
| Gross Weight Per Pack | 0.2800 lb |
| Gross Weight per Pack Metric | 0.64 |
| Gross Weight UOM Metric | kg |
| Height | 4.40 in |
| Height [Metric] | 11.1760 cm |
| Insulation | PVC |
| Length [Metric] | 25.1460 cm |
| Mounting | 5/16 |
| Returnable | Y |
| Series | PV-LF |
| Size | #8 |
| Specifications | 5/16 in L Wire Strip, 0.15 in Dia Max Vinyl Insulation, 1/4 in Clearance, Funnel Entry Barrel Configuration |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantABS ApprovedCSA C22.2 No. 65UL94 V-0 Flammability RatingUL 486A/486B |
| Stud Size | #8 |
| Sub Brand | Pan-Term?® |
| Temperature Rating | 221 °F |
| Tongue Size | 0.29 in W x 0.03 in THK |
| Tongue Type | Locking Fork |
| Type | Locking Fork Terminal |
| UNSPSC | 39121409 |
| UPC 11 | 07498369473 |
| UPC 12 | 07498369473 |
| Voltage Rating | 600 V |
| Width | 2.35 in |
| Width [Metric] | 5.9690 cm |
| Wire Size | #18 AWG |
| Stock Status | NONSTOCK |
| Brand | Panduit® |
| Manufacturer | Panduit® |
| Barrel Type | Brazed Seam |
| Color | Red |
| Conductor Size | 22 to 18 AWG |
| Length | 9.90 in |
| Material | Copper |
| Vinyl insulated |
| Funnel entry barrel configuration |
| Fork design provides fast and easy installation, without the need to remove fastener |
| Insulation support helps to prevent wire damage in bending applications |
| Brazed seam protects terminal barrel from splitting during the crimp process |
| Internal barrel serrations assure good wire contact and maximum tensile strength |
| Crimp termination |
| Free hanging (in-line) mounting |
| Recommended tools CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500 |
| Locks in place for secure connection |
| 100/Bottle, Standard package |
