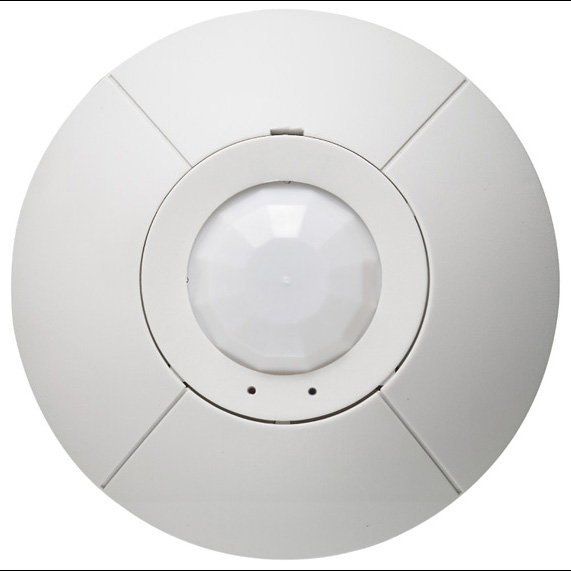

Lutron® LOS-CIR-1500-WH LOS-CIR Occupancy Sensor, 20 to 24 VDC, Dual (Ultrasonic and Passive Infrared) Sensor, 1500 sq-ft Coverage
Lutron® LOS-CIR-1500-WH LOS-CIR Occupancy Sensor, 20 to 24 VDC, Dual (Ultrasonic and Passive Infrared) Sensor, 1500 sq-ft Coverage
SKU583278
MFGR #LOS-CIR-1500-WH
Price Not Available
List: The LOS-CIR series passive infrared ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on.
The LOS-CIR series passive infrared ceiling-mount sensors can integrate into Lutron® systems or function as stand-alone controls using a Lutron® power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on.
Amperage Rating 33 mA Application Lighting Control ARRA Compliant N Buy American Compliant N Catalog Number LOS-CIR-1500-WH Color White Connection Type 6 in Lead Wire Control Output 20 to 24 VDC Country of Origin CN Currency USD Dimensions 4.5 in Dia x 1.4 in D Enclosure Plastic Environmental Conditions Relative humidity less than 95 percent, non-condensing. For indoor use only EU RoHS Indicator N Gross Volume Per Pack 0.07 Gross Volume per Pack Metric 0.00 Gross Weight Per Pack 0.5200 lb Gross Weight per Pack Metric 0.20 Gross Weight UOM Metric kg Height 2.90 in Height [Metric] 7.3660 cm Length 7.10 in Length [Metric] 18.0340 cm Material Plastic Mounting Ceiling Operating Temperature 32 to 104 °F Sensing Range 1500 ft2 (140 m2), 360 degree field of view Series LOS-CIR Standard UL, cUL Standards UL, cUL Listed Sub Brand LOS-CIR series Supply Voltage 20 to 24 VDC Temperature Rating 32 to 104 °F Time Delay 8 to 30 min Manual, 8 sec Test Type Infrared ceiling-mount sensor UNSPSC 39122230 UPC 11 02755721240 UPC 12 027557212403 Width 5.70 in Width [Metric] 14.4780 cm Stock Status NONSTOCK Brand Lutron® Manufacturer Lutron Electronics Co., Inc Coverage 1500 ft² Mounting Type Ceiling Sensor Type Passive/Ultrasonic Infrared Viewing Angle 360 ° Voltage Rating 20 to 24 VDC Lighting Control Can integrate into Lutron systems or function as a stand-alone control using a Lutron power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on. Intelligent, continually adapting Passive Infrared (PIR) sensor. Reliable motion detection with high error immunity. The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space. Snap-locks to ceiling-mounted cover plate. Non-volatile memory: settings saved in protected memory are not lost during power outages. 450 ft2 to 1500 ft2 (42 m2 to 140 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. Intelligent, continually adapting passive infrared (PIR) sensor provides reliable detection with high error immunity The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space Reliable motion detection with high error immunity Snap locks to ceiling mounted cover plate Non-volatile memory, settings saved in protected memory are not lost during power outages 450 to 1500 sq-ft coverage when mounted on an 8 to 12 ft ceiling Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system Injection molded plastic
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Amperage Rating | 33 mA |
| Application | Lighting Control |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LOS-CIR-1500-WH |
| Color | White |
| Connection Type | 6 in Lead Wire |
| Control Output | 20 to 24 VDC |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 4.5 in Dia x 1.4 in D |
| Enclosure | Plastic |
| Environmental Conditions | Relative humidity less than 95 percent, non-condensing. For indoor use only |
| EU RoHS Indicator | N |
| Gross Volume Per Pack | 0.07 |
| Gross Volume per Pack Metric | 0.00 |
| Gross Weight Per Pack | 0.5200 lb |
| Gross Weight per Pack Metric | 0.20 |
| Gross Weight UOM Metric | kg |
| Height | 2.90 in |
| Height [Metric] | 7.3660 cm |
| Length | 7.10 in |
| Length [Metric] | 18.0340 cm |
| Material | Plastic |
| Mounting | Ceiling |
| Operating Temperature | 32 to 104 °F |
| Sensing Range | 1500 ft2 (140 m2), 360 degree field of view |
| Series | LOS-CIR |
| Standard | UL, cUL |
| Standards | UL, cUL Listed |
| Sub Brand | LOS-CIR series |
| Supply Voltage | 20 to 24 VDC |
| Temperature Rating | 32 to 104 °F |
| Time Delay | 8 to 30 min Manual, 8 sec Test |
| Type | Infrared ceiling-mount sensor |
| UNSPSC | 39122230 |
| UPC 11 | 02755721240 |
| UPC 12 | 027557212403 |
| Width | 5.70 in |
| Width [Metric] | 14.4780 cm |
| Stock Status | NONSTOCK |
| Brand | Lutron® |
| Manufacturer | Lutron Electronics Co., Inc |
| Coverage | 1500 ft² |
| Mounting Type | Ceiling |
| Sensor Type | Passive/Ultrasonic Infrared |
| Viewing Angle | 360 ° |
| Voltage Rating | 20 to 24 VDC |
| Lighting Control |
| Can integrate into Lutron systems or function as a stand-alone control using a Lutron power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on. Intelligent, continually adapting Passive Infrared (PIR) sensor. Reliable motion detection with high error immunity. The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space. Snap-locks to ceiling-mounted cover plate. Non-volatile memory: settings saved in protected memory are not lost during power outages. 450 ft2 to 1500 ft2 (42 m2 to 140 m2) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling. Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system. |
| Intelligent, continually adapting passive infrared (PIR) sensor provides reliable detection with high error immunity |
| The internal microprocessor analyzes the information from the PIR technology and determines the optimum setting to use in order to properly cover the space |
| Reliable motion detection with high error immunity |
| Snap locks to ceiling mounted cover plate |
| Non-volatile memory, settings saved in protected memory are not lost during power outages |
| 450 to 1500 sq-ft coverage when mounted on an 8 to 12 ft ceiling |
| Affords choice of turning lights Off or dimming to a preset level in the unoccupied state when integrated with a Lutron® system |
| Injection molded plastic |
