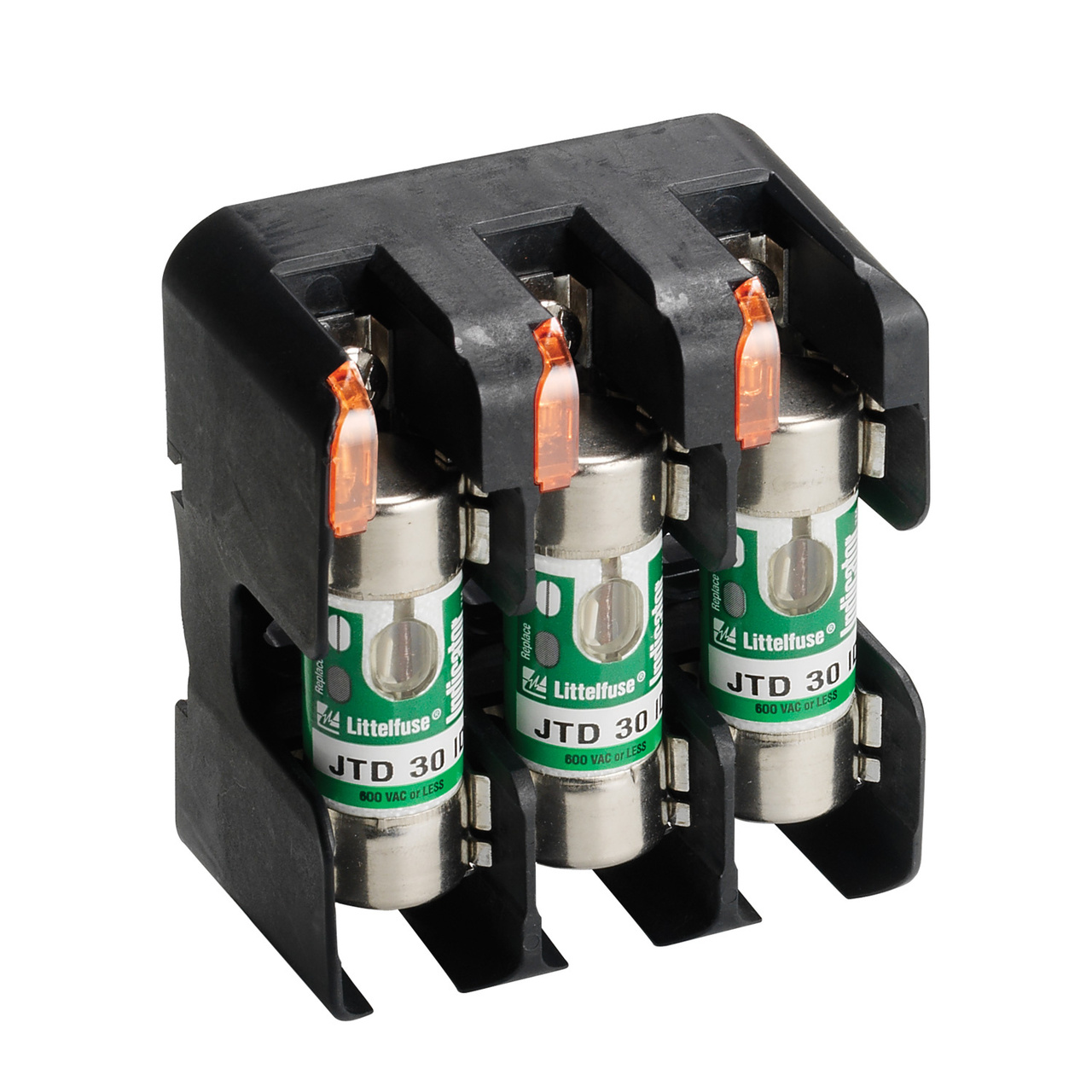

Littelfuse® LFJ60400-3C POWR-GARD® LFJ Fuse Block, 600 VAC, 400 A, 1/0 AWG to 350 kcmil Wire, 3 Poles
Custom_Product_Images_Illustration
Littelfuse® LFJ60400-3C POWR-GARD® LFJ Fuse Block, 600 VAC, 400 A, 1/0 AWG to 350 kcmil Wire, 3 Poles
SKU679393
MFGR #LFJ60400-3C
Your Cost: $1,627.55/ea
List: The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.
The Littelfuse 600 V Class J blocks offer generous space savings and enhanced value over previous generations, such as indication, snap-to-release DIN rail mounting and universal mounting holes.
Alternate Catalog Number LFJ604003C ARRA Compliant N Buy American Compliant N Catalog Number LFJ60400-3C Connection Type Box Lug Country of Origin CN Currency USD Dimensions 10 in L x 9.32 in W x 3.32 in H EU RoHS Indicator Y Fuse Diameter 2 in Fuse Length 7.126 in Gross Weight Per Pack 0.1500 lb Gross Weight per Pack Metric 0.07 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536908585 Material Thermoplastic Mounting Type DIN Rail Number Of Poles 3 Series LFJ Standard UL Listed CSA Certified Standards RoHS CompliantUL ListedCSA Certified94 V-0 Flammability Rating Sub Brand LF Series Fuseblock Suitable For Use With JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse Temperature Rating 130 °C UNSPSC 39121629 UPC 11 07945818192 UPC 12 079458181920 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 400 A Class J Type Class J Fuseblock Voltage Rating 600 VAC Wire Size 1/0 AWG to 350 kcmil Space-saving DIN Rail Indication Space saving design up to 45% smaller than existing blocks Universal mounting holes for easy replacement Only 1-hand is required to release from DIN rail (lock open lock closed) Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocks <0.6 mA at 600 VAC leakage current Lead (Pb) free Phenolic blocks have side barriers for isolation Indication offered on all versions except 200 to 600 A DIN rail releasable for all non-knife blade style fuses Covers available for 100 a and lower to enhance safety Covers available for 100 a and lower to enhance safety
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | LFJ604003C |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | LFJ60400-3C |
| Connection Type | Box Lug |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 10 in L x 9.32 in W x 3.32 in H |
| EU RoHS Indicator | Y |
| Fuse Diameter | 2 in |
| Fuse Length | 7.126 in |
| Gross Weight Per Pack | 0.1500 lb |
| Gross Weight per Pack Metric | 0.07 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536908585 |
| Material | Thermoplastic |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Series | LFJ |
| Standard | UL Listed CSA Certified |
| Standards | RoHS CompliantUL ListedCSA Certified94 V-0 Flammability Rating |
| Sub Brand | LF Series Fuseblock |
| Suitable For Use With | JTD/JTD_ID Series Time Delay, JLS Series Fast Acting Fuse |
| Temperature Rating | 130 °C |
| UNSPSC | 39121629 |
| UPC 11 | 07945818192 |
| UPC 12 | 079458181920 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 400 A |
| Class | J |
| Type | Class J Fuseblock |
| Voltage Rating | 600 VAC |
| Wire Size | 1/0 AWG to 350 kcmil |
| Space-saving DIN Rail Indication |
| Space saving design up to 45% smaller than existing blocks |
| Universal mounting holes for easy replacement |
| Only 1-hand is required to release from DIN rail (lock open lock closed) |
| Spring reinforced fuse clips are standard on 100 A and larger blocks, reinforcing springs are optional on 30 and 60 A blocks |
| <0.6 mA at 600 VAC leakage current |
| Lead (Pb) free |
| Phenolic blocks have side barriers for isolation |
| Indication offered on all versions except 200 to 600 A |
| DIN rail releasable for all non-knife blade style fuses |
| Covers available for 100 a and lower to enhance safety |
| Covers available for 100 a and lower to enhance safety |
