Littelfuse® FLSR009 POWR-GARD® FLSR Current Limiting Time Delay Fuse, 9 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5

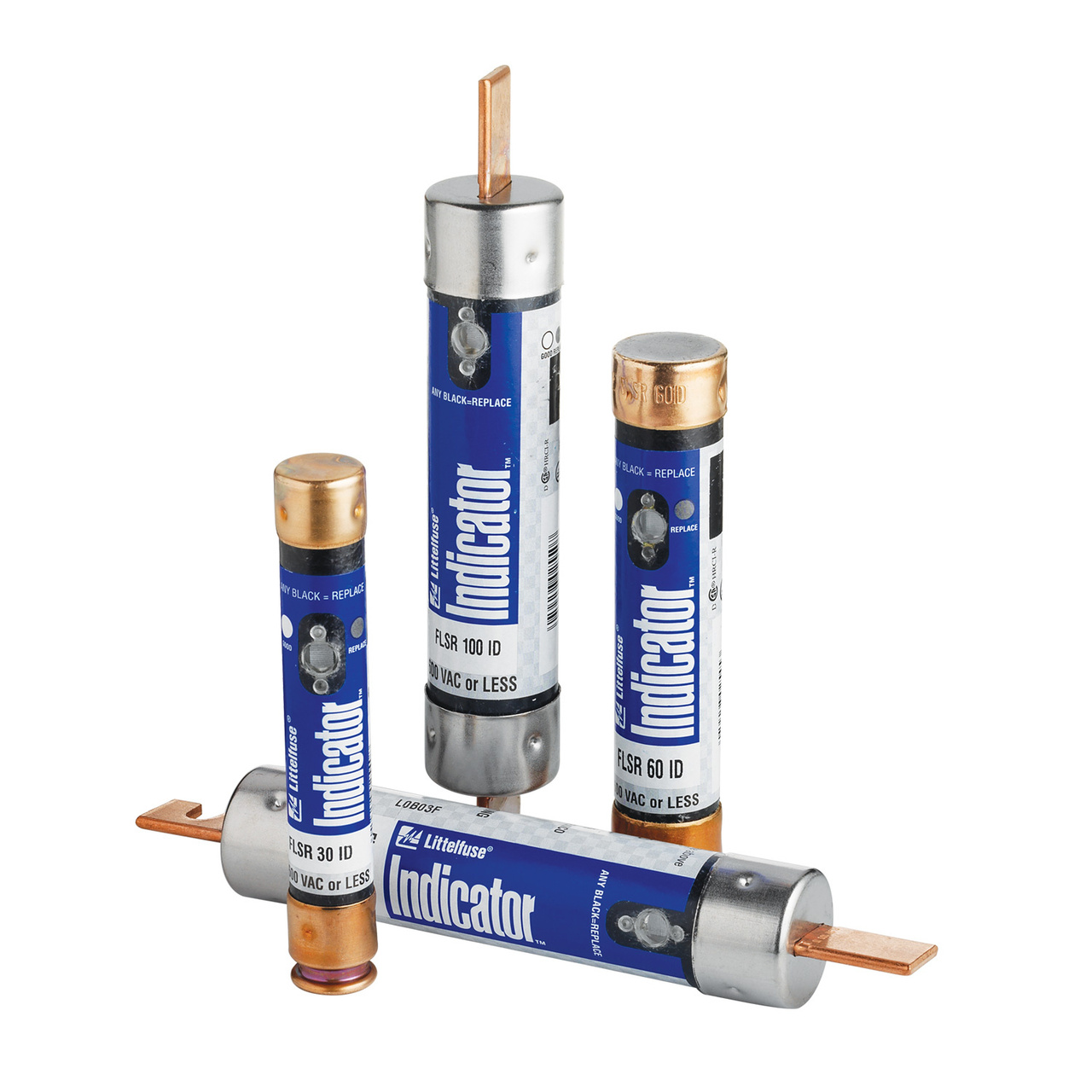

Custom_Product_Images_Illustration
Littelfuse® FLSR009 POWR-GARD® FLSR Current Limiting Time Delay Fuse, 9 A, 600 VAC/300 VDC, 200/20 kA Interrupt, Class RK5
SKU9248
MFGR #FLSR009
Your Cost: $21.36/ea
List: Littelfuse FLSR series fuses have been the superior UL Class RK5 dual-element time-delay fuses, and are the most widely used class of fuses. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by Indicator fuses.
Littelfuse FLSR series fuses have been the superior UL Class RK5 dual-element time-delay fuses, and are the most widely used class of fuses. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by Indicator fuses.
Alternate Catalog Number FLSR009.T Application General Purpose ARRA Compliant N Body Size 13/16 in Dia x 5 in L Body Style Cylindrical Buy American Compliant N Catalog Number FLSR009 Country of Origin MX Currency USD Element Dual EU RoHS Indicator N Frequency Rating 50/60 Hz Gross Weight Per Pack 1.8300 lb Gross Weight per Pack Metric 77.40 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536100040 Indicating|Non~Indicating Non-Indicating Item Group 079458-4U Material Composite Mounting Type Holder Rejection|Non~Rejection Rejection Response Time 10 s Series FLSR Short Circuit Rating 200kA/300kA rms Sym AC/20kA DC A Standard Standard 248-12 UL Listed/CSA Standards RoHS CompliantUL 248-12E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer Sub Brand POWR-GARD FLSR Series Terminal Type Ferrule Type Class RK5 UNSPSC 39121627 UPC 11 07945817064 UPC 12 079458170641 Stock Status NONSTOCK Brand Littelfuse® Manufacturer Littelfuse Inc. Amperage Rating 9 A Interrupt Rating 200/20 kA Voltage Rating 600 VAC/300 VDC General Purpose Time-Delay Reliable interruption of all over currents up to 200 kA Faster acting short circuit protection than any non-current limiting mechanical protective device Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits 300 kA rms symmetrical self certified Bronze caps Industrial cylindrical cartridge fuses
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | FLSR009.T |
| Application | General Purpose |
| ARRA Compliant | N |
| Body Size | 13/16 in Dia x 5 in L |
| Body Style | Cylindrical |
| Buy American Compliant | N |
| Catalog Number | FLSR009 |
| Country of Origin | MX |
| Currency | USD |
| Element | Dual |
| EU RoHS Indicator | N |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 1.8300 lb |
| Gross Weight per Pack Metric | 77.40 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536100040 |
| Indicating|Non~Indicating | Non-Indicating |
| Item Group | 079458-4U |
| Material | Composite |
| Mounting Type | Holder |
| Rejection|Non~Rejection | Rejection |
| Response Time | 10 s |
| Series | FLSR |
| Short Circuit Rating | 200kA/300kA rms Sym AC/20kA DC A |
| Standard | Standard 248-12 UL Listed/CSA |
| Standards | RoHS CompliantUL 248-12E81895CSA LR29862Federal Specification WF-1814PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer |
| Sub Brand | POWR-GARD FLSR Series |
| Terminal Type | Ferrule |
| Type | Class RK5 |
| UNSPSC | 39121627 |
| UPC 11 | 07945817064 |
| UPC 12 | 079458170641 |
| Stock Status | NONSTOCK |
| Brand | Littelfuse® |
| Manufacturer | Littelfuse Inc. |
| Amperage Rating | 9 A |
| Interrupt Rating | 200/20 kA |
| Voltage Rating | 600 VAC/300 VDC |
| General Purpose |
| Time-Delay |
| Reliable interruption of all over currents up to 200 kA |
| Faster acting short circuit protection than any non-current limiting mechanical protective device |
| Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits |
| 300 kA rms symmetrical self certified |
| Bronze caps |
| Industrial cylindrical cartridge fuses |
