Leviton®

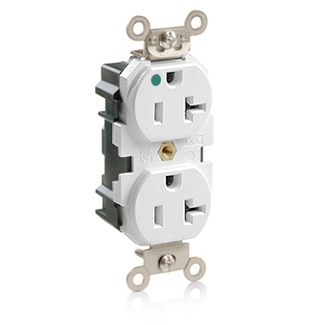

Leviton® M8300-W Duplex Extra Heavy Duty Wide Body Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
Custom_Product_Images_Illustration
Leviton®
Leviton® M8300-W Duplex Extra Heavy Duty Wide Body Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, White
SKU521352
MFGR #M8300-W
Your Cost: $42.56/ea
Leviton®, M8300-W, Duplex Extra Heavy Duty Wide Body Straight Blade Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Modular Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.22 in D Dimensions
Leviton®, M8300-W, Duplex Extra Heavy Duty Wide Body Straight Blade Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Modular Terminal, Thermoplastic, White, 46 in H x 1.53 in W x 1.22 in D Dimensions
Application Commercial Applications ARRA Compliant C Buy American Compliant C Catalog Number M8300-W Connection Modular Terminal Country of Origin MX Currency USD Depth 1.22 in Dielectric Strength 2000 (Min.) Dimensions 46 in H x 1.53 in W x 1.22 in D Environmental Conditions Flammability (Rated V-2 per UL94) EU RoHS Indicator C Grade Commercial Gross Weight Per Pack 0.2200 lb Gross Weight per Pack Metric 0.10 Gross Weight UOM Metric kg Height 9.2500 in Height [Metric] 10.6375 cm Horsepower 1 Length 10.7500 in Length [Metric] 4.2875 cm Material Thermoplastic Mounting Wall Box NEMA Rating NEMA 5-20R Number Of Poles 2 Phase 1 Standard ANSI (C-73);CSA C22.2 No. 42 (File LR-152105);cULus Listed;NEMA (WD-6, WD-1, WD-6);NOM Certified (057) Temperature Rating -40 to 60 DEG C Terminal Type Modular Type 1-Phase Duplex Extra Heavy Duty Wide Body UNSPSC 39121406 UPC 11 07847736383 UPC 12 078477363836 Width 1.62 in Width [Metric] 4.1275 cm Wire Size 12.000000000000000 AWG Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Amperage Rating 20 AMP Color White Number of Wires 3 Voltage Rating 125 Commercial Applications Constructed with impact resistant thermoplastic nylon cover and body Four corner latches securely fasten the receptacles face to the body Large triple wipe, brass T line contacts for superior contact and conductivity 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules Grounding clip permanently secured to strap for easy, simple and secure installation Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment Wiring module locks and latches to the receptacle body providing double the connection security Receptacle to be installed only with Leviton® MSTWL series wiring modules MSTWL wiring module shipped separately with protective cover and factory installed circuit ID l
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Commercial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | M8300-W |
| Connection | Modular Terminal |
| Country of Origin | MX |
| Currency | USD |
| Depth | 1.22 in |
| Dielectric Strength | 2000 (Min.) |
| Dimensions | 46 in H x 1.53 in W x 1.22 in D |
| Environmental Conditions | Flammability (Rated V-2 per UL94) |
| EU RoHS Indicator | C |
| Grade | Commercial |
| Gross Weight Per Pack | 0.2200 lb |
| Gross Weight per Pack Metric | 0.10 |
| Gross Weight UOM Metric | kg |
| Height | 9.2500 in |
| Height [Metric] | 10.6375 cm |
| Horsepower | 1 |
| Length | 10.7500 in |
| Length [Metric] | 4.2875 cm |
| Material | Thermoplastic |
| Mounting | Wall Box |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Phase | 1 |
| Standard | ANSI (C-73);CSA C22.2 No. 42 (File LR-152105);cULus Listed;NEMA (WD-6, WD-1, WD-6);NOM Certified (057) |
| Temperature Rating | -40 to 60 DEG C |
| Terminal Type | Modular |
| Type | 1-Phase Duplex Extra Heavy Duty Wide Body |
| UNSPSC | 39121406 |
| UPC 11 | 07847736383 |
| UPC 12 | 078477363836 |
| Width | 1.62 in |
| Width [Metric] | 4.1275 cm |
| Wire Size | 12.000000000000000 AWG |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Amperage Rating | 20 AMP |
| Color | White |
| Number of Wires | 3 |
| Voltage Rating | 125 |
| Commercial Applications |
| Constructed with impact resistant thermoplastic nylon cover and body |
| Four corner latches securely fasten the receptacles face to the body |
| Large triple wipe, brass T line contacts for superior contact and conductivity |
| 12 AWG THHN wire leads, 6 in length on MSTWL series wiring modules |
| Grounding clip permanently secured to strap for easy, simple and secure installation |
| Receptacle face includes threaded brass bushing for reliable, secure wallplate attachment |
| Wiring module locks and latches to the receptacle body providing double the connection security |
| Receptacle to be installed only with Leviton® MSTWL series wiring modules |
| MSTWL wiring module shipped separately with protective cover and factory installed circuit ID l |
