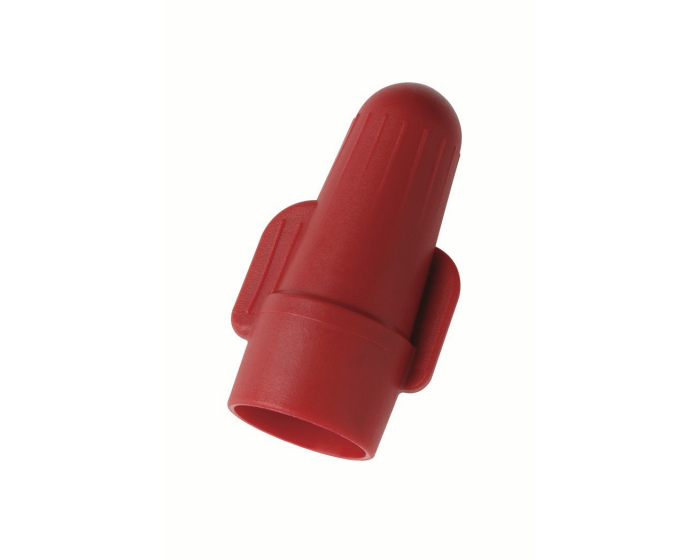

Ideal® BT2-500JR B-Twist™ BT2 Flame Retardant Twist-On Wire Connector, Swept Wing Shell, Expanding/Square Wire Spring, 18 to 8 AWG
Wire Connectors
482687
MFG #: BT2-500JR
IDEAL®
11.21000
/ ea
The B-Twist™ Wire Connector combines all of the features of red and yellow wing-style wire connectors in oneunique design.
- Brochure URL - 11020_NUW18Z39S4VCRXGA.pdf(Brochure URL)
- http://www.idealindustries.com(Seller Home Page URL)
- Material Composition - US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF(Material Composition)
- Safety Data Sheet URL - b-twist_msds.pdf(Safety Data Sheet URL)
- Spec Sheet 1 URL - BUCHANAN_BT2_500JR_Datasheet_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - b-wing-nut-wire-connectors.aspx(Spec Sheet URL)
- Warranty URL - IDEAL_84_018_Warranty.pdf(Warranty URL)
- Applications
- Features
| Insulating or Joining 1 or more conductors |
| Features: Wide Red/Yellow Wire Range; Min. 2 #18 To Max. 2 #8; Rounded Dial-Top Provides Fast Fingertip Starts; Square-Wire Spring Provides Quick, Secure Connections; Comfortable Swept-Wing Design With Deep Skirt To Help Protect Over-Stripped Wires; Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 Degree C (221 Degree F); UL Listed To 486C And CSA Certified To C22.2 #188; Comply With Federal Specification W-S-610E; 1,000V Maximum In Fixtures And Signs; Model Number: BT2 |
| Square-wire spring brings connection to torque quickly to get the job done efficiently provides quick, secure connections |
| Rounded dial-top with vertical ribs provides fast fingertip starts |
| Comfortable, long, swept wings offer high torque in a low profile design |
| Wide, expanding spring make for easy starts on even the largest combinations |
| Deep skirt helps protect against flash-over |
| Spring design easily accepts large wire combinations |
| 1000 V maximum in fixtures and signs |
| 1 - 6 conductors, (2) 18 AWG - (2) 8 AWG wire combinations |
| 500/Jar |
