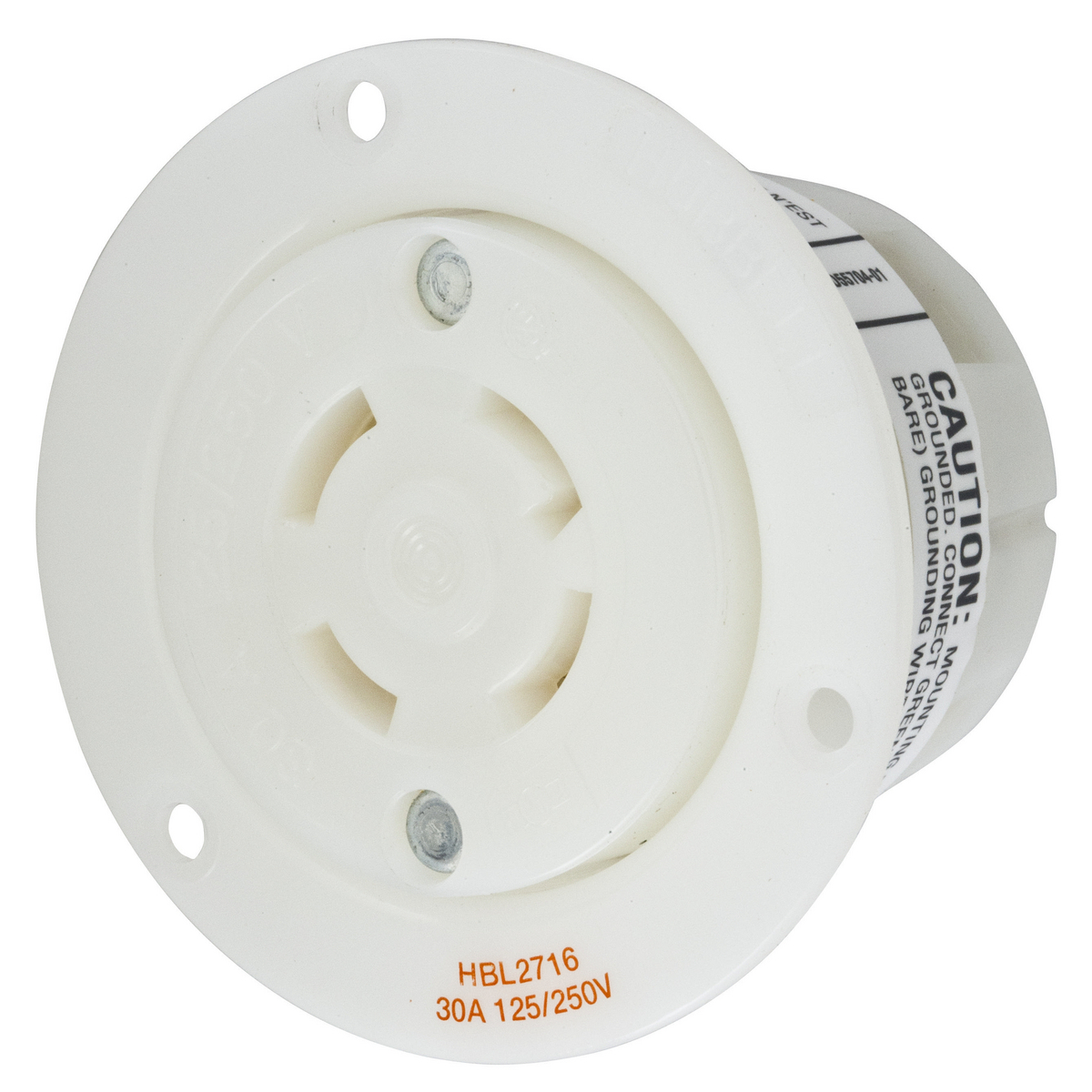

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2716 Flanged Single Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, White
Locking Receptacles
26328
MFG #: HBL2716
Hubbell Wiring Device-Kellems
81.43000
/ ea
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_4LKYG93VRFZ81UN5.pdf(Install Instructions 1 URL)
- Tech Drawing URL - WIRING_HBL2716_M7912_ACAD_DRAWING.dwg(Tech Drawing URL)
- Spec Sheet URL - 11456_DFT15VXO2LBINH0Y.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Line Drawing URL - 11456_RCQ3LGS9O0PAXUWI.pdf(Line Drawing URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #10-32 bronze terminal and ground screw |
| 10 AWG terminal accommodation |
| Certified for current interrupting at full rated current interrupting |
| Nickel plated brass round head screws mounting screw material |
| No 10-32 brass (white finish on neutral screw when used) multi-drive terminal screw no 10-32 brass (green finish) multi-drive ground screw |
| Dielectric voltage withstand is 2000 V minimum |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
