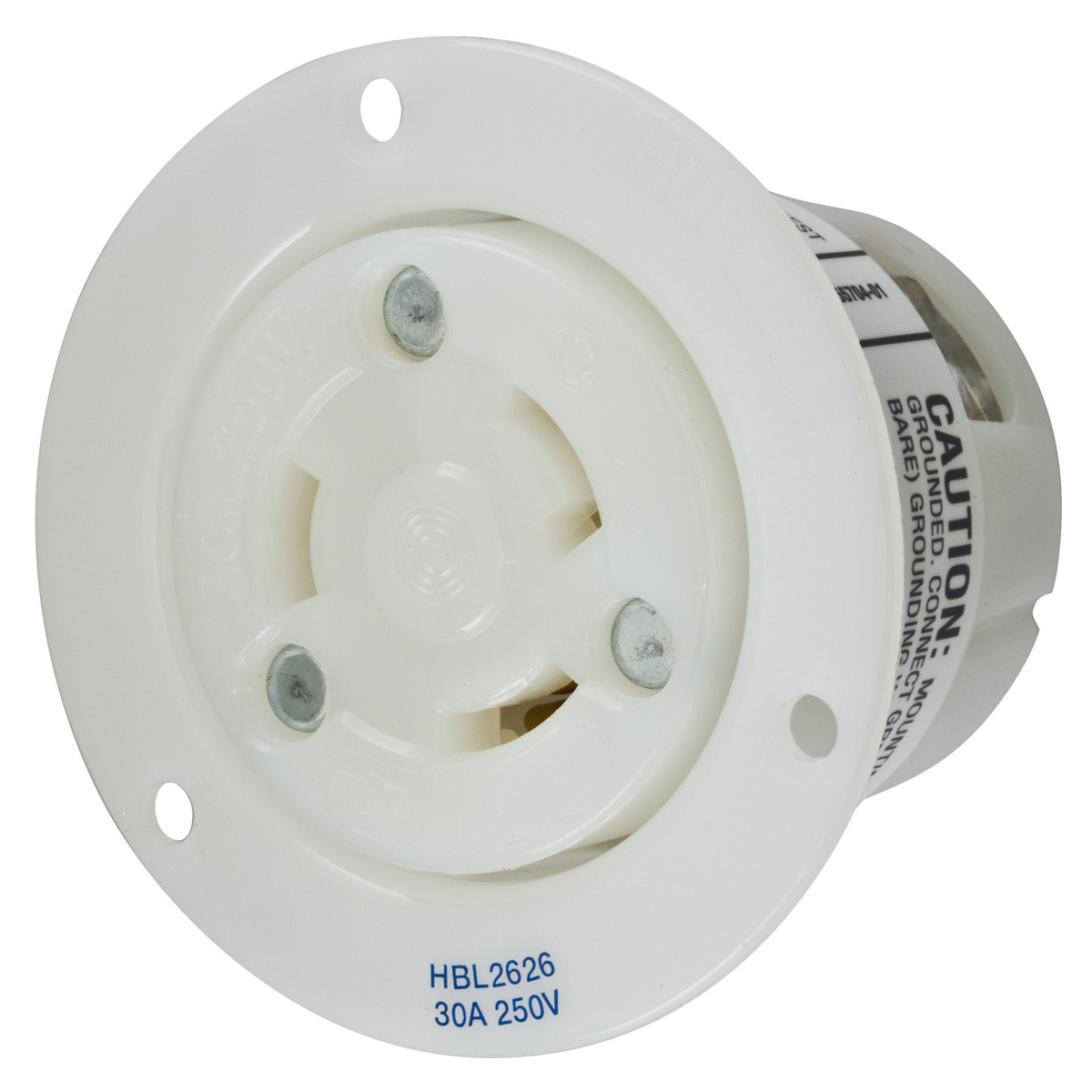

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2626 Flanged Grounding Single Locking Receptacle, 250 VAC, 30 A, 2 Poles, 3 Wires, White
Locking Receptacles
26320
MFG #: HBL2626
Hubbell Wiring Device-Kellems
70.05000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL20403_Catalog.pdf(Catalog URL)
- Full Eng Drawing URL - IDW_DOCUMENT_1487959876214.pdf(Full Eng Drawing URL)
- Install Instructions 1 URL - 11456_MO5V3GSCI2NRBA1W.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1257_INSTALLINST.pdf(Install Instructions 1 URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Line Drawing URL - 11456_CY1TV2MUBOQ8DJN9.pdf(Line Drawing URL)
- Spec Sheet URL - WIRING_HBL2626_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL2626_M7911_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Spec Sheet URL - 11456_BPAF8IDJXNG0W4YZ.pdf(Spec Sheet URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Line Drawing URL - WDK_HBL2626_DRAWING_PDF.pdf(Line Drawing URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| Withstands 2000 VAC dielectric voltage |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| #10-32 bronze terminal and ground screw |
| 10 AWG terminal accommodation |
| Certified for current interrupting at full rated current interrupting |
| Nickel plated brass round head screws mounting screw material |
| Brass terminal screw material, ground screw material, contact spring material, spring binding plate material, ground contact material |
| Natural white nylon body contact carrier material, flanged casing material |
| TPE dust seal surrounds cord to help prevent moisture and contaminants from entering wiring chamber |
