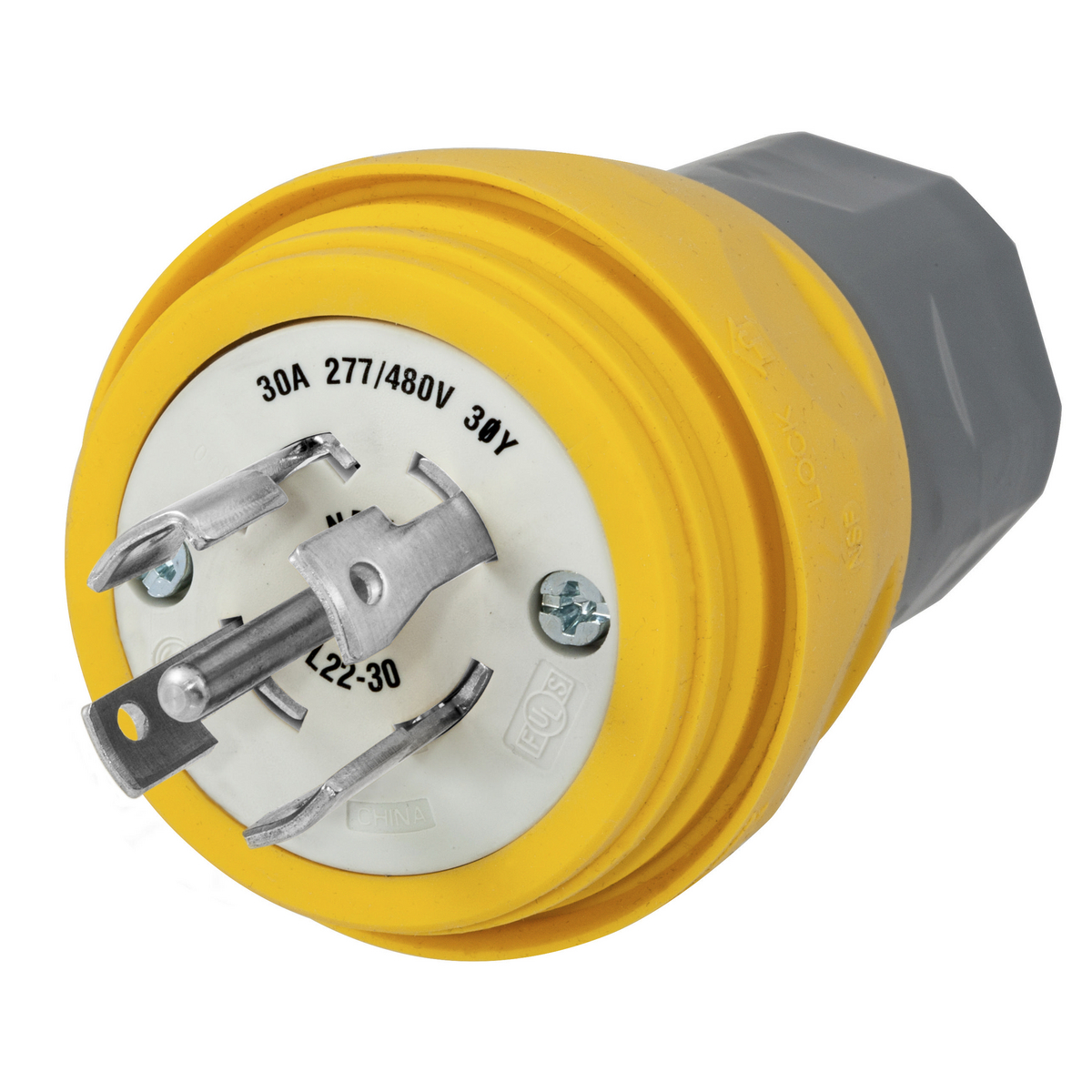

Hubbell Wiring Device-Kellems Twist-Lock® HBL28W82 3-Phase Grounding Male Standard Locking Plug, 277/480 VAC, 30 A, 4 Poles, 5 Wires, Yellow/White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems Twist-Lock® HBL28W82 3-Phase Grounding Male Standard Locking Plug, 277/480 VAC, 30 A, 4 Poles, 5 Wires, Yellow/White
SKU919792
MFGR #HBL28W82
Your Cost: $97.72/ea
Wiring Device-Kellems Twist-Lock® Locking Plug, 3-Phase Grounding Male Standard, 277/480 VAC, 30 A, 4 Poles, 5 Wires, NEMA L22-30P, Commercial/Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Cord Dia, -40 to 60 deg C, Screw Terminal, Brass/Clear Polycarbonate/Composite/Thermoplastic Elastomer, Yellow/White, 2.77 in Dia x 3.94 in L
Wiring Device-Kellems Twist-Lock® Locking Plug, 3-Phase Grounding Male Standard, 277/480 VAC, 30 A, 4 Poles, 5 Wires, NEMA L22-30P, Commercial/Industrial Grade, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 1 in Cord Dia, -40 to 60 deg C, Screw Terminal, Brass/Clear Polycarbonate/Composite/Thermoplastic Elastomer, Yellow/White, 2.77 in Dia x 3.94 in L
Application Industrial/Commercial ARRA Compliant C Buy American Compliant C Catalog Number HBL28W82 Connection Screw Terminals Cord Diameter 3/8 to 1 in Cord Type All Portable Country of Origin PR Currency USD Dimensions 2.77 in Dia x 3.94 in L Enclosure NEMA 4/4X/6P/IP65/IP66/IP67 Environmental Conditions Watertight EU RoHS Indicator C Grade Commercial/Industrial Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.36 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.76 in Height [Metric] 7.0104 cm Length 14.50 in Length [Metric] 36.8300 cm Material Elastomeric/Composite Mounting Cord Mounted NEMA Rating L22-30P Number Of Poles 4 Phase 3 Returnable N Size 2.77 in x 2.77 in x 3.94 in Standard Meets NEMA WD-1, WD-6 And ANSI Standards Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1WD6 Sub Brand Twist-Lock Temperature Rating -40 to 60 °C Terminal Type Screw Type Plugs UNSPSC 39121402 UPC 11 78358513177 UPC 12 783585131771 Width 9.00 in Width [Metric] 22.8600 cm Wire Size Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 30 A Color Yellow Number of Wires 5 Voltage Rating 3-Phase Y 277/480 VAC Industrial/Commercial Watertight Smooth body design minimizes collection points simplifying the wash down process Strain relief nut always seals on the body, minimizing debris collection Stainless steel hardware and corrosion resistant connection points Water and dusttight housing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Industrial/Commercial |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL28W82 |
| Connection | Screw Terminals |
| Cord Diameter | 3/8 to 1 in |
| Cord Type | All Portable |
| Country of Origin | PR |
| Currency | USD |
| Dimensions | 2.77 in Dia x 3.94 in L |
| Enclosure | NEMA 4/4X/6P/IP65/IP66/IP67 |
| Environmental Conditions | Watertight |
| EU RoHS Indicator | C |
| Grade | Commercial/Industrial |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.36 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.76 in |
| Height [Metric] | 7.0104 cm |
| Length | 14.50 in |
| Length [Metric] | 36.8300 cm |
| Material | Elastomeric/Composite |
| Mounting | Cord Mounted |
| NEMA Rating | L22-30P |
| Number Of Poles | 4 |
| Phase | 3 |
| Returnable | N |
| Size | 2.77 in x 2.77 in x 3.94 in |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1WD6 |
| Sub Brand | Twist-Lock |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC 11 | 78358513177 |
| UPC 12 | 783585131771 |
| Width | 9.00 in |
| Width [Metric] | 22.8600 cm |
| Wire Size | Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 30 A |
| Color | Yellow |
| Number of Wires | 5 |
| Voltage Rating | 3-Phase Y 277/480 VAC |
| Industrial/Commercial |
| Watertight |
| Smooth body design minimizes collection points simplifying the wash down process |
| Strain relief nut always seals on the body, minimizing debris collection |
| Stainless steel hardware and corrosion resistant connection points |
| Water and dusttight housing |
