Hubbell Wiring Device-Kellems

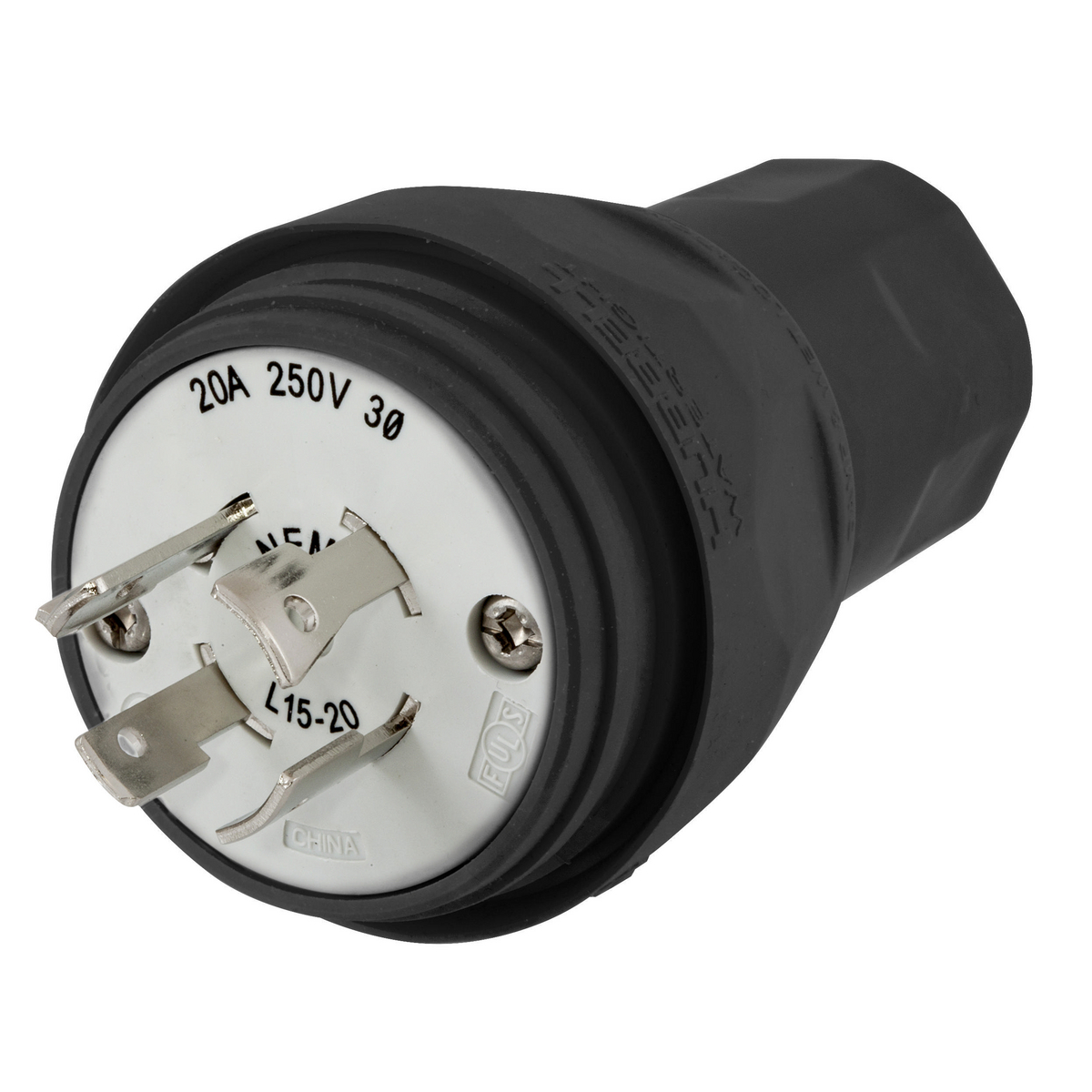

Hubbell Wiring Device-Kellems Twist-Lock® HBL26W75BK 3-Phase Grounding Male Watertight Locking Plug, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
Hubbell Wiring Device-Kellems Twist-Lock® HBL26W75BK 3-Phase Grounding Male Watertight Locking Plug, 250 VAC, 20 A, 3 Poles, 4 Wires, Black/White
SKU1052442
MFGR #HBL26W75BK
Your Cost: $70.37/ea
Wiring Device-Kellems Twist-Lock® Locking Plug, 3-Phase Grounding Male Watertight, 250 VAC, 20 A, 3 hp, 3 Poles, 4 Wires, NEMA L15-20P, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, Brass/Clear Polycarbonate/Thermoplastic Elastomer, Black/White, 2.51 in Dia x 3.96 in L
Wiring Device-Kellems Twist-Lock® Locking Plug, 3-Phase Grounding Male Watertight, 250 VAC, 20 A, 3 hp, 3 Poles, 4 Wires, NEMA L15-20P, NEMA 4/4X/6P/IP65/IP66/IP67 Enclosure, 3/8 to 7/8 in Cord Dia, -40 to 60 deg C, Screw Terminal, Brass/Clear Polycarbonate/Thermoplastic Elastomer, Black/White, 2.51 in Dia x 3.96 in L
ARRA Compliant C Buy American Compliant C Catalog Number HBL26W75BK Cord Diameter 3/8 to 7/8 in Country of Origin CN Currency USD Dimensions 2.51 in Dia X 3.96 in L Enclosure NEMA 4/4X/6P/IP65/IP66/IP67 EU RoHS Indicator C Gross Weight Per Pack 0.3000 lb Gross Weight per Pack Metric 0.14 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536694020 Height 2.50 in Height [Metric] 6.3500 cm Horsepower 3 hp Length 15.30 in Length [Metric] 38.8620 cm Material Brass/Clear Polycarbonate/Thermoplastic Elastomer NEMA Rating L15-20P Number Of Poles 3 Returnable N Size 2.51 in x 2.51 in x 3.96 in Standard Meets NEMA WD-1, WD-6 And ANSI Standards Standards ANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1/WD6RoHS CompliantARRA CompliantBuy American Act Compliant Temperature Rating -40 to 60 °C Terminal Type Screw Type Plugs UNSPSC 39121402 UPC 11 78358545631 UPC 12 783585456317 Width 8.90 in Width [Metric] 22.6060 cm Wire Size Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Amperage Rating 20 A Color Black Number of Wires 4 Voltage Rating 3 Phase 250 VAC Smooth body design minimizes collection points simplifying the wash down process Strain relief nut always seals on the body, minimizing debris collection Stainless steel hardware and corrosion-resistant connection points Water and dust tight housing
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Media
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HBL26W75BK |
| Cord Diameter | 3/8 to 7/8 in |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 2.51 in Dia X 3.96 in L |
| Enclosure | NEMA 4/4X/6P/IP65/IP66/IP67 |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3000 lb |
| Gross Weight per Pack Metric | 0.14 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536694020 |
| Height | 2.50 in |
| Height [Metric] | 6.3500 cm |
| Horsepower | 3 hp |
| Length | 15.30 in |
| Length [Metric] | 38.8620 cm |
| Material | Brass/Clear Polycarbonate/Thermoplastic Elastomer |
| NEMA Rating | L15-20P |
| Number Of Poles | 3 |
| Returnable | N |
| Size | 2.51 in x 2.51 in x 3.96 in |
| Standard | Meets NEMA WD-1, WD-6 And ANSI Standards |
| Standards | ANSI SpecifiedUL 498CSA C22.2 No. 42NEMA WD1/WD6RoHS CompliantARRA CompliantBuy American Act Compliant |
| Temperature Rating | -40 to 60 °C |
| Terminal Type | Screw |
| Type | Plugs |
| UNSPSC | 39121402 |
| UPC 11 | 78358545631 |
| UPC 12 | 783585456317 |
| Width | 8.90 in |
| Width [Metric] | 22.6060 cm |
| Wire Size | Min. Cord: 16/3 SJ, 18/3 S, 18/4 SJ, 18/4 S, 18/5 S;Max. Cord: 10/3 S, 10/4 S, 10/5 S |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Amperage Rating | 20 A |
| Color | Black |
| Number of Wires | 4 |
| Voltage Rating | 3 Phase 250 VAC |
| Smooth body design minimizes collection points simplifying the wash down process |
| Strain relief nut always seals on the body, minimizing debris collection |
| Stainless steel hardware and corrosion-resistant connection points |
| Water and dust tight housing |
