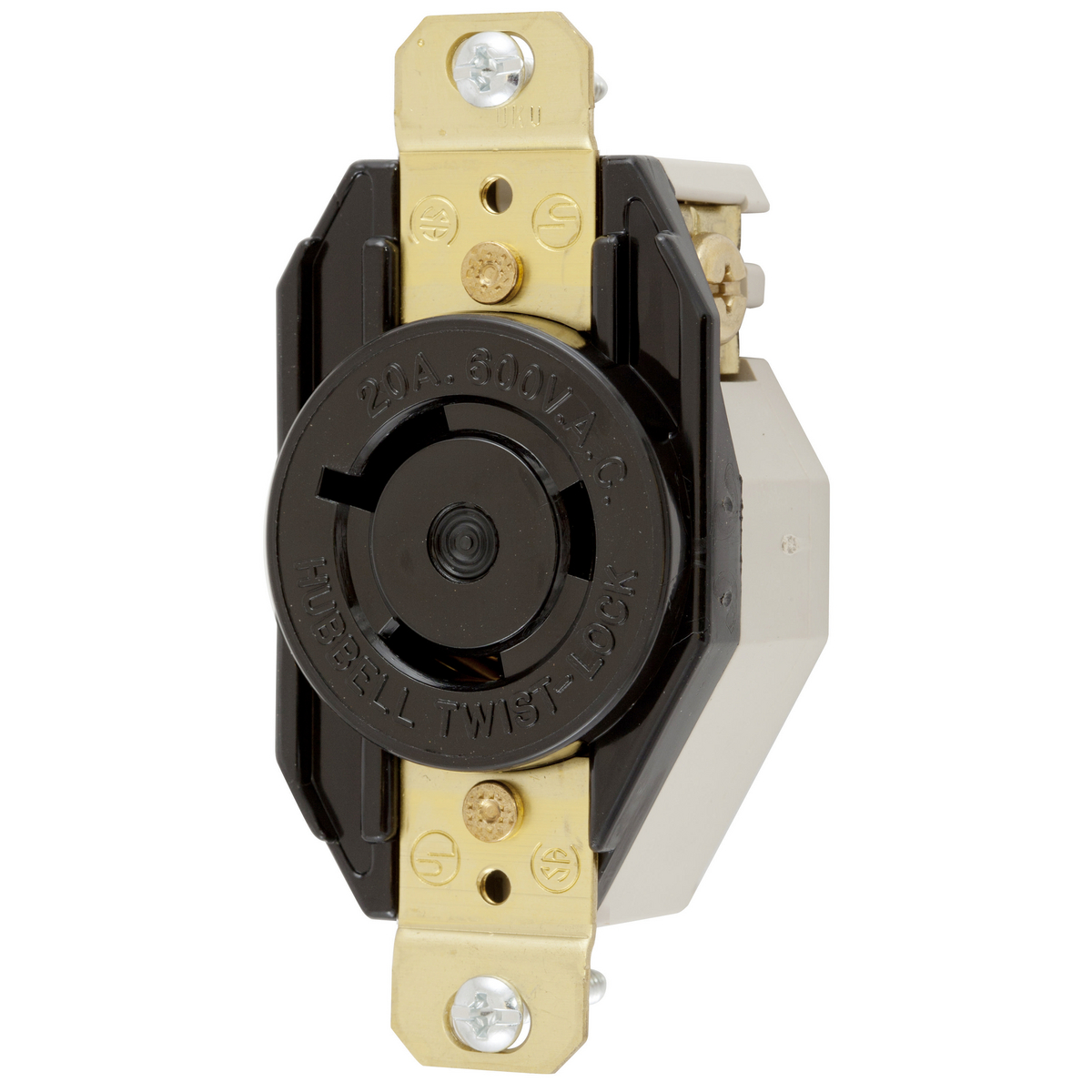

Hubbell Wiring Device-Kellems Twist-Lock® HBL2350 Flush Mount Heavy Duty Grounding Standard Single Locking Receptacle, 600 VAC, 20 A, 2 Poles, 3 Wires, Black
Locking Receptacles
26587
MFG #: HBL2350
Hubbell Wiring Device-Kellems
50.94000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Spec Sheet URL - 11456_GV7LPTNF6B10MJ2D.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL2350_M6469_ACAD_DRAWING.dwg(Tech Drawing URL)
- Install Instructions 1 URL - 11456_KX4Y5SDJ37G6VCI1.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_P09LJ3ERFSGID1N8.pdf(Line Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| All brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems |
| Face color coding by voltage facilitates locating and mating of proper devices |
| Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection |
| 0.04 in (1) brass terminal clamp material |
| #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw material |
| 0.04 in brass contact spring, ground contact and back plate material, 0.05 in brass bridge (mounting strap) material |
| Brass rivet |
| Steel, zinc plated mounting screw material |
| Black nylon cover (top), nylon polyester base material |
| 2000 VAC minimum dielectric voltage withstand |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 14 to 8 AWG copper only terminal accommodation |
