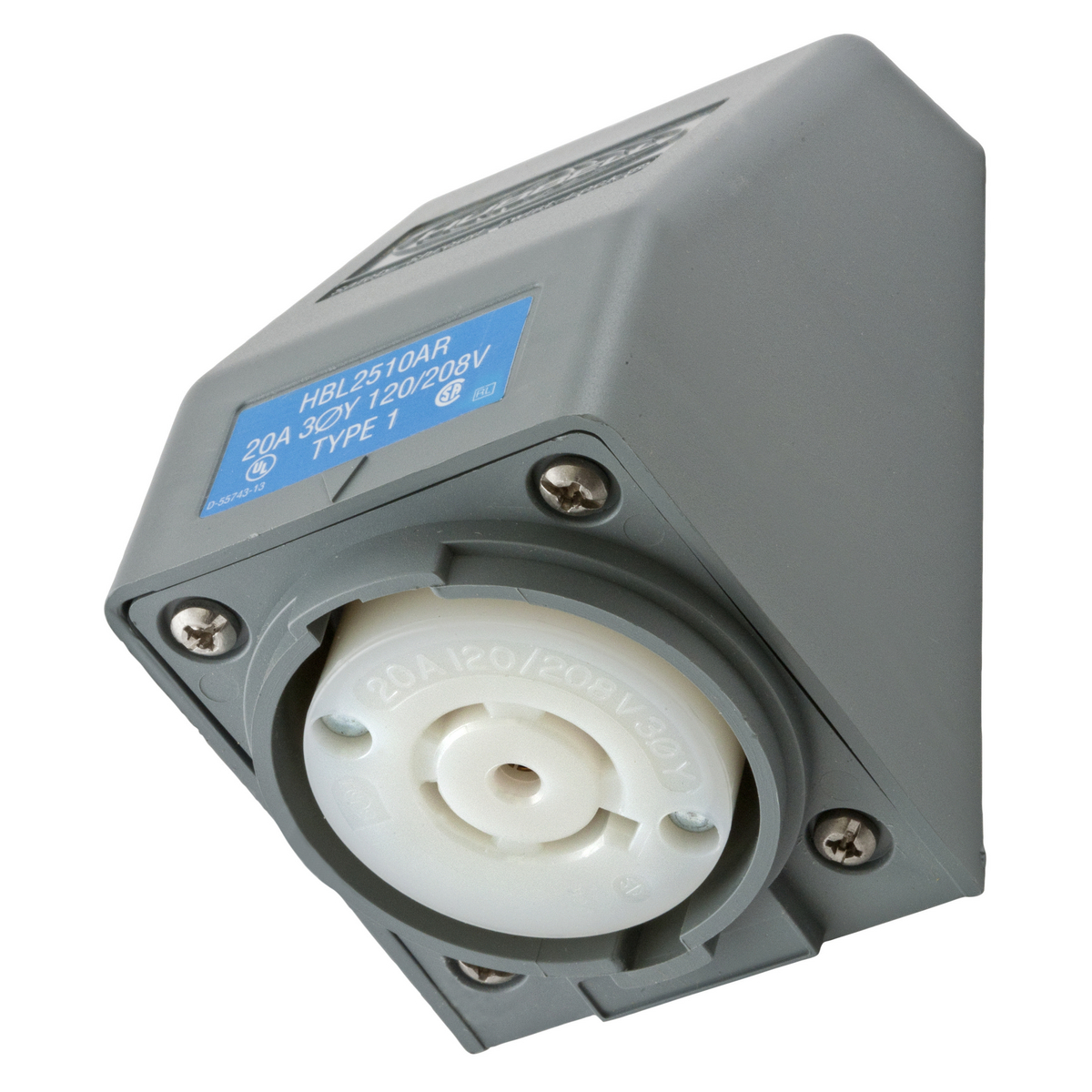

Hubbell Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2510AR 3-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Locking Receptacle, 120/208 VAC, 20 A, 4 Poles, 5 Wires, Gray/White
Locking Receptacles
145598
MFG #: HBL2510AR
Hubbell Wiring Device-Kellems
63.01000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Spec Sheet URL - 11456_IWP9CXD8642F1VU5.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL2510AR_M7368_ACAD_DRAWING.dwg(Tech Drawing URL)
- Install Instructions 1 URL - 11456_8YFQ0LDAK54OXJ6U.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_LMHVBGIPX76EZ9JD.pdf(Line Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial Shrouded |
| Angled Housing |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| 5-wire grounding |
| UL 94 VO for receptacles and inlets, HB or better for plugs and connectors flammability |
| 14 to 8 AWG copper only terminal accommodation |
| NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| Zinc plated steel mounting screws |
| 0.031 in brass ground contact |
| Natural white nylon body contact carrier material |
| Steel rivet material |
| Steel, nickel plated 0.08 in curved, scalloped terminal clamp material |
| Gray Valox® 357U housing and flange material |
| Galvanized steel mounting plate material |
| 3-phase |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are easily visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
