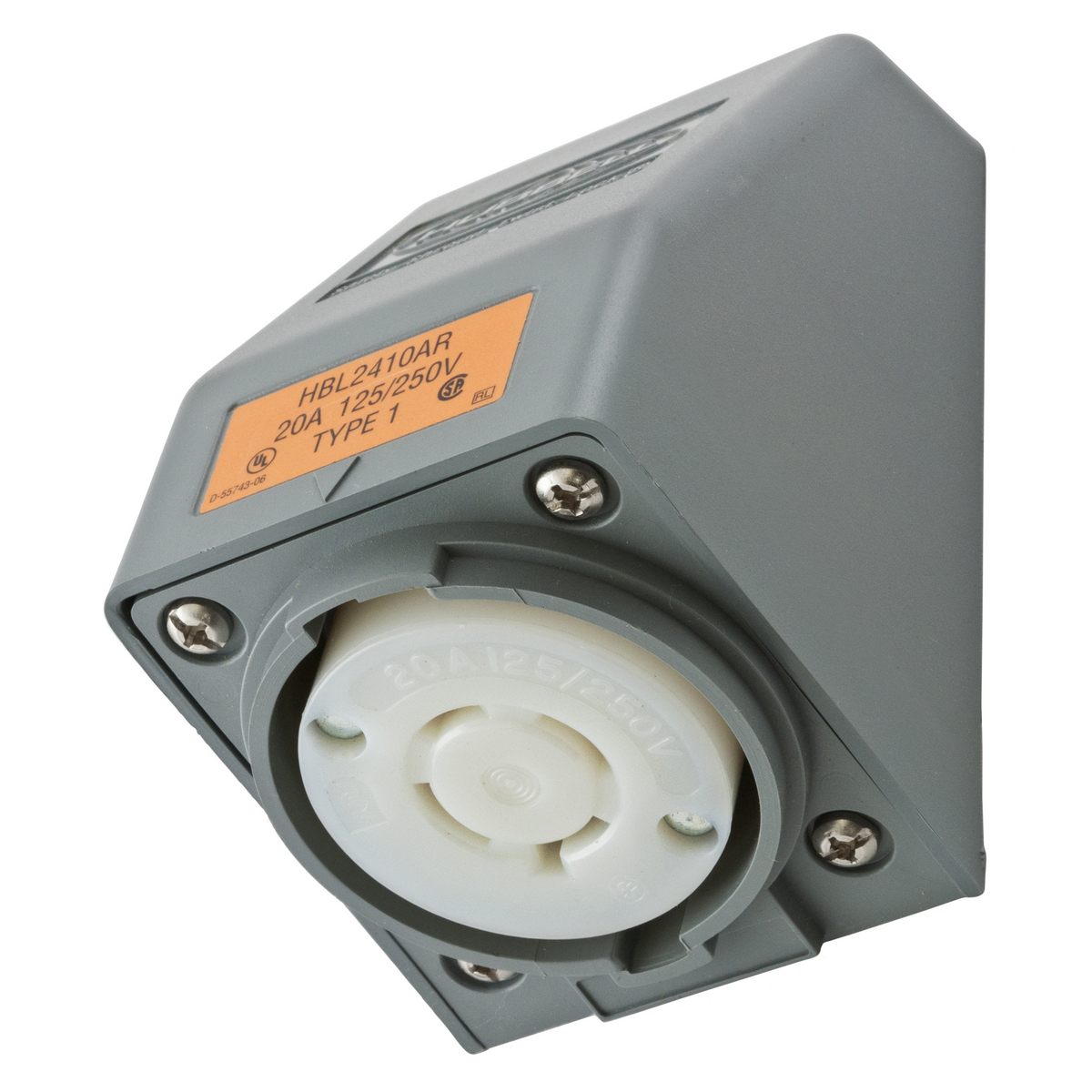

Hubbell Wiring Device-Kellems Safety-Shroud® Twist-Lock® HBL2410AR 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Locking Receptacle, 125/250 VAC, 20 A, 3 Poles, 4 Wires, Gray/White
Locking Receptacles
268216
MFG #: HBL2410AR
Hubbell Wiring Device-Kellems
57.02000
/ ea
- Catalog URL - HUBBELL_HBL2410AR_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_8YFQ0LDAK54OXJ6U.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11456_85WKP2CQH3F1S7IJ.pdf(Spec Sheet URL)
- Line Drawing URL - 11456_LVSMOQ7KYCD96WJE.pdf(Line Drawing URL)
- Tech Drawing URL - WIRING_HBL2410AR_M7368_ACAD_DRAWING.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial Shrouded |
| Angled Housing |
| 2000 VAC minimum dielectric voltage withstand |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| 4-wire grounding |
| HB or better per UL 94 or CSA 2.2 No. 0.6 flammability |
| 14 to 8 AWG copper only terminal accommodation |
| NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| Zinc plated steel mounting screws |
| 0.031 in brass ground contact |
| Natural white nylon body contact carrier material |
| Steel rivet material |
| Steel, nickel plated 0.08 in curved, scalloped terminal clamp material |
| Gray Valox® 357U housing and flange material |
| Galvanized steel mounting plate material |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are easily visible even when in use |
| Engineered thermoplastic housing is impact and corrosion-resistant, making it suitable for heavy duty industrial environments |
