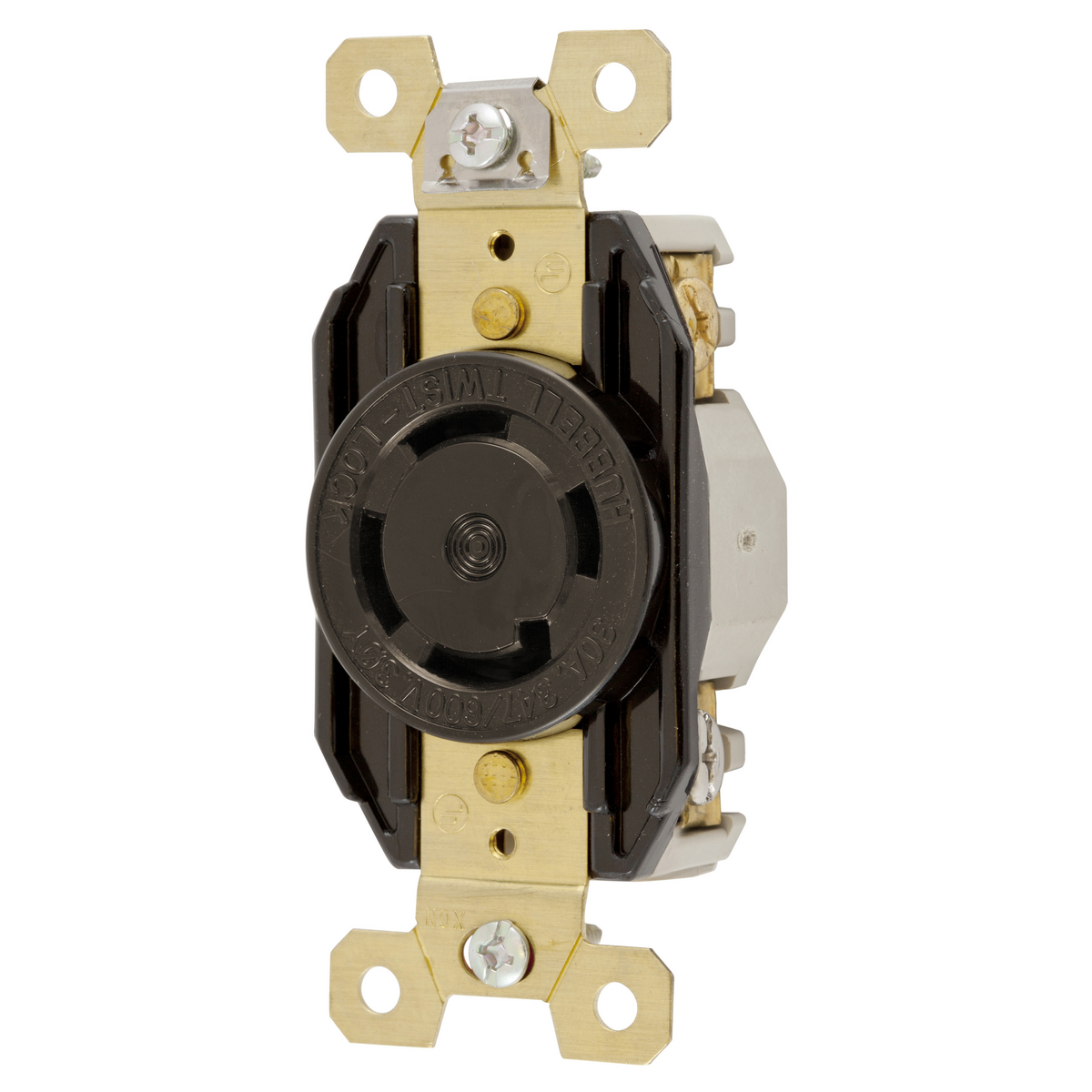

Hubbell Wiring Device-Kellems HCI HBL2770 LKG RCPT, 30A 3PH 347/6
Locking Receptacles
26609
MFG #: HBL2770
Hubbell Wiring Device-Kellems
84.53000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Spec Sheet URL - 11456_9UHK2LJM3B1FWIXZ.pdf(Spec Sheet URL)
- Install Instructions 1 URL - 11456_KX4Y5SDJ37G6VCI1.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537663235642.pdf(Install Instructions URL)
- Line Drawing URL - 11456_JR0HUFVN4GA16KQS.pdf(Line Drawing URL)
- Tech Drawing URL - WIRING_HBL2770_M6474_ACAD_DRAWING.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| 2000 VAC minimum dielectric voltage withstand |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| 4-wire non-grounding |
| HB or better per UL 94 or CSA 22.2 no. 0.6 flammability |
| 20 A 12 AWG terminal accommodation |
| NO 10 to 32 bronze (white finish on neutral screw when used) terminal screw |
| Zinc plated steel mounting screws |
| 0.04 in brass ground contact |
| Brass rivet |
| 0.04 in brass terminal clamp material |
| 0.04 in brass back plate housing and flange |
| Stainless steel auto ground clip mounting plate material |
| 3-phase |
| High impact, abuse resistant nylon face |
| Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection |
| Face color coding by voltage facilitates locating and mating of proper devices |
| All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems |
