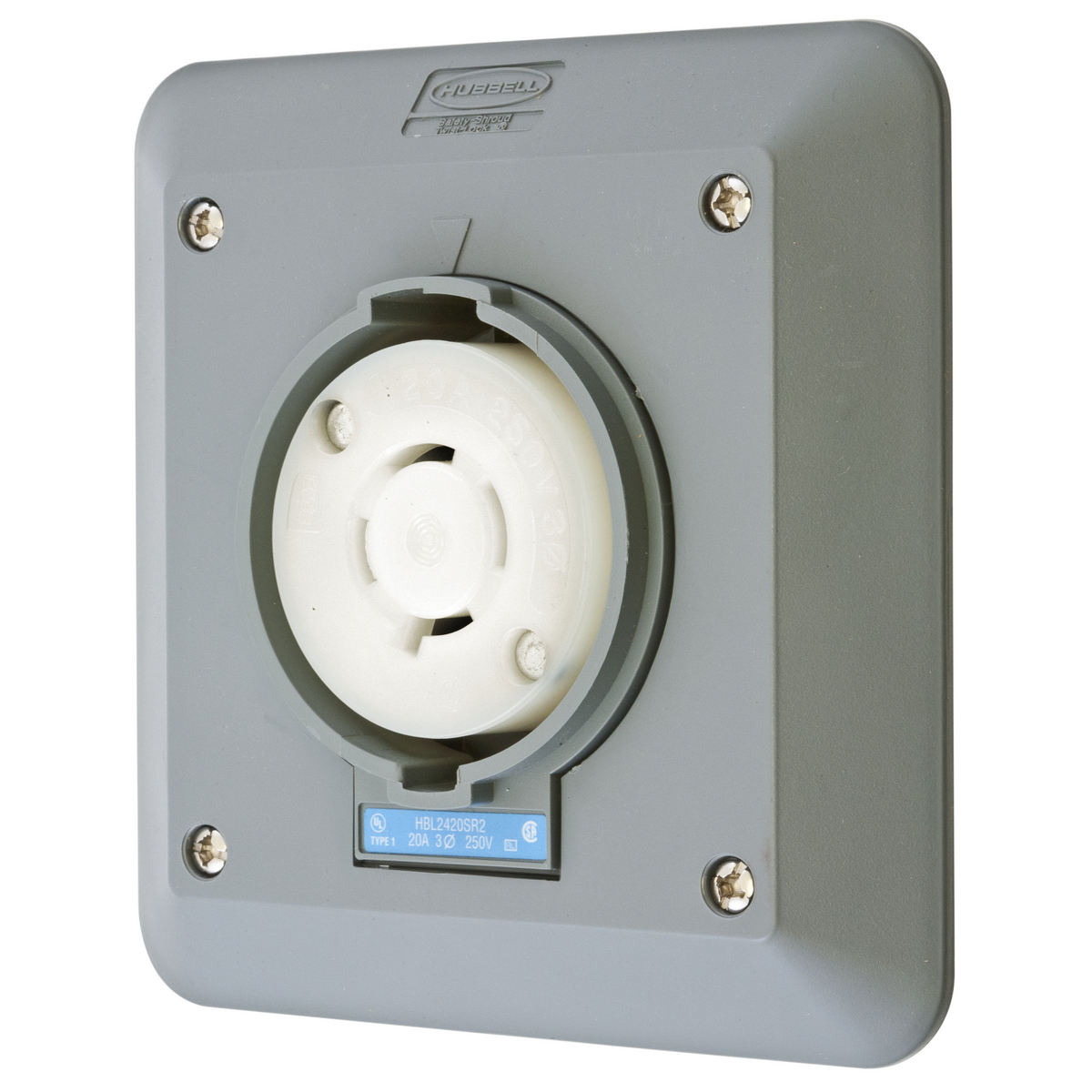

Hubbell Wiring Device-Kellems HCI HBL2420SR2 LKG S/SHRD RCPT, L15
Locking Receptacles
253446
MFG #: HBL2420SR2
Hubbell Wiring Device-Kellems
57.57000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_AB8I95H3QU17LFYM.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11456_MEPZTGDJNF39XRO7.pdf(Spec Sheet URL)
- Line Drawing URL - 11456_FS3U0OI2BXRD976N.pdf(Line Drawing URL)
- Install Instructions URL - IDW_DOCUMENT_1537664327482.pdf(Install Instructions URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Tech Drawing URL - IDW_DOCUMENT_1537662130469.pdf(Tech Drawing URL)
- Applications
- Features
| Heavy Duty Industrial Shrouded |
| 2-Gang Surface Mount |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
| 2-gang surface mount |
| Terminals identified in accordance with UL 498 |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 4-wire grounding |
| Impact modified PBT housing |
| HB or better per UL 94 or CSA 22.2 no. 0.6 flammability |
| 20 A 12 AWG terminal accommodation |
| NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| Zinc plated brass mounting screw material |
| 0.031 in brass ground contact |
| Natural white nylon body contact carrier material |
| Steel rivet material |
| Steel, nickel plated 0.08 in curved, scalloped terminal clamp material |
| Gray Valox® 357U housing and flange material |
| Galvanized steel mounting plate material |
| 3-phase |
