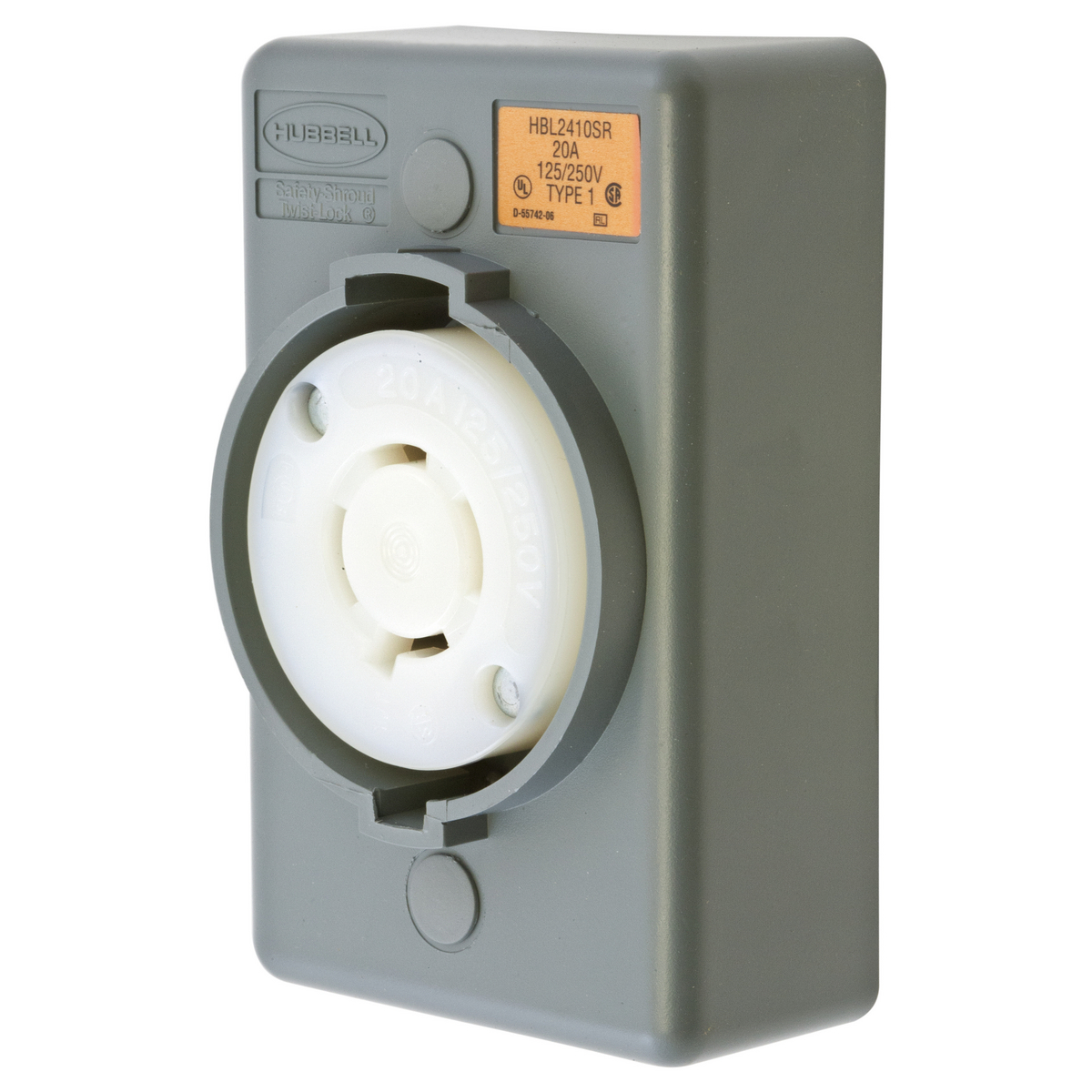

Hubbell Wiring Device-Kellems HCI HBL2410SR LKG S/SHRD RCPT, L14-
Locking Receptacles
313620
MFG #: HBL2410SR
Hubbell Wiring Device-Kellems
57.02000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions URL - Wiring_Device_Kellems_HBL2410SR_Installation_Sheet.pdf(Install Instructions URL)
- Install Instructions 1 URL - 11456_W2JBCSRE851V7QGI.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1290_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_MT3COG6YH5JVUPLW.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL2410SR_DRAWING_PDF.pdf(Line Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Tech Drawing URL - IDW_DOCUMENT_1537665169481.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL2410SR_M7367_ACAD_DRAWING.dwg(Tech Drawing URL)
- Spec Sheet URL - 11456_1WYKNE85MUGHSA2I.pdf(Spec Sheet URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Spec Sheet URL - WIRING_HBL2410SR_spec.pdf(Spec Sheet URL)
- Applications
- Features
| Heavy Duty Industrial Shrouded |
| Surface Mount |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
| Surface mount |
| 4-wire grounding |
| HB or better per UL 94 or CSA 2.2 no. 0.6 flammability |
| 14 to 8 AWG copper only terminal accommodation |
| NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| Zinc plated steel mounting screws |
| 0.031 in brass ground contact |
| Natural white nylon body contact carrier material |
| Steel rivet material |
| Steel, nickel plated 0.08 in curved, scalloped terminal clamp material |
| Gray Valox® 357U housing and flange material |
| Galvanized steel mounting plate material |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are easily visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
