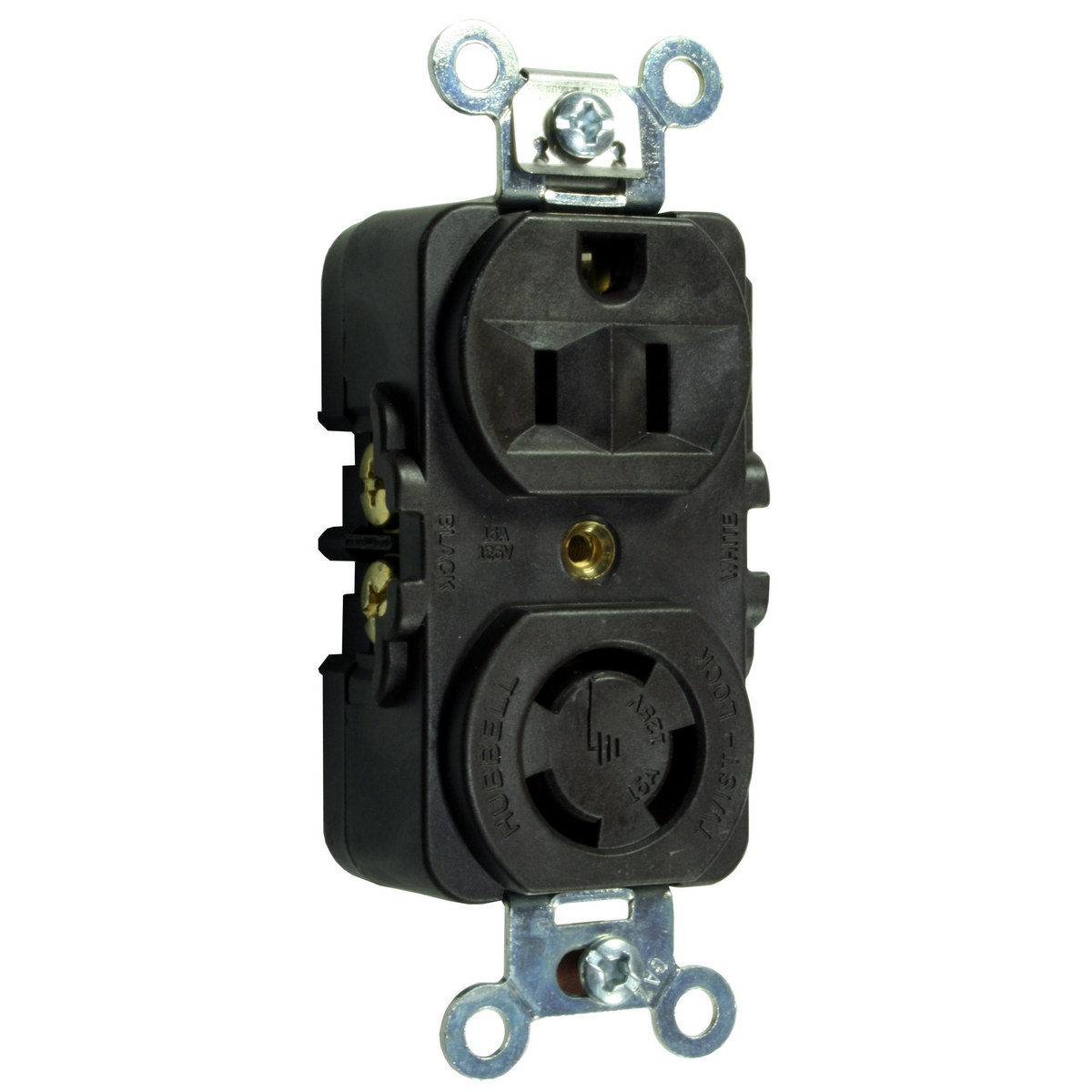

Hubbell Wiring Device-Kellems HBL7371 2-Feed 1-Return Special Combination Duplex Heavy Duty Grounding Standard Locking Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Black
Locking Receptacles
751233
MFG #: HBL7371
Hubbell Wiring Device-Kellems
74.82000
/ ea
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_BT89HIWK2LAGZQSO.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11456_79OH5NQ6XVSRPLZ1.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Line Drawing URL - 11456_SWHJAB40DL36F1IU.pdf(Line Drawing URL)
- Tech Drawing URL - WIRING_HBL7371_M4394_ACAD_DRAWING.dwg(Tech Drawing URL)
- Applications
- Features
| Heavy Duty |
| Standard |
| Straight blade devices |
| Indoor dry unless protected by additional means |
| Screw mount |
| 14 to 12 AWG wire |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| Terminals identified in accordance with UL498 (brass, white, green). |
| 14 to 10 AWG copper stranded or solid conductor only terminal accommodation |
| Withstands 2000 VAC minimum dielectric voltage |
| Finder groove face style |
| Stainless steel auto ground clip |
| 0.032 in brass power contacts |
| 0.05 in plated steel mounting strap |
| RTP base |
| RTP cover (top) |
