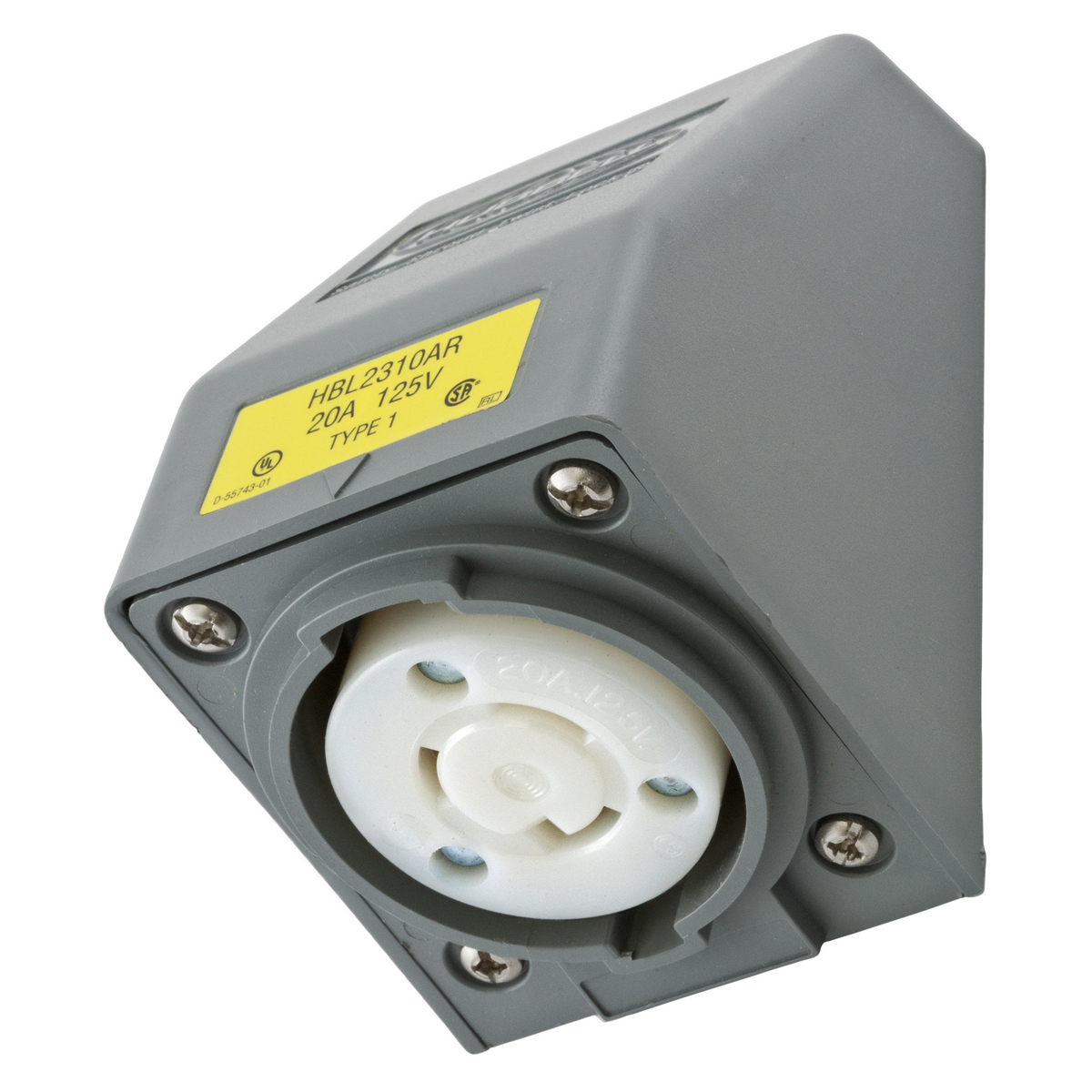

Hubbell Wiring Device-Kellems HBL2310AR LKG S/SHRD RCPT, L5-
Locking Receptacles
316159
MFG #: HBL2310AR
Hubbell Wiring Device-Kellems
41.15000
/ ea
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_8YFQ0LDAK54OXJ6U.pdf(Install Instructions 1 URL)
- Spec Sheet 2 URL - Wiring_Device_Kellems_HBL2310AR_Datasheet_2.pdf(Spec Sheet 2 URL)
- Spec Sheet URL - 11456_CRI92XKBPL17ETQY.pdf(Spec Sheet URL)
- Line Drawing URL - 11456_CFXPVM7L10OTYER4.pdf(Line Drawing URL)
- Install Instructions URL - IDW_DOCUMENT_1487177534917.pdf(Install Instructions URL)
- Tech Drawing URL - WIRING_HBL2310AR_M7368_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial Shrouded |
| Angled Housing |
| Accepts Hubbell shrouded and standard NEMA locking plugs |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
| 0.08 in steel, curved, scalloped, nickel plated terminal clamp, #10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw, green finish multi-drive ground screw material, Steel, zinc plated multi-drive cord clamp screw arterial and body holding screw material |
| Natural white nylon body material |
| 0.031 in brass contact spring and spring binding plate and ground contact material |
| Steel, zinc plated mounting screw material |
| Steel rivet material |
| 2000 VAC minimum dielectric voltage withstand |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| 14 to 8 AWG copper only terminal accommodation |
