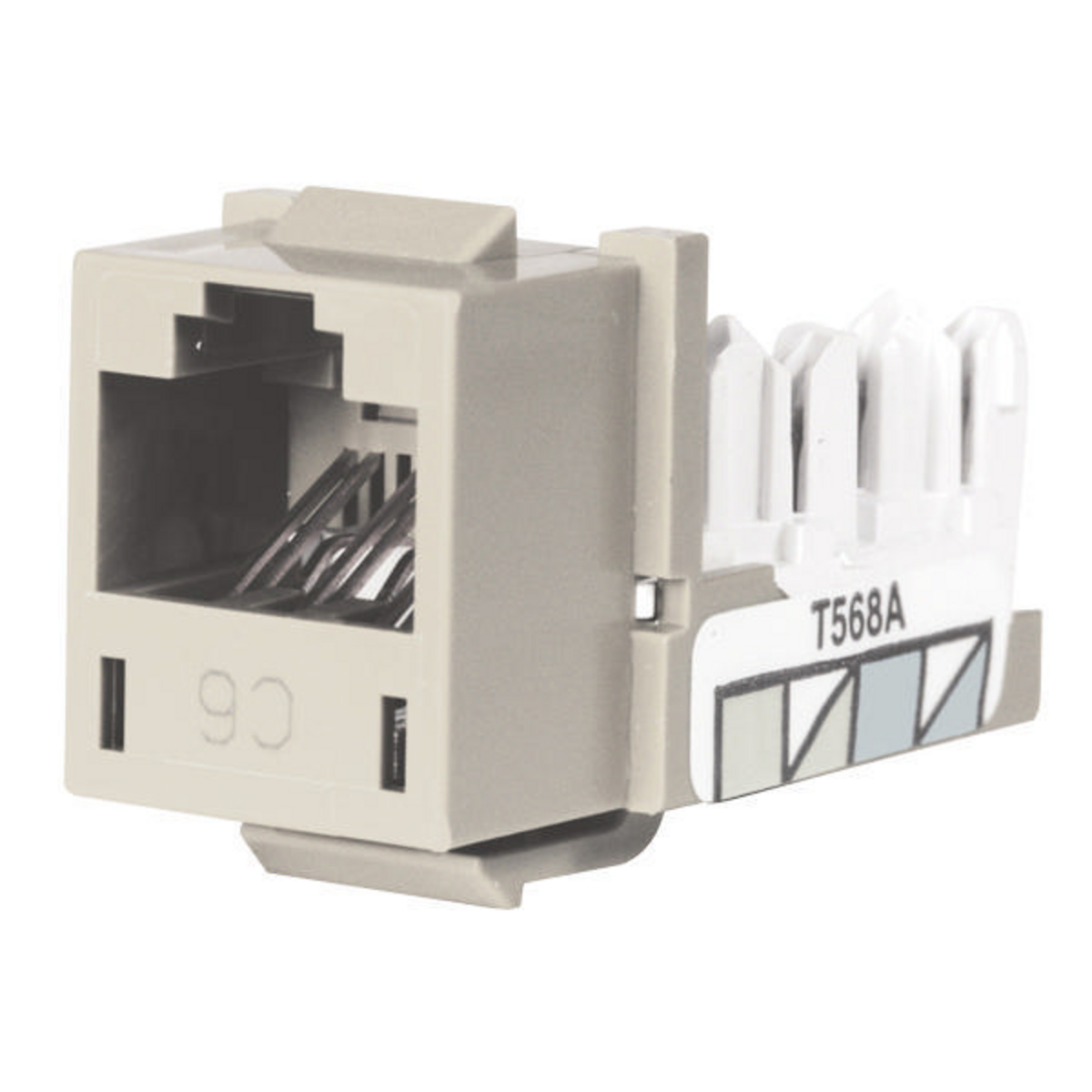

Hubbell Premise Wiring XCELERATOR™ HXJ6OW25 Modular Jack, Keystone Mount, Beryllium Copper/High Impact Thermoplastic
Custom_Product_Images_Illustration
Hubbell Premise Wiring XCELERATOR™ HXJ6OW25 Modular Jack, Keystone Mount, Beryllium Copper/High Impact Thermoplastic
SKUPDW~5015821
MFGR #HXJ6OW25
Your Cost: $199.71/pk
List: XCELERATOR™ Category 6 modular jacks (XJ6) deliver unmatched component performance. The XJ6 is the first modular jack to undergo extreme DTE Power testing to 4x the standard handling continuous DTE power, exceeding the IEEE 802.3af standard without failure or any substantial increase in temperature providing a migration path to PoE+ (30-60 Watts). The XJ6 supports today's network convergence protocols by delivering maximum bandwidth and extended reliability for all LAN, multimedia, IP-Video and PoE (Power over Ethernet) applications such as VoIP. The QuickLace® termination process combined with the exclusive 1-Punch tool delivers the fastest termination in the structured cabling industry. The innovative combination reduces termination time by 75% and provides a consistent termination every time. The XJ6 easily installs into all Hubbell iSTATION™ products, including rear-loading plates, front-loading modules and frames. XCELERATOR™ jacks can be used in multimedia configurations with our AV connectors customizing all workstations, consolidation points and telecommunication closets.
XCELERATOR™ Category 6 modular jacks (XJ6) deliver unmatched component performance. The XJ6 is the first modular jack to undergo extreme DTE Power testing to 4x the standard handling continuous DTE power, exceeding the IEEE 802.3af standard without failure or any substantial increase in temperature providing a migration path to PoE+ (30-60 Watts). The XJ6 supports today's network convergence protocols by delivering maximum bandwidth and extended reliability for all LAN, multimedia, IP-Video and PoE (Power over Ethernet) applications such as VoIP. The QuickLace® termination process combined with the exclusive 1-Punch tool delivers the fastest termination in the structured cabling industry. The innovative combination reduces termination time by 75% and provides a consistent termination every time. The XJ6 easily installs into all Hubbell iSTATION™ products, including rear-loading plates, front-loading modules and frames. XCELERATOR™ jacks can be used in multimedia configurations with our AV connectors customizing all workstations, consolidation points and telecommunication closets.
ARRA Compliant C Buy American Compliant C Catalog Number HXJ6OW25 Contact Beryllium Copper Contact Resistance Per TIA Country of Origin US Currency USD Dimensions 1.293 in H x 0.679 in W x 0.982 in D Environmental Conditions Indoor Dry unless protected by additional means EU RoHS Indicator Y Gross Weight Per Pack 0.3400 lb Gross Weight per Pack Metric 0.15 Gross Weight UOM Metric kg Height 1.60 in Height [Metric] 4.0640 cm Insertion Loss 2,000 Length 10.10 in Length [Metric] 25.6540 cm Replacement Catalog Number HXJ6OW24 Returnable Y Standard ANSI/TIA/EIA-568-C.2 Category 6 Component;ISO 11801/60603-7-41 Category 6 Component Standards ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2IEEE 802.3atcETLus ListedUL 1863CSA CertifiedISO 11801 Class EUL 94-V-0 Flammability Rating Temperature Rating Per TIA Type 8-Position Standard Universal A/B UNSPSC 39121444 UPC 11 66262082535 UPC 12 662620825359 Width 8.00 in Width [Metric] 20.3200 cm Stock Status NONSTOCK Brand Hubbell Premise Wiring Manufacturer Hubbell Color White Material Thermoplastic Module Type Cat 6, RJ45 Mounting Type Keystone Number of Ports 1 1000BASE-T Center balanced to Cat 6 plug specifications Positive PSACR beyond 300 MHz 4+Gbs capacity within the bandwidth of 1 to 250 MHz 2000+ mating cycles with FCC compliant 8-position plug Backwards compatible to Cat 3, 5 and 5e IDC pair splitting tower allows for minimum disruption to cable twist Compatible with standard 110 termination tools Hubbell universal keystone mounting Hubbell Icon compatible
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | HXJ6OW25 |
| Contact | Beryllium Copper |
| Contact Resistance | Per TIA |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1.293 in H x 0.679 in W x 0.982 in D |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.3400 lb |
| Gross Weight per Pack Metric | 0.15 |
| Gross Weight UOM Metric | kg |
| Height | 1.60 in |
| Height [Metric] | 4.0640 cm |
| Insertion Loss | 2,000 |
| Length | 10.10 in |
| Length [Metric] | 25.6540 cm |
| Replacement Catalog Number | HXJ6OW24 |
| Returnable | Y |
| Standard | ANSI/TIA/EIA-568-C.2 Category 6 Component;ISO 11801/60603-7-41 Category 6 Component |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantANSI/TIA-568-C.2IEEE 802.3atcETLus ListedUL 1863CSA CertifiedISO 11801 Class EUL 94-V-0 Flammability Rating |
| Temperature Rating | Per TIA |
| Type | 8-Position Standard Universal A/B |
| UNSPSC | 39121444 |
| UPC 11 | 66262082535 |
| UPC 12 | 662620825359 |
| Width | 8.00 in |
| Width [Metric] | 20.3200 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Premise Wiring |
| Manufacturer | Hubbell |
| Color | White |
| Material | Thermoplastic |
| Module Type | Cat 6, RJ45 |
| Mounting Type | Keystone |
| Number of Ports | 1 |
| 1000BASE-T |
| Center balanced to Cat 6 plug specifications |
| Positive PSACR beyond 300 MHz |
| 4+Gbs capacity within the bandwidth of 1 to 250 MHz |
| 2000+ mating cycles with FCC compliant 8-position plug |
| Backwards compatible to Cat 3, 5 and 5e |
| IDC pair splitting tower allows for minimum disruption to cable twist |
| Compatible with standard 110 termination tools |
| Hubbell universal keystone mounting |
| Hubbell Icon compatible |
