Chicago-Latrobe®
Chicago-Latrobe® 50809 559 3/16
Custom_Product_Images_Illustration
Chicago-Latrobe®
Chicago-Latrobe® 50809 559 3/16
SKU256615
MFGR #50809
Your Cost: $3.63/ea

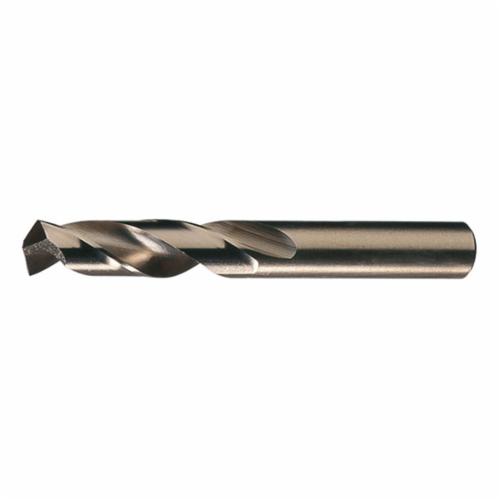

List: Chicago-Latrobe® Screw Machine Drill, Heavy Duty, Series: 559, 3/16 in Dia, 2-3/16 in Overall Length, 1-1/8 in Cutting Depth, Spiral Flute, 1-1/8 in Flute Length, 3/16 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, Cobalt Cutting Edge, Cobalt, Straw Oxide, Applicable Materials: Tool Steel, Alloy Steel, Carbon Steel and Cast Iron
Chicago-Latrobe® Screw Machine Drill, Heavy Duty, Series: 559, 3/16 in Dia, 2-3/16 in Overall Length, 1-1/8 in Cutting Depth, Spiral Flute, 1-1/8 in Flute Length, 3/16 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting, Cobalt Cutting Edge, Cobalt, Straw Oxide, Applicable Materials: Tool Steel, Alloy Steel, Carbon Steel and Cast Iron
Catalog Number 50809 Cutting Depth 3XD Cutting Direction Right Hand Cutting Edge Material M42 HSS-Co 8 Drill Diameter Measurement System Imperial Flute Length 1-1/8 in Flute Type Right Spiral Gross Weight Per Pack 1 lb Number of Flutes 2 Overall Length 2-3/16 in Point Angle 135 ° Point Type Split Series 559 Shank Size 3/16 in Dia x 1-1/16 in L Shank Type Straight Type Heavy Duty UNSPSC 23241606 UPC 11 66235550809 UPC 12 66235550809 Stock Status NONSTOCK Brand Chicago-Latrobe® Manufacturer Greenfield Industries Applicable Materials Alloy Steel, Carbon Steel, Cast Iron and Tool Steel Finish Straw Material M42 HSS-Co 8 Heavy duty geometry for drilling tougher materials by hand or machine Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates P3 split point is self-centering for reduced thrust and easier penetration Straw finish allows for easy identification of cobalt tools
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Catalog Number | 50809 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | M42 HSS-Co 8 |
| Drill Diameter Measurement System | Imperial |
| Flute Length | 1-1/8 in |
| Flute Type | Right Spiral |
| Gross Weight Per Pack | 1 lb |
| Number of Flutes | 2 |
| Overall Length | 2-3/16 in |
| Point Angle | 135 ° |
| Point Type | Split |
| Series | 559 |
| Shank Size | 3/16 in Dia x 1-1/16 in L |
| Shank Type | Straight |
| Type | Heavy Duty |
| UNSPSC | 23241606 |
| UPC 11 | 66235550809 |
| UPC 12 | 66235550809 |
| Stock Status | NONSTOCK |
| Brand | Chicago-Latrobe® |
| Manufacturer | Greenfield Industries |
| Applicable Materials | Alloy Steel, Carbon Steel, Cast Iron and Tool Steel |
| Finish | Straw |
| Material | M42 HSS-Co 8 |
| Heavy duty geometry for drilling tougher materials by hand or machine |
| Shorter flute and overall length provide superior rigidity to minimize deflection when using heavy feed rates |
| P3 split point is self-centering for reduced thrust and easier penetration |
| Straw finish allows for easy identification of cobalt tools |
