Hubbell Wiring Device-Kellems

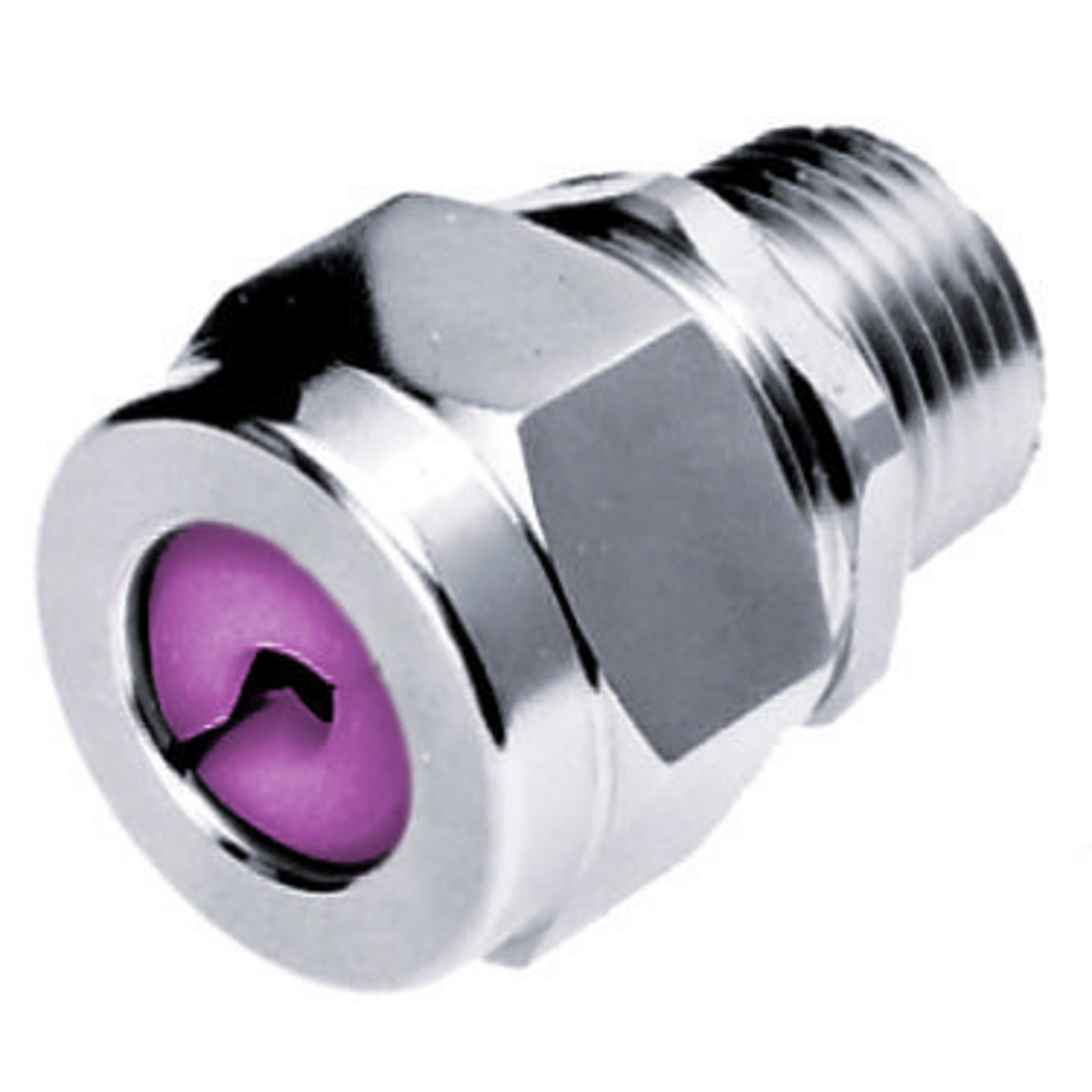

CORDCON, STR ML, .75-.88", 1", STL
Custom_Product_Images_Illustration
Hubbell Wiring Device-Kellems
CORDCON, STR ML, .75-.88", 1", STL
SKU143190
MFGR #SHC1099ZP
Your Cost: $26.46/ea
Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Their machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads. For larger size cord, NPT hub sizes 1 to 2 in, Hubbell utilizes malleable iron connectors which provide excellent holding and liquidtight performance.
Hubbell has the broadest line and the widest choice of materials in the industry. NPT hub sizes from 1/4 to 3 in straight male end, 90 deg, 45 deg, female and underground feed connectors. They are available in your choice of aluminum, plated steel, nylon and stainless steel. Their machined steel nut and body allows for tightening the compression nut and NPT hub without worrying about stripping the threads. For larger size cord, NPT hub sizes 1 to 2 in, Hubbell utilizes malleable iron connectors which provide excellent holding and liquidtight performance.
Application Straight Male- Form 3 ARRA Compliant C Buy American Compliant C Catalog Number SHC1099ZP Color Metallic Conductor Range 0.75- 0.88 in (19.0- 22.2 mm) Connection Type MNPT Straight Country of Origin US Currency USD Dimensions 1.59 in Dia Environmental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. EU RoHS Indicator Y Gross Weight Per Pack 0.3700 lb Gross Weight per Pack Metric 0.16 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 7326908688 Height 1.38 in Height [Metric] 3.5052 cm Length 5.00 in Length [Metric] 12.7000 cm Mounting Locknut or Tapped Opening NEMA Rating NEMA Type 4, 4X, 12 and 13 Number Of Conductors Single Returnable Y Size 1" NPT in Standard UL LISTED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedNEC Class I Div 2, Class II Div 1, 2, Class Ill Div 1, 2 Hazardous Locations Sub Brand Kellems Wire Management Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F Type Straight Male UNSPSC 39121431 UPC 11 78358521099 UPC 12 783585210995 Width 4.50 in Width [Metric] 11.4300 cm Stock Status NONSTOCK Brand Hubbell Wiring Device-Kellems Manufacturer Hubbell Cable Openings 0.75 to 0.88 in Dia Finish Machined Material Machined Zinc- Plated Steel Trade Size 1 in Straight Male- Form 3 Standard Product Zinc plated cord connector provides the strength and corrosion resistance Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification Orchid color code 1.36 to 1.41 in recommended knockout hole 0.7 in thread length 0.89 in throat diameter F3 form size The zinc plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating Heavy duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials NEMA 4/4X/12/13 enclosure
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Straight Male- Form 3 |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | SHC1099ZP |
| Color | Metallic |
| Conductor Range | 0.75- 0.88 in (19.0- 22.2 mm) |
| Connection Type | MNPT Straight |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 1.59 in Dia |
| Environmental Conditions | Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting. |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 0.3700 lb |
| Gross Weight per Pack Metric | 0.16 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 7326908688 |
| Height | 1.38 in |
| Height [Metric] | 3.5052 cm |
| Length | 5.00 in |
| Length [Metric] | 12.7000 cm |
| Mounting | Locknut or Tapped Opening |
| NEMA Rating | NEMA Type 4, 4X, 12 and 13 |
| Number Of Conductors | Single |
| Returnable | Y |
| Size | 1" NPT in |
| Standard | UL LISTED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 514B NEMA 4/4X/12/13CSA CertifiedNEC Class I Div 2, Class II Div 1, 2, Class Ill Div 1, 2 Hazardous Locations |
| Sub Brand | Kellems Wire Management |
| Temperature Rating | Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C) °F |
| Type | Straight Male |
| UNSPSC | 39121431 |
| UPC 11 | 78358521099 |
| UPC 12 | 783585210995 |
| Width | 4.50 in |
| Width [Metric] | 11.4300 cm |
| Stock Status | NONSTOCK |
| Brand | Hubbell Wiring Device-Kellems |
| Manufacturer | Hubbell |
| Cable Openings | 0.75 to 0.88 in Dia |
| Finish | Machined |
| Material | Machined Zinc- Plated Steel |
| Trade Size | 1 in |
| Straight Male- Form 3 |
| Standard Product |
| Zinc plated cord connector provides the strength and corrosion resistance |
| Lubricated neoprene bushing compresses easily for a liquidtight seal and added pull-out protection |
| Patented GOTCHA® ring incorporates a split hinge design to prevent friction and provide strain relief, also color-coded for sizing identification |
| Orchid color code |
| 1.36 to 1.41 in recommended knockout hole |
| 0.7 in thread length |
| 0.89 in throat diameter |
| F3 form size |
| The zinc plated steel cord connectors offers the strength of steel and the corrosion resistance of zinc-plating |
| Heavy duty connectors hold up to most manufacturing chemicals including acid solutions, solvents and other corrosive materials |
| NEMA 4/4X/12/13 enclosure |
