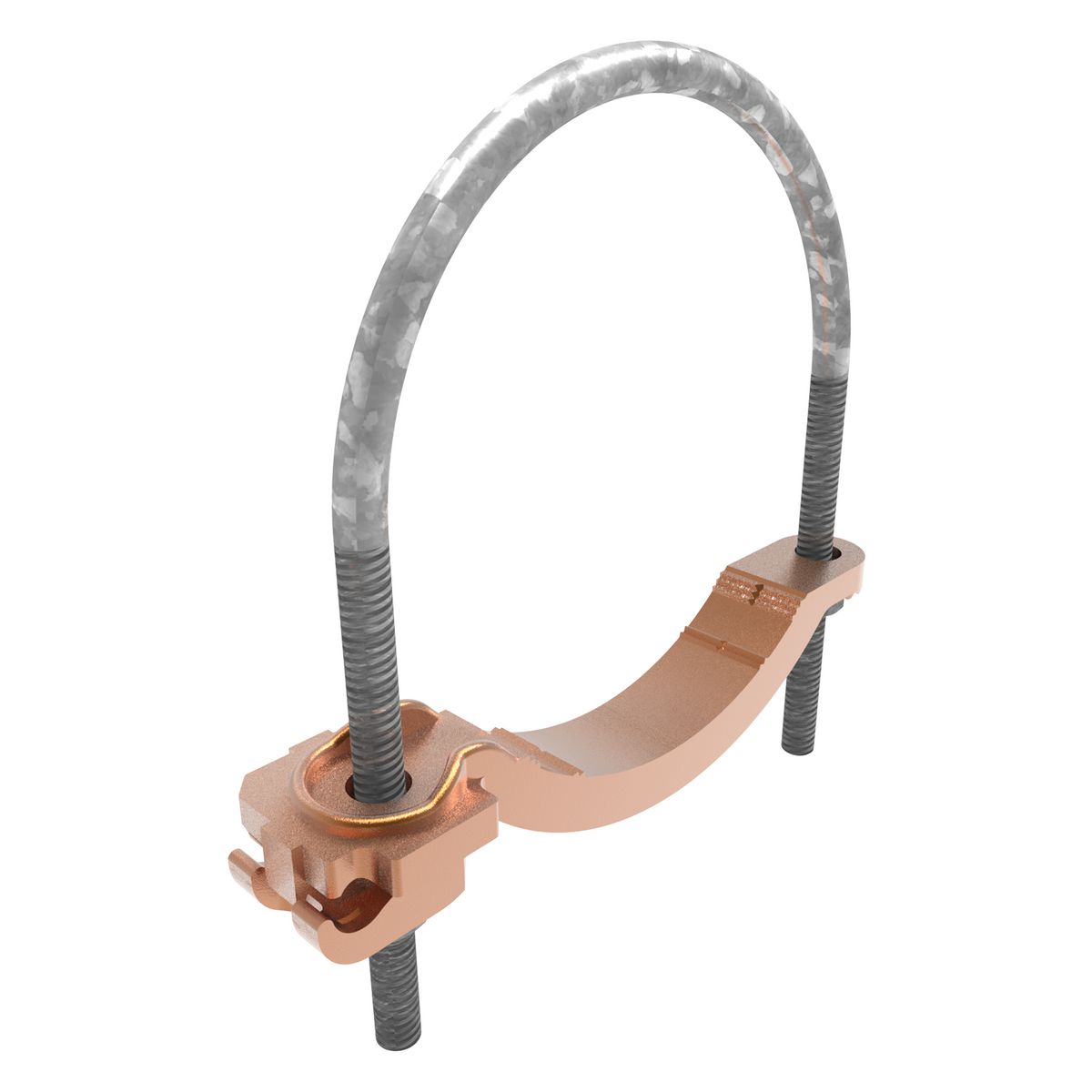

Burndy® GAR3905 GAR3902 Mechanical Grounding Connector, 4 to 5 in Rod, 4 to 4/0 AWG Conductor, Copper
Grounding
366630
MFG #: GAR3905
BURNDY®
64.70000
/ ea
- Brochure URL - 10969_VTRA7MUYDSN9W6KC.pdf(Brochure URL)
- Brochure URL - BURNDY_GAR3905_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_dd413b9efb559ebcd3c94a01474b7b15ae47b611d6e49f838ea93c30c5c8a232.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_ID-DRW-v1-sd206499-01.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_1Z5MJD3FKRVULC8Y.pdf(Spec Sheet URL)
- Spec Sheet URL - GAR3905.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-sd206499-01.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-sd206499-01.pdf(Tech Drawing URL)
- Tech Drawing URL - sd206499-01.pdf(Tech Drawing URL)
- Applications
- Features
| For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Direct Burial Cables |
| Features: High-Conductivity Copper Ground Connector For Connecting A Small To Medium Range Copper Ground Conductor To Water Pipe As Well As Structural And Reinforcing Rod Shapes, Cable Clamp Swivels At 90 DEG, Permits Parallel Grounding Of One Pipe Or A 90 DEG Cable Run For Grounding Several Parallel Pipes, One-Wrench Installation, Simplified Installation, Long Lasting Corrosion Resistance And Acceptable For Direct Burial In Earth Or Concrete, UL467 Listed, Provides Quality Assurance To Recognized Industry NEC Standards From An Independent Party, Ground Rod Size: 4 - 5 IN, Tube (ips) Size: 4 - 5 IN, Height: 7.5 IN, Installation Torque: 240 IN-LB, Width: 7.5 IN |
| High conductivity copper ground connector for connecting a small to medium range copper ground conductor to water pipe as well as structural and reinforcing rod shapes |
| Cable clamp swivels at 90 deg |
| Permits parallel grounding of one pipe or a 90 deg cable run for grounding several parallel pipes |
| Simplified installation |
| Long lasting corrosion-resistance and acceptable for direct burial in earth or concrete |
| Provides quality assurance to recognized industry NEC standards from an independent party |
| Steel hardware |
| 200 in-lb installation torque |
| 3/8 in bolt |
| 4 - 4/0 AWG stranded (main/primary) conductor range |
| Galvanized screw |
| 4 to 5 in IPS pipe |
| Made of High-Conductivity Copper |
