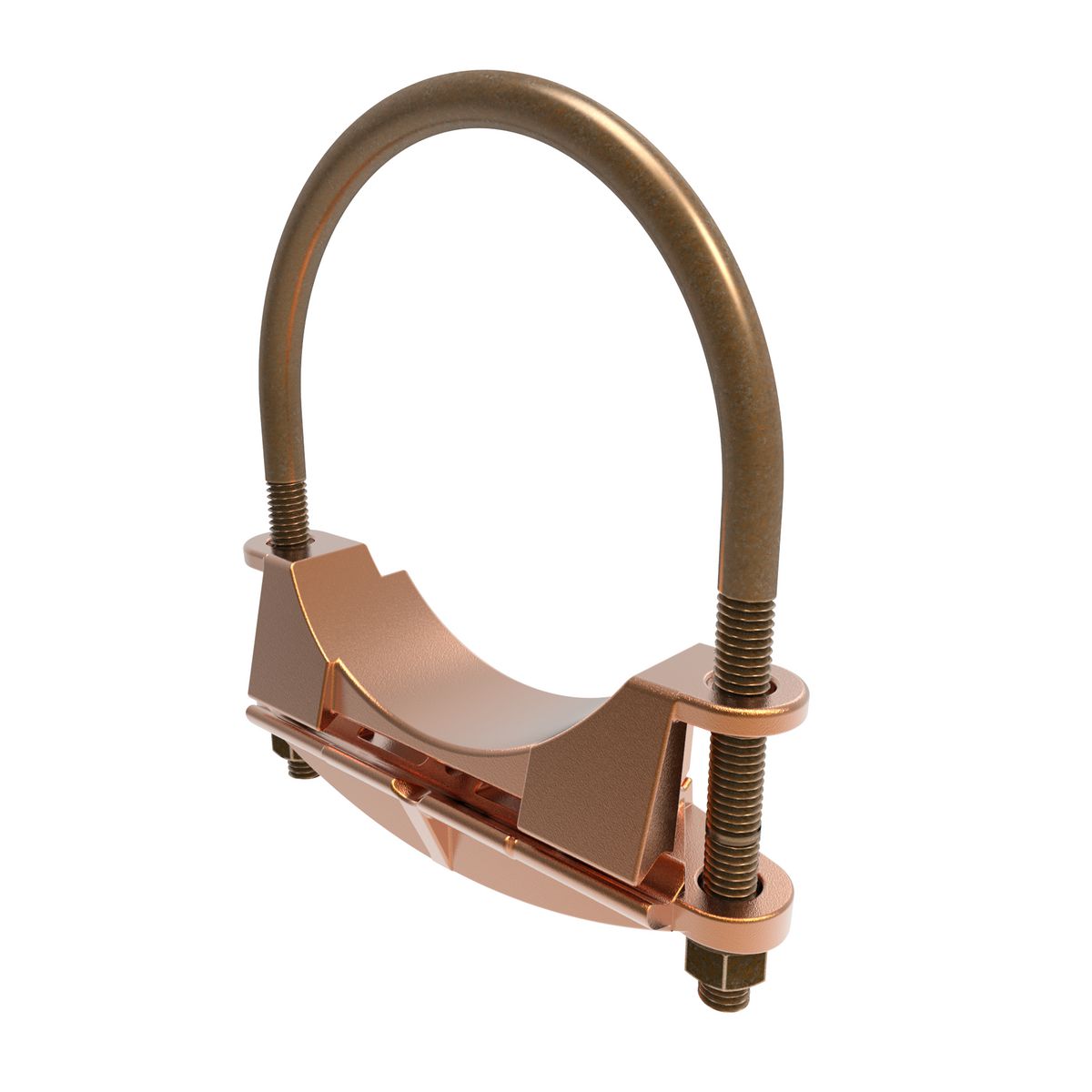

Burndy® GAR1926 GAR Mechanical Grounding Connector, 2-1/2 to 2-7/8 in Rod, 4 to 2/0 AWG Conductor, Copper
Grounding-Bonding Clamps
85814
MFG #: GAR1926
BURNDY®
69.66000
/ ea
- Brochure URL - 10969_GJC2MF86XLRPZIDT.pdf(Brochure URL)
- Brochure URL - BURNDY_GAR1926_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_68a1ee7bdfca72d43203a97f8df9f9401b207affc171978160b2f26e40ddecf2.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_0B1UM5XYTOJIZ9WK.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_6I8DP0Q5ZKHNB1A2.pdf(Spec Sheet URL)
- Spec Sheet URL - BRDY-GAR1926-SPEC-EN.pdf(Spec Sheet URL)
- Spec Sheet URL - GAR1926.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_0B1UM5XYTOJIZ9WK.pdf(Tech Drawing URL)
- Tech Drawing URL - SD015789.pdf(Tech Drawing URL)
- Tech Drawing URL - ID-DRW-v1-SD015789.pdf(Tech Drawing URL)
- Applications
- Features
| For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Features: High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Ground Rod Size: 2-1/2 - 2-7/8 IN, Tube (ips) Size: 2-1/2 IN, Height: 5 IN, Width: 4-1/4 IN, Installation Torque: 240 IN-LB |
| High copper alloy ground connector for joining a range of cable, parallel or at right angles to rod or tube |
| Especially good for fence posts |
| High copper alloy cast body with DURIUM U-bolts, nuts and lock washers |
| Permit entire connection to be buried in ground or concrete without danger of corrosion |
| Acceptable for direct burial |
| 240 in-lb installation torque |
| 3/8 in bolt |
| 4 - 3/0 AWG solid - 5 - 2/0 AWG stranded (main/primary) conductor range |
| Silicon bronze hardware |
| 2-1/2 in IPS pipe |
| Made of High Copper Alloy |
