Blackburn®

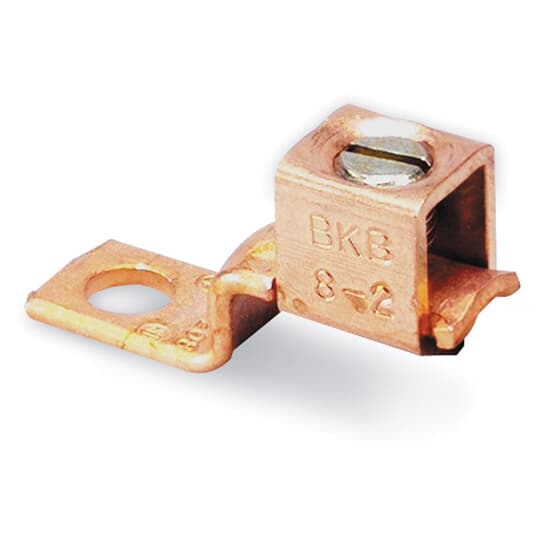

Blackburn® BTC0614 Type BTC Mechanical Terminal Lug, 14 to 6 AWG Stranded Copper Conductor, 13/64 in Stud, 1 Bolt Holes
Custom_Product_Images_Illustration
Blackburn®
Blackburn® BTC0614 Type BTC Mechanical Terminal Lug, 14 to 6 AWG Stranded Copper Conductor, 13/64 in Stud, 1 Bolt Holes
SKU93652
MFGR #BTC0614
Your Cost: $1.5547/ea($155.47 / c)
Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Blackburn® cast, forged, or formed mechanical connections, produced in economical copper and dual-rated aluminum, provide unequaled variety with a large variety of U.L. and C.S.A. certified solutions for your electrical interface needs.
Alternate Catalog Number 7TAH006700R0069 ARRA Compliant C Brand Blackburn® Buy American Compliant C Catalog Number BTC0614 Conductor Range [Main|Primary] 14 AWG-6 Str. Conductor Size 14 to 6 AWG Conductor Type Stranded Copper Country of Origin MX Currency USD Dimensions 1-3/32 in L x 3/8 in W x 25/32 in H EU RoHS Indicator C Gross Volume Per Pack 10.37 Gross Volume per Pack Metric 169.90 Gross Weight Per Pack 0.0200 lb Gross Weight per Pack Metric 0.01 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536904000 Height 2.25 in Height [Metric] 5.7150 cm Item Group 1I Item Group 2 1IC Length 2.25 in Length [Metric] 5.7150 cm Manufacturer Thomas & Betts Material Copper Number of Bolt Holes 1 Returnable A Specifications 1-Conductor Standard UL E9809 Standards CSA Certified, UL E9809 Listed Stock Status NONSTOCK Stud Size 13/64 in Tongue Size 3/8 in W x 5/64 in THK Tongue Type Offset Type Type BTC UNSPSC 39121408 UPC 11 78378661131 UPC 12 783786611317 Width 2.06 in Width [Metric] 5.2324 cm Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal.
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | 7TAH006700R0069 |
| ARRA Compliant | C |
| Brand | Blackburn® |
| Buy American Compliant | C |
| Catalog Number | BTC0614 |
| Conductor Range [Main|Primary] | 14 AWG-6 Str. |
| Conductor Size | 14 to 6 AWG |
| Conductor Type | Stranded Copper |
| Country of Origin | MX |
| Currency | USD |

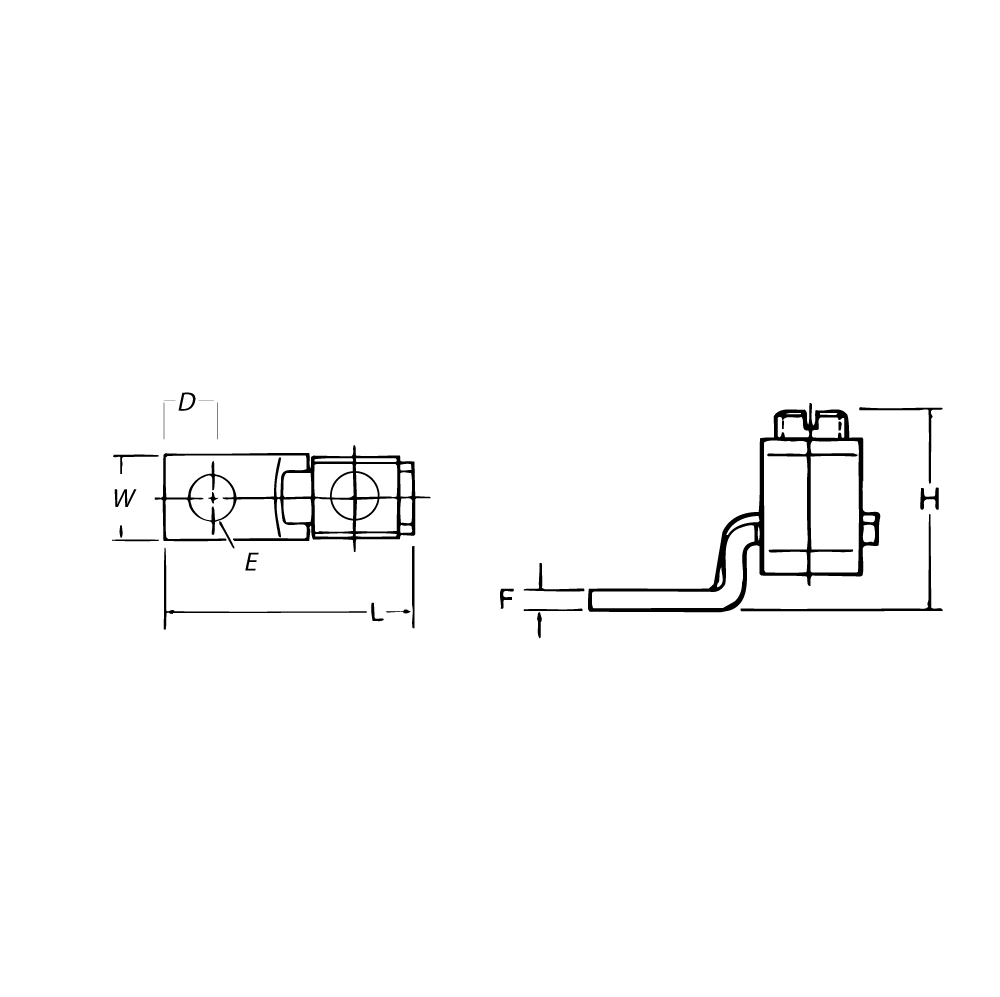

| Dimensions | 1-3/32 in L x 3/8 in W x 25/32 in H |
| EU RoHS Indicator | C |
| Gross Volume Per Pack | 10.37 |
| Gross Volume per Pack Metric | 169.90 |
| Gross Weight Per Pack | 0.0200 lb |
| Gross Weight per Pack Metric | 0.01 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536904000 |
| Height | 2.25 in |
| Height [Metric] | 5.7150 cm |
| Item Group | 1I |
| Item Group 2 | 1IC |
| Length | 2.25 in |
| Length [Metric] | 5.7150 cm |
| Manufacturer | Thomas & Betts |
| Material | Copper |
| Number of Bolt Holes | 1 |
| Returnable | A |
| Specifications | 1-Conductor |
| Standard | UL E9809 |
| Standards | CSA Certified, UL E9809 Listed |
| Stock Status | NONSTOCK |
| Stud Size | 13/64 in |
| Tongue Size | 3/8 in W x 5/64 in THK |
| Tongue Type | Offset |
| Type | Type BTC |
| UNSPSC | 39121408 |
| UPC 11 | 78378661131 |
| UPC 12 | 783786611317 |
| Width | 2.06 in |
| Width [Metric] | 5.2324 cm |
| Uniquely designed pressure bar and notched v-bottom collar provide vise-like grip between conductor and terminal. |
