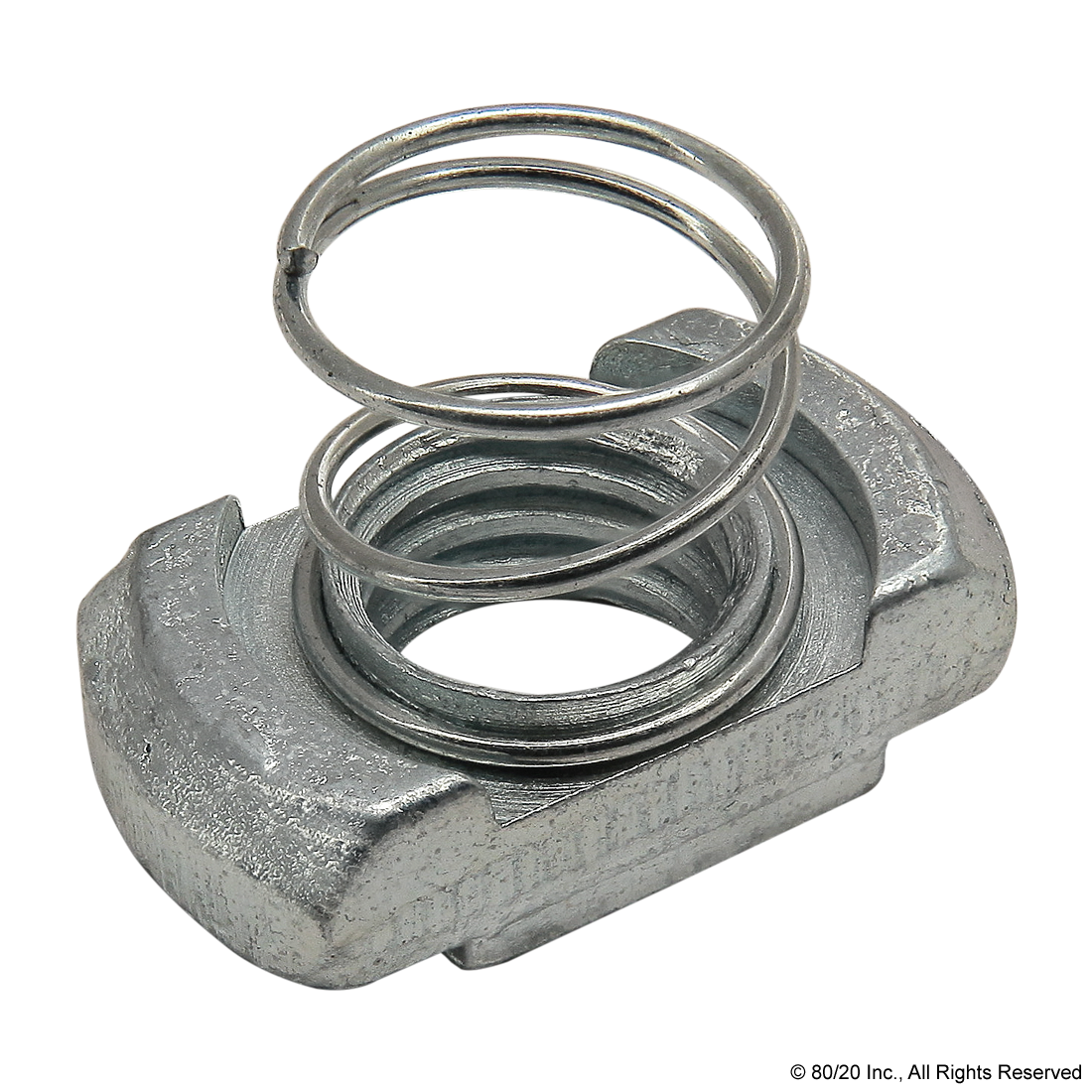

80/20 13109 SPRING NUT, M8, SLOT 10, STEEL
SKU1179577
MFGR #13109
Your Cost: $1.86/ea
The slide-in T-nut with holding spring is a fastening option that is compatible with the 80/20 metric 45 series and loads from the profile ends. The projection on the T-nut aligns it in the T-slot while the spring holds the fastener in place, even when the profile is in a vertical position. The spring is removable and snaps onto the threaded projection.
The slide-in T-nut with holding spring is a fastening option that is compatible with the 80/20 metric 45 series and loads from the profile ends. The projection on the T-nut aligns it in the T-slot while the spring holds the fastener in place, even when the profile is in a vertical position. The spring is removable and snaps onto the threaded projection.
Catalog Number 13109 Grade Q235 Gross Weight Per Pack 0.0100 lb Line Drawing Dimensions A=1.50mm B=10.00mm C=12.00mm D=6.00mm E=5.30mm F=10.00mm G=18.00mm H=M8 X 1.25 Stock Status NONSTOCK Brand 80/20 Manufacturer 80/20 Inc. Color Bright Finish Zinc Material Steel Series 45 Series
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Catalog Number | 13109 |
| Grade | Q235 |
| Gross Weight Per Pack | 0.0100 lb |
| Line Drawing Dimensions | A=1.50mm B=10.00mm C=12.00mm D=6.00mm E=5.30mm F=10.00mm G=18.00mm H=M8 X 1.25 |
| Stock Status | NONSTOCK |
| Brand | 80/20 |
| Manufacturer | 80/20 Inc. |
| Color | Bright |
| Finish | Zinc |
| Material | Steel |
| Series | 45 Series |
