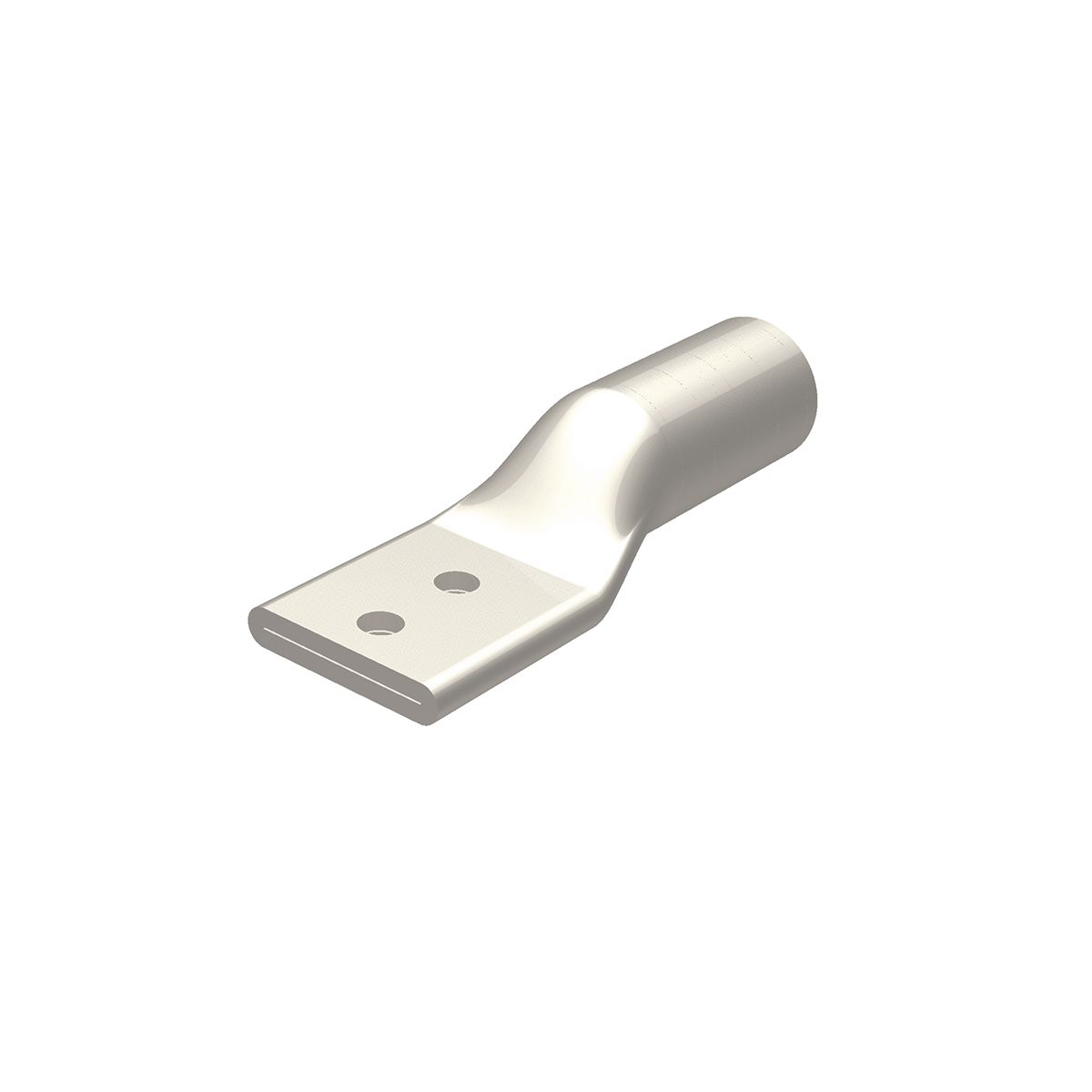

Burndy® YA32A3 HYLUG™ YA-A 2-Hole Non-Insulated Compression Lug Without Inspection Window, 400 kcmil Aluminum/Copper Conductor
Lug Compression Connectors
204756
MFG #: YA32A3
BURNDY®
26.45000
/ ea
- Application: Wire Termination
- ARRA Compliant: C
- Barrel Size: 2.26 in L
- Barrel Type: Beveled
- Buy American Compliant: C
- Catalog Number: YA32A3
- Color: Green
- Color Code: Green
- Country of Origin: US
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 0.5400 lb
- Gross Weight per Pack Metric: 0.24
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8535908020
- Height: 1.19 in
- Height [Metric]: 3.0226 cm
- Length: 6.15 in
- Length [Metric]: 15.6210 cm
- Overall Length: 6.15 in
- Returnable: Y
- Series: YA-A
- Specifications: 2 in L Wire Strip
- Standard: UL 486A-486B
- Sub Brand: HYLUG
- Temperature Rating: 90 °C
- Tongue Size: 3.11 in L x 1.62 in W x 0.43 in THK
- Tongue Type: Standard Straight
- Type: YA-A, Dual Rated
- UNSPSC: 39121405
- UPC 11: 78181075600
- UPC 12: 781810756003
- Voltage Rating: 35,000 V
- Width: 1.62 in
- Width [Metric]: 4.1148 cm
- Stock Status: NONSTOCK
- Brand: BURNDY®
- Manufacturer: BURNDY®
- Conductor Size: 400 kcmil
- Conductor Type: Aluminum/Copper
- Die Code: 472
- Material: Aluminum
- Stud Size: 1/2 in
- Brochure URL - 10969_I8XCDSR104Q7ZJHO.pdf(Brochure URL)
- Brochure URL - BURNDY_YA32A3_Specsheet.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_368db682ee88586d8ee54b4ca018e4881d6697b2e1ccf68fc1c544b41491e8ad.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- http://www.burndy.com/(Seller Home Page URL)
- Install Instructions 1 URL - 10969_XZMWISK35NQ1TEHO.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - Aluminum Installation Instructions.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Line Drawing URL - 10969_JCGH6Z7DKRB38ONU.pdf(Line Drawing URL)
- Spec Sheet URL - 10969_K9XAD6VFGHCB2IT1.pdf(Spec Sheet URL)
- Spec Sheet URL - YA32A3.pdf(Spec Sheet URL)
- Tech Drawing URL - SD.073935-01.pdf(Tech Drawing URL)
- Tech Drawing URL - SD..073935-01.pdf(Tech Drawing URL)
- Applications
- Features
| Wire Termination |
| Conductor Type: Aluminum, Tongue Angle: Straight |
| Manufactured from high conductivity, wrought aluminum with heavy duty wall thickness |
| Provides maximum conductivity, low resistance and ductility for an excellent combination of electrical and crimp forming properties |
| Electro tin plated provides durable long lasting corrosion resistance |
| Internally beveled barrel |
| Provides easy cable insertion |
| Provides a quality electrical dual connection |
| Connector is clearly marked with wire size, die index, color-code and the proper number and location of crimps |
| Provides easy identification and tooling recommendation for a proper compression which forms a homogeneous mass resulting in an excellent electrical connection |
| Factory prefilled with PENETROX® oxide inhibiting compound |
| Oxide inhibiting compound contains homogeneously suspended metallic particles to penetrate the wires oxides, establish electrical continuity and forms an airtight connection |
| Color coded end caps inserted in barrel end |
| Prevents foreign materials from entering and contaminating the connector prior to usage plus identifies the proper color coded die for a reliable connection |
| Type YA-A 2-hole pads inhibit connector rotation and increase area contact |
| They are designed for heavy duty applications to 35 kV |
| YA-A terminals are prefilled with PENETROX® and assembled with color coded end caps |
| Used for Y644HSXT, Y81KFT, Y81KFTMBH, PAT81KFT-18V crimpers |
| Straight tongue angle |
| 400 kcmil stranded conductor |
| 1.75 in hole center to center distance, 0.63 in hole center to end, 0.73 in hole center to barrel |
| Without inspection window |
