Square D™

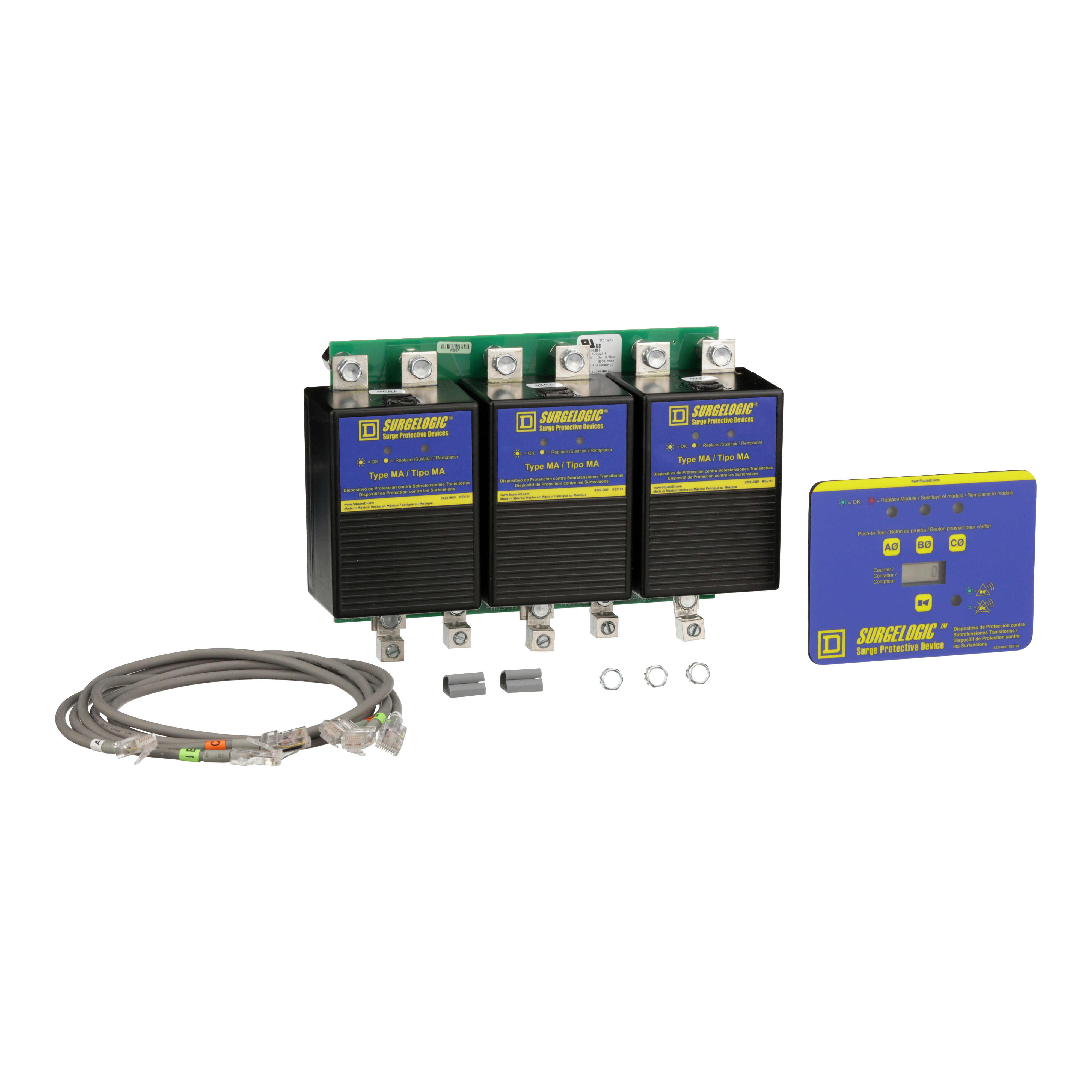

Square D™ Surgelogic™ TVS4IMA16O Surge Protective Device, 277/480Y VAC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
Custom_Product_Images_Illustration
Square D™
Square D™ Surgelogic™ TVS4IMA16O Surge Protective Device, 277/480Y VAC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
SKU1381972
MFGR #TVS4IMA16O
Your Cost: $4,775.83/ea
List: Square D™ Surgelogic™ Surge Protective Device, 277/480Y VAC, 50/60 Hz, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 160 kA Peak Surge, 320 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/L-L/N-G, 3, Environmental Conditions: -20 to 65 deg C Operating Temperature, NEMA 2, 6.13 in H x 9.86 in W x 3.65 in D
Square D™ Surgelogic™ Surge Protective Device, 277/480Y VAC, 50/60 Hz, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 160 kA Peak Surge, 320 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/L-L/N-G, 3, Environmental Conditions: -20 to 65 deg C Operating Temperature, NEMA 2, 6.13 in H x 9.86 in W x 3.65 in D
Alternate Catalog Number TVS4IMA16O ARRA Compliant N Buy American Compliant N Catalog Number TVS4IMA16O Clamping Voltage 320 Connection Lugs AWG 12...AWG 2 aluminium/copper 35.40 lbf.in (4 N.m) Country of Origin MX Currency USD Dimensions 6.13 in H x 9.86 in W x 3.65 in D Enclosure NEMA 2 Enclosure Type NEMA 2 Environmental Conditions -20 to 65 deg C Operating Temperature EU RoHS Indicator Y Gross Volume Per Pack 867.15 Gross Volume per Pack Metric 14209.99 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 8.4000 lb Gross Weight per Pack Metric 3.81 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 19.0500 in Height [Metric] 19.0500 cm Item Group 08468 Length 31.2420 in Length [Metric] 31.2420 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4101088&lang=en-us Modes of Protection L-N/L-G/L-L/N-G Nominal Discharge Current 20 Number Of Poles 3 Number of Wires 4 Peak Surge Current 160 Returnable Y Short Circuit Rating 200 kA Size 3.65 in Standard UL 1449:ED. 4-CSA C22.2 NO 8:1986-UL 96A:ED. 12-UL 1283-IEC 61643-1 Sub Brand IMA Type Surge protection device;4-wire UNSPSC 39121112 UPC 11 78590160074 UPC 12 785901600749 Voltage Rating 277/480 VAC Warranty Description Contractual Warranty:18 months Width 23.8760 in Width [Metric] 23.8760 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Electrical Ratings 277/480Y VAC Frequency Rating 50/60 Phase 3 Short Circuit Current Rating 200
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Substitute Products
| Alternate Catalog Number | TVS4IMA16O |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | TVS4IMA16O |
| Clamping Voltage | 320 |
| Connection | Lugs AWG 12...AWG 2 aluminium/copper 35.40 lbf.in (4 N.m) |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.13 in H x 9.86 in W x 3.65 in D |
| Enclosure | NEMA 2 |
| Enclosure Type | NEMA 2 |
| Environmental Conditions | -20 to 65 deg C Operating Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 867.15 |
| Gross Volume per Pack Metric | 14209.99 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 8.4000 lb |
| Gross Weight per Pack Metric | 3.81 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 19.0500 in |
| Height [Metric] | 19.0500 cm |
| Item Group | 08468 |
| Length | 31.2420 in |
| Length [Metric] | 31.2420 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4101088&lang=en-us |
| Modes of Protection | L-N/L-G/L-L/N-G |
| Nominal Discharge Current | 20 |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Peak Surge Current | 160 |
| Returnable | Y |
| Short Circuit Rating | 200 kA |
| Size | 3.65 in |
| Standard | UL 1449:ED. 4-CSA C22.2 NO 8:1986-UL 96A:ED. 12-UL 1283-IEC 61643-1 |
| Sub Brand | IMA |
| Type | Surge protection device;4-wire |
| UNSPSC | 39121112 |
| UPC 11 | 78590160074 |
| UPC 12 | 785901600749 |
| Voltage Rating | 277/480 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 23.8760 in |
| Width [Metric] | 23.8760 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Electrical Ratings | 277/480Y VAC |
| Frequency Rating | 50/60 |
| Phase | 3 |
| Short Circuit Current Rating | 200 |
