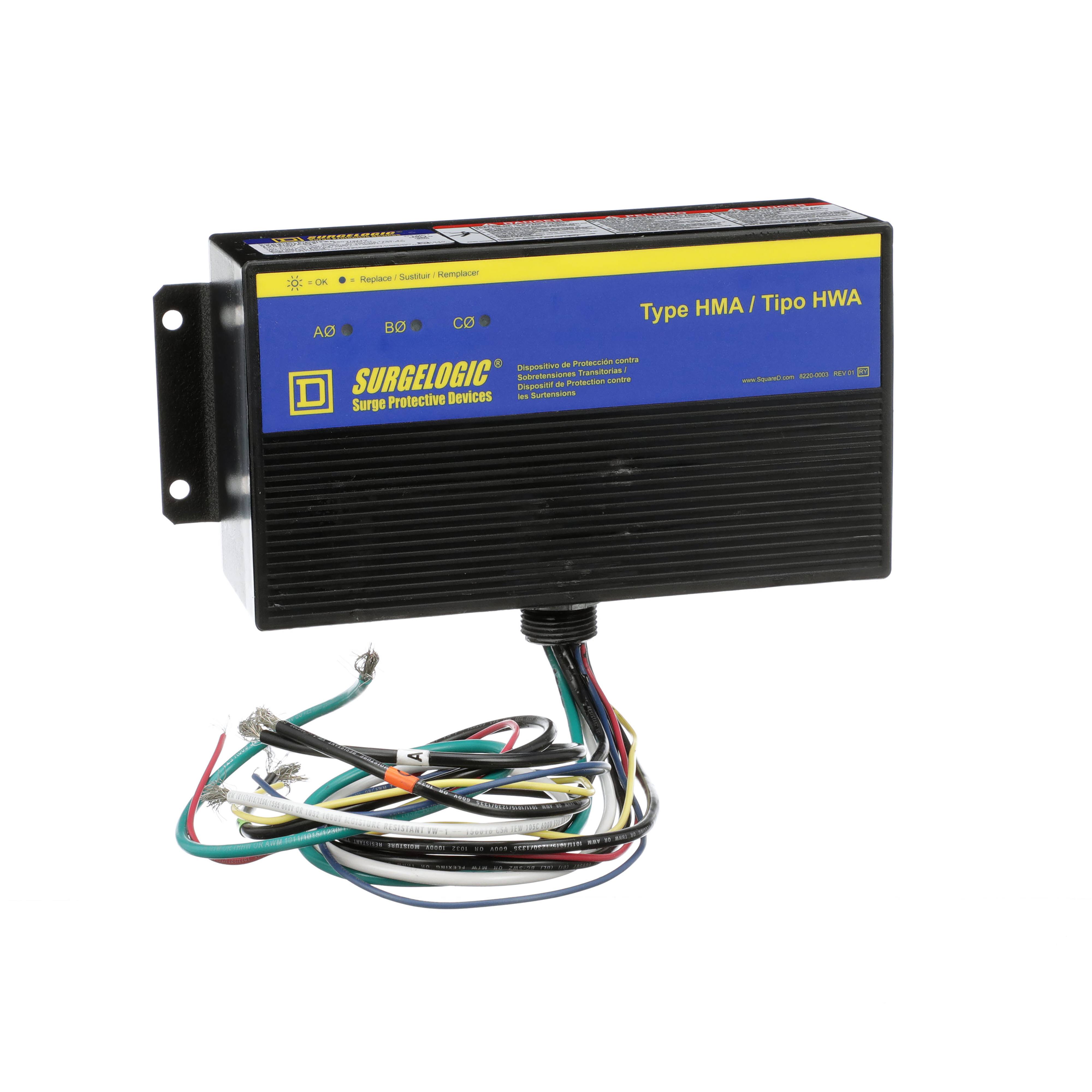

Square D™ Surgelogic™ TVS4HWA80X Type HWA Surge Protective Device, 480Y/277 VAC, 50/60 Hz, 2 Poles, 200 kA SCCR, 3 Phase
Custom_Product_Images_Illustration
Square D™ Surgelogic™ TVS4HWA80X Type HWA Surge Protective Device, 480Y/277 VAC, 50/60 Hz, 2 Poles, 200 kA SCCR, 3 Phase
SKU1173323
MFGR #TVS4HWA80X
Your Cost: $1,131.44/ea
List: Square D™ Surgelogic™ Surge Protective Device, Type HWA, 480Y/277 VAC, 50/60 Hz, 2 Pole, 4 Wires, 200 kA Short Circuit Current, 80 kA Peak Surge, 320 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/N-G/L-L, LED Indicator, 3, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X, Nipple Mount, Plastic, Black, 4.8 in H x 8.62 in W x 3.11 in D
Square D™ Surgelogic™ Surge Protective Device, Type HWA, 480Y/277 VAC, 50/60 Hz, 2 Pole, 4 Wires, 200 kA Short Circuit Current, 80 kA Peak Surge, 320 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-N/L-G/N-G/L-L, LED Indicator, 3, Environmental Conditions: 149 deg F Operating Temperature, NEMA 4X, Nipple Mount, Plastic, Black, 4.8 in H x 8.62 in W x 3.11 in D
Alternate Catalog Number TVS4HWA80X Application For service entrance locations and indoor/outdoor applications ARRA Compliant N Buy American Compliant N Catalog Number TVS4HWA80X Clamping Voltage 320 Color Black Country of Origin US Currency USD Dimensions 4.8 in H x 8.62 in W x 3.11 in D Enclosure Type NEMA 4X Environmental Conditions 149 deg F Operating Temperature EU RoHS Indicator Y Gross Volume Per Pack 431.42 Gross Volume per Pack Metric 7069.68 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 5.1100 lb Gross Weight per Pack Metric 2.32 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 5.25 in Height [Metric] 13.4620 cm Indicator Type LED Item Group 08466 Length 10.90 in Length [Metric] 27.9400 cm Material Plastic Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4101080&lang=en-us Modes of Protection L-N/L-G/N-G/L-L Mounting Type Nipple Nominal Discharge Current 20 Number Of Poles 2 Number of Wires 4 Peak Surge Current 80 Returnable Y Type Type HWA UNSPSC 39121112 UPC 11 78590140623 UPC 12 785901406235 Warranty Description Contractual Warranty:10 Years Width 7.33 in Width [Metric] 18.7960 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Electrical Ratings 480Y/277 VAC Frequency Rating 50/60 Phase 3 Short Circuit Current Rating 200 For service entrance locations and indoor/outdoor applications LEDs indicate operational status Compact design provides easy mounting inside or outside the equipment cabinets -54 dB EMI/RFI filtering Sine wave tracking Audible alarm indicates loss of suppression Dry contacts
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | TVS4HWA80X |
| Application | For service entrance locations and indoor/outdoor applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | TVS4HWA80X |
| Clamping Voltage | 320 |
| Color | Black |
| Country of Origin | US |
| Currency | USD |
| Dimensions | 4.8 in H x 8.62 in W x 3.11 in D |
| Enclosure Type | NEMA 4X |
| Environmental Conditions | 149 deg F Operating Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 431.42 |
| Gross Volume per Pack Metric | 7069.68 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 5.1100 lb |
| Gross Weight per Pack Metric | 2.32 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 5.25 in |
| Height [Metric] | 13.4620 cm |
| Indicator Type | LED |
| Item Group | 08466 |
| Length | 10.90 in |
| Length [Metric] | 27.9400 cm |
| Material | Plastic |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=4101080&lang=en-us |
| Modes of Protection | L-N/L-G/N-G/L-L |
| Mounting Type | Nipple |
| Nominal Discharge Current | 20 |
| Number Of Poles | 2 |
| Number of Wires | 4 |
| Peak Surge Current | 80 |
| Returnable | Y |
| Type | Type HWA |
| UNSPSC | 39121112 |
| UPC 11 | 78590140623 |
| UPC 12 | 785901406235 |
| Warranty Description | Contractual Warranty:10 Years |
| Width | 7.33 in |
| Width [Metric] | 18.7960 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Electrical Ratings | 480Y/277 VAC |
| Frequency Rating | 50/60 |
| Phase | 3 |
| Short Circuit Current Rating | 200 |
| For service entrance locations and indoor/outdoor applications |
| LEDs indicate operational status |
| Compact design provides easy mounting inside or outside the equipment cabinets |
| -54 dB EMI/RFI filtering |
| Sine wave tracking |
| Audible alarm indicates loss of suppression |
| Dry contacts |
