Square D™

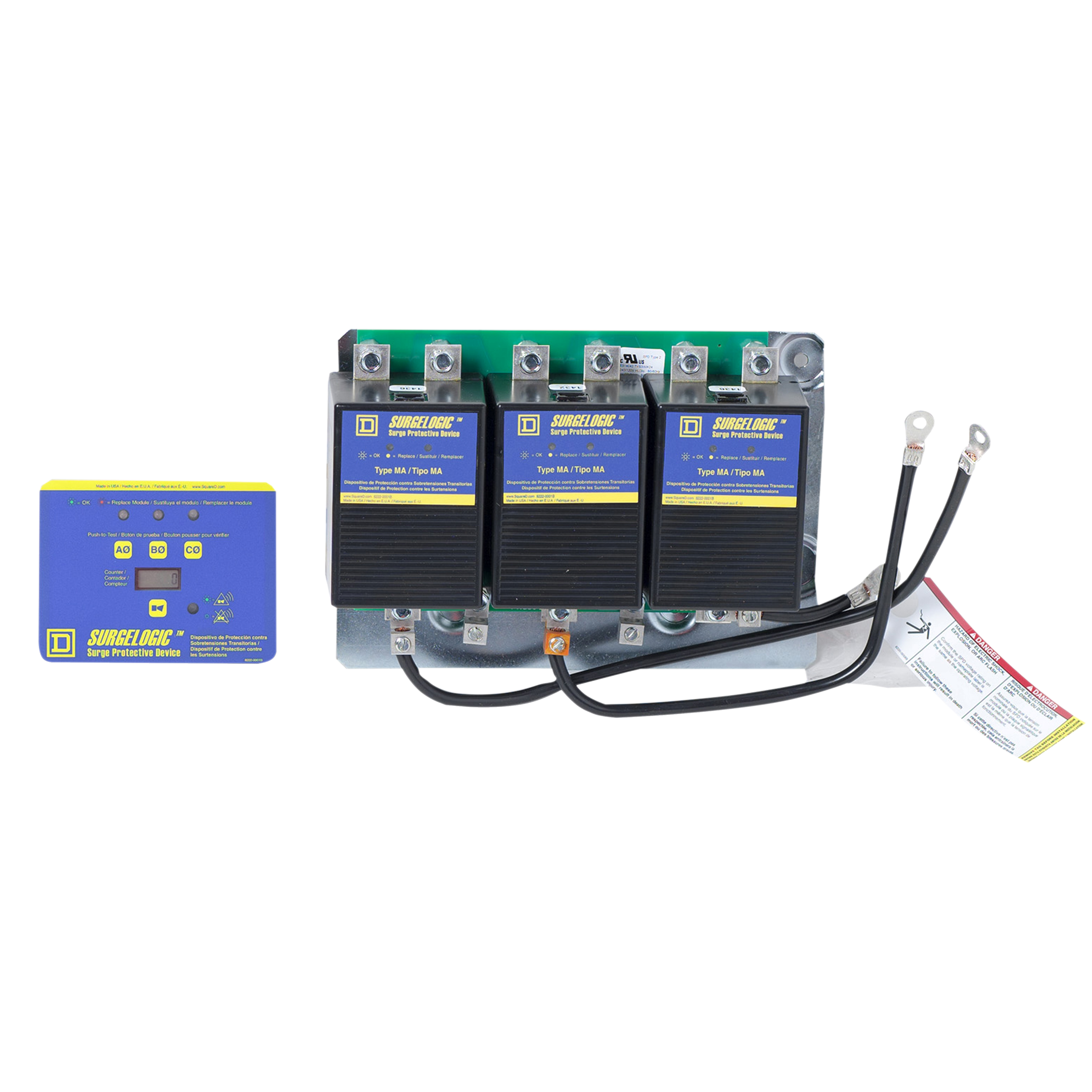

Square D™ Surgelogic™ TVS2IMA24O Surge Protective Device, 208Y/120 VAC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
Custom_Product_Images_Illustration
Square D™
Square D™ Surgelogic™ TVS2IMA24O Surge Protective Device, 208Y/120 VAC, 50/60 Hz, 3 Poles, 200 kA SCCR, 3 Phase
SKUPDW~6418897
MFGR #TVS2IMA24O
Price Not Available
Square D™ Surgelogic™ Surge Protective Device, 208Y/120 VAC, 50/60 Hz, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 240 kA Peak Surge, 150 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L/L-N/N-G, 3, Environmental Conditions: -4 to 149 deg F Operating Temperature, NEMA 2, 6.13 in H x 9.86 in W x 3.65 in D
Square D™ Surgelogic™ Surge Protective Device, 208Y/120 VAC, 50/60 Hz, 3 Pole, 4 Wires, 200 kA Short Circuit Current, 240 kA Peak Surge, 150 VAC Clamping, 20 kA Nominal Discharge, Modes of Protection: L-G/L-L/L-N/N-G, 3, Environmental Conditions: -4 to 149 deg F Operating Temperature, NEMA 2, 6.13 in H x 9.86 in W x 3.65 in D
Alternate Catalog Number TVS2IMA24O Application Commercial and Industrial Applications ARRA Compliant N Buy American Compliant N Catalog Number TVS2IMA24O Clamping Voltage 150 Connection Lugs AWG 12...AWG 2 aluminium/copper 35.40 lbf.in (4 N.m) Country of Origin MX Currency USD Dimensions 6.13 in H x 9.86 in W x 3.65 in D Enclosure NEMA 2 Enclosure Type NEMA 2 Environmental Conditions -4 to 149 deg F Operating Temperature EU RoHS Indicator Y Gross Volume Per Pack 909.17 Gross Volume per Pack Metric 14898.54 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.0386 lb Gross Weight per Pack Metric 3.90 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 19.8120 in Height [Metric] 19.8120 cm Item Group 08468 Length 31.4960 in Length [Metric] 31.4960 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267983516&lang=en-us Modes of Protection L-G/L-L/L-N/N-G Nominal Discharge Current 20 Number Of Poles 3 Number of Wires 4 Peak Surge Current 240 Returnable Y Short Circuit Rating 200 kA Size 3.65 in Standard UL 1449:ED. 4-CSA C22.2 NO 8:1986-UL 96A:ED. 12-UL 1283-IEC 61643-1 Sub Brand IMA Type Surge protection device;4-wire UNSPSC 39121112 UPC 11 78590159919 UPC 12 785901599197 Voltage Rating 120/208 VAC Warranty Description Contractual Warranty:18 months Width 23.8760 in Width [Metric] 23.8760 cm Brand Square D™ Manufacturer Schneider Electric Electrical Ratings 208Y/120 VAC Frequency Rating 50/60 Phase 3 Short Circuit Current Rating 200 Commercial and Industrial Applications
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Substitute Products
| Alternate Catalog Number | TVS2IMA24O |
| Application | Commercial and Industrial Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | TVS2IMA24O |
| Clamping Voltage | 150 |
| Connection | Lugs AWG 12...AWG 2 aluminium/copper 35.40 lbf.in (4 N.m) |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 6.13 in H x 9.86 in W x 3.65 in D |
| Enclosure | NEMA 2 |
| Enclosure Type | NEMA 2 |
| Environmental Conditions | -4 to 149 deg F Operating Temperature |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 909.17 |
| Gross Volume per Pack Metric | 14898.54 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.0386 lb |
| Gross Weight per Pack Metric | 3.90 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 19.8120 in |
| Height [Metric] | 19.8120 cm |
| Item Group | 08468 |
| Length | 31.4960 in |
| Length [Metric] | 31.4960 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267983516&lang=en-us |
| Modes of Protection | L-G/L-L/L-N/N-G |
| Nominal Discharge Current | 20 |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Peak Surge Current | 240 |
| Returnable | Y |
| Short Circuit Rating | 200 kA |
| Size | 3.65 in |
| Standard | UL 1449:ED. 4-CSA C22.2 NO 8:1986-UL 96A:ED. 12-UL 1283-IEC 61643-1 |
| Sub Brand | IMA |
| Type | Surge protection device;4-wire |
| UNSPSC | 39121112 |
| UPC 11 | 78590159919 |
| UPC 12 | 785901599197 |
| Voltage Rating | 120/208 VAC |
| Warranty Description | Contractual Warranty:18 months |
| Width | 23.8760 in |
| Width [Metric] | 23.8760 cm |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Electrical Ratings | 208Y/120 VAC |
| Frequency Rating | 50/60 |
| Phase | 3 |
| Short Circuit Current Rating | 200 |
| Commercial and Industrial Applications |
