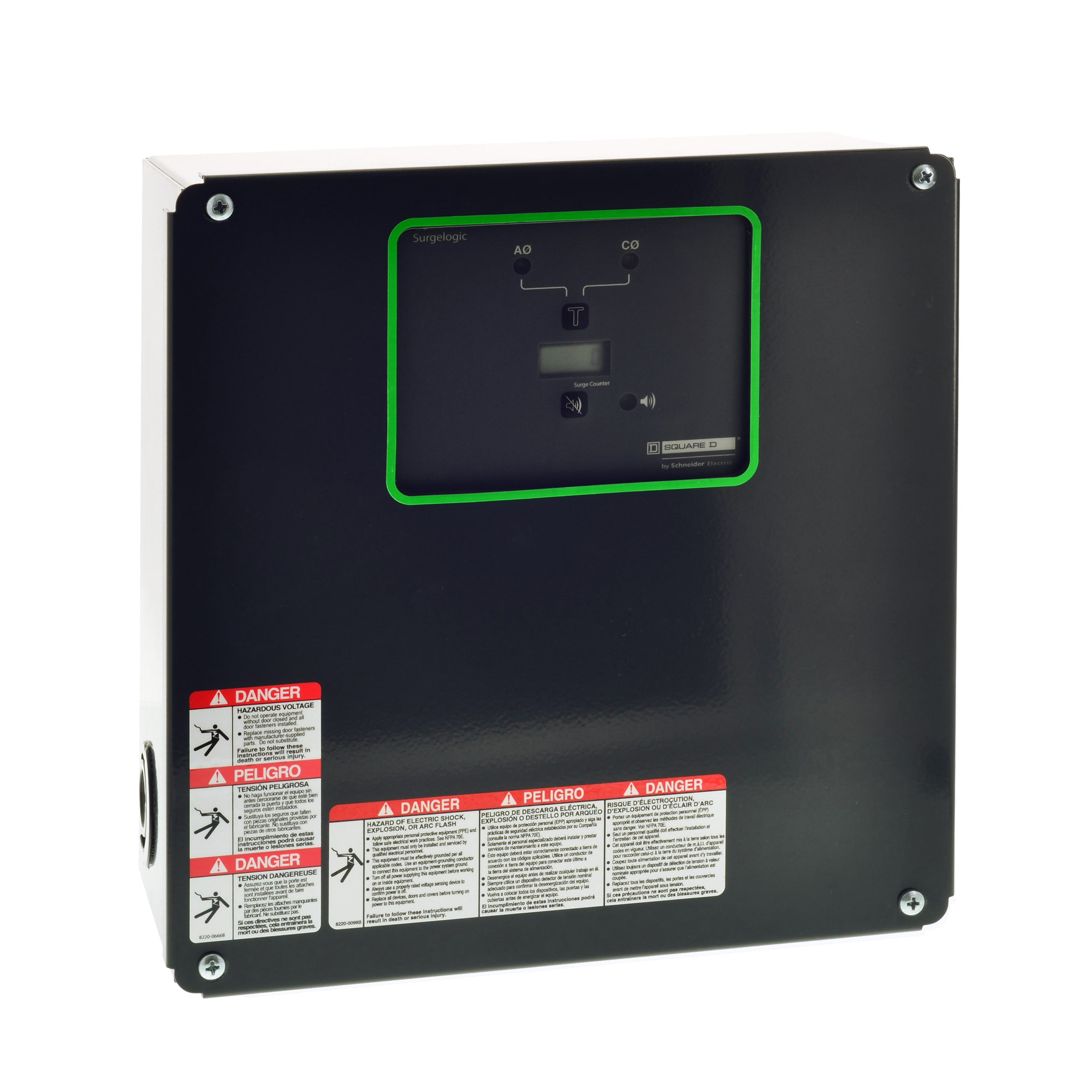

Square D™ Surgelogic™ SSP04EMA48D EMA Surge Protective Device, 480Y/277 VAC, 3 Poles, 200 kA SCCR, 3 ph
Square D™ Surgelogic™ SSP04EMA48D EMA Surge Protective Device, 480Y/277 VAC, 3 Poles, 200 kA SCCR, 3 ph
SKU1186469
MFGR #SSP04EMA48D
Your Cost: $10,882.21/ea
List: Square D™ Surgelogic™ Surge Protective Device, Series: EMA, 480Y/277 VAC Electrical Rating, 3 Poles, 4 Wires, 200 kA Short Circuit, 480 kA Peak Surge Current, 20 kA Nominal Discharge, LED Indicator, 3 ph, Environmental Conditions: 149 deg F Temperature deg F, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, Stainless Steel, 9.88 in W x 7.87 in D x 21.61 in H Dimensions
Square D™ Surgelogic™ Surge Protective Device, Series: EMA, 480Y/277 VAC Electrical Rating, 3 Poles, 4 Wires, 200 kA Short Circuit, 480 kA Peak Surge Current, 20 kA Nominal Discharge, LED Indicator, 3 ph, Environmental Conditions: 149 deg F Temperature deg F, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, Stainless Steel, 9.88 in W x 7.87 in D x 21.61 in H Dimensions
Alternate Catalog Number SSP04EMA48D Application Low Voltage Products and Systems, Building Automation and Control, Industrial Automation and Control and Critical Power, Cooling and Racks Applications ARRA Compliant N Buy American Compliant N Catalog Number SSP04EMA48D Country of Origin US Currency USD EU RoHS Indicator Y Gross Weight Per Pack 20.5000 lb Gross Weight per Pack Metric 9.30 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536308000 Height 54.9000 in Height [Metric] 54.9000 cm Item Group 08464 Length 20.0000 in Length [Metric] 20.0000 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455794511&lang=en-us Returnable Y Substitute Product Catalog Number MA4IMA241 UNSPSC 39121634 UPC 11 78590107727 UPC 12 785901077275 Voltage Rating 277/480 VAC Width 25.1000 in Width [Metric] 25.1000 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Phase 3 phase Low Voltage Products and Systems, Building Automation and Control, Industrial Automation and Control and Critical Power, Cooling and Racks Applications NEMA 1 or 4X rating High energy suppression circuit that provides 10 modes of suppression from 100000 to 480000 peak amps of surge current rating per phase Advanced diagnostics allow for visual indication/testing of the suppressor's functionality Suppression status alarms provide multiple methods of alarm notification Coordinated fuse technology allows disconnection methods for thermal and high current events External panel SPDs mount adjacent to the equipment through a conduit connection and as close to the circuit breaker as possible in order to reduce lead lengths and improve surge suppression
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | SSP04EMA48D |
| Application | Low Voltage Products and Systems, Building Automation and Control, Industrial Automation and Control and Critical Power, Cooling and Racks Applications |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | SSP04EMA48D |
| Country of Origin | US |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Weight Per Pack | 20.5000 lb |
| Gross Weight per Pack Metric | 9.30 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536308000 |
| Height | 54.9000 in |
| Height [Metric] | 54.9000 cm |
| Item Group | 08464 |
| Length | 20.0000 in |
| Length [Metric] | 20.0000 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455794511&lang=en-us |
| Returnable | Y |
| Substitute Product Catalog Number | MA4IMA241 |
| UNSPSC | 39121634 |
| UPC 11 | 78590107727 |
| UPC 12 | 785901077275 |
| Voltage Rating | 277/480 VAC |
| Width | 25.1000 in |
| Width [Metric] | 25.1000 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Phase | 3 phase |
| Low Voltage Products and Systems, Building Automation and Control, Industrial Automation and Control and Critical Power, Cooling and Racks Applications |
| NEMA 1 or 4X rating |
| High energy suppression circuit that provides 10 modes of suppression from 100000 to 480000 peak amps of surge current rating per phase |
| Advanced diagnostics allow for visual indication/testing of the suppressor's functionality |
| Suppression status alarms provide multiple methods of alarm notification |
| Coordinated fuse technology allows disconnection methods for thermal and high current events |
| External panel SPDs mount adjacent to the equipment through a conduit connection and as close to the circuit breaker as possible in order to reduce lead lengths and improve surge suppression |
