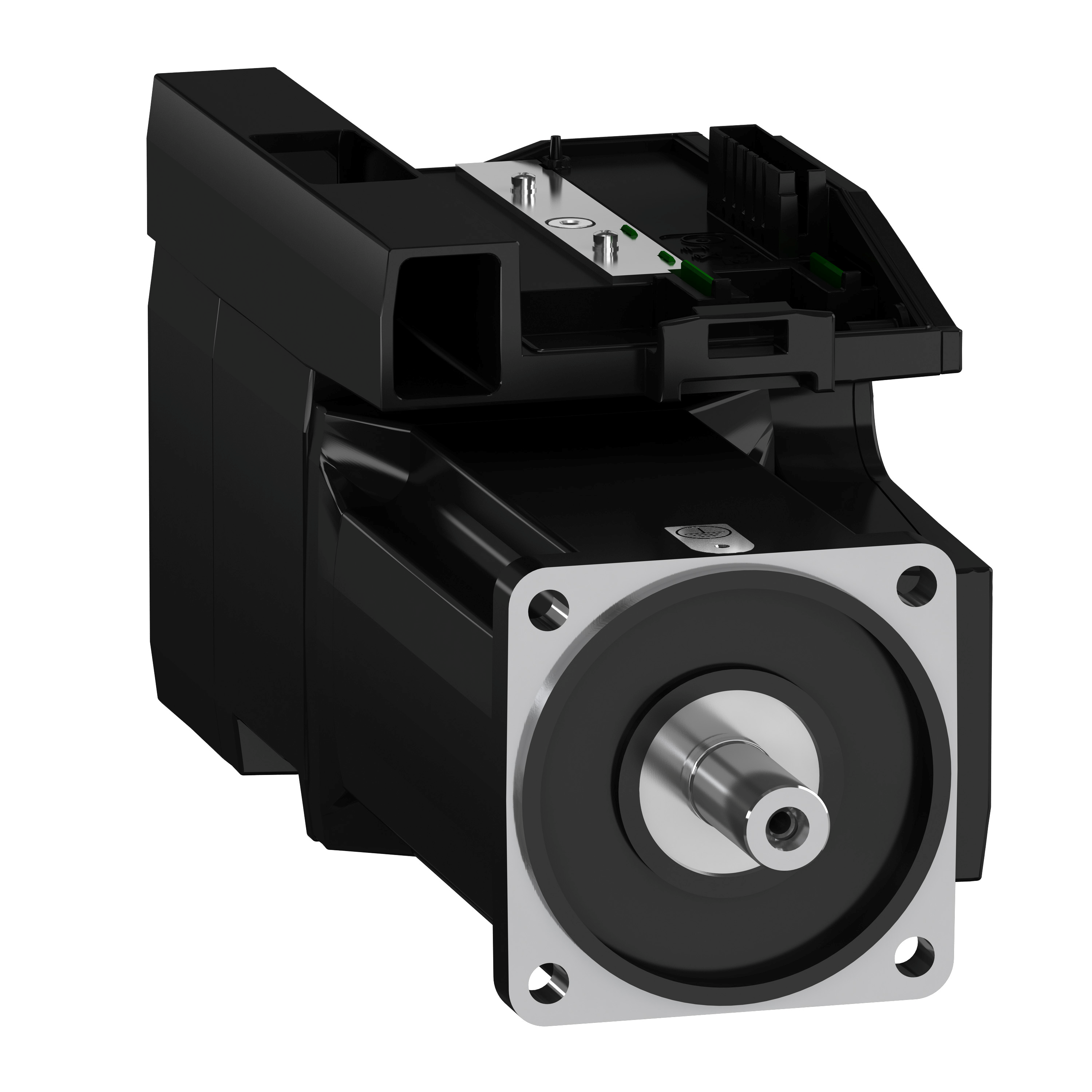

Schneider Electric BMI1003P37F BMI Series 3-Stack 10-Poles Keyed, 208 to 480 V, 26.7 A, 1500,3000,3700 rpm speed, Flange mount
Servo Motors
PDW~11692185
MFG #: BMI1003P37F
Square D™
3861.09000
/ ea
- Alternate Catalog Number: BMI1003P37F
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: BMI1003P37F
- Country of Origin: DE
- Currency: USD
- EU RoHS Indicator: Y
- Gross Weight Per Pack: 24.2000 lb
- Gross Weight per Pack Metric: 11.00
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8501206000
- Height: 9.75 in
- Height [Metric]: 25.0000 cm
- Item Group: 18287
- Length: 21.45 in
- Length [Metric]: 55.0000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=266680495&lang=en-us
- Returnable: N
- Substitute Product Catalog Number: ESECAPCZZSPMZZ
- UNSPSC: 26101205
- Warranty Description: Contractual Warranty:18 months
- Width: 7.25 in
- Width [Metric]: 18.6000 cm
- Brand: Square D™
- Manufacturer: Schneider Electric
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_ILERJXTSMF4UD9GA.pdf(Service Manual URL)
- Service Manual URL - 11003_O28MHUYXCDF5JAT0.pdf(Service Manual URL)
- Spec Sheet URL - 11003_HA1FV3MO86DU2XGQ.pdf(Spec Sheet URL)
- User Manual URL - 11003_NCSFL67PXQ9KH42R.pdf(User Manual URL)
- User Manual URL - files?p_enDocType=User+guide&p_File_Name=Integrated+Drive_LXM32IETH_en.pdf(User Manual URL)
- Features
Four components are easy to assemble - a just click on each component and secure |
Settings can be stored on the optional memory card |
Simply insert the card to recall them |
Flexibility: Create your own product using a combination of the four components to build a product that meets your specific application requirements |
Connector modules are available with industrial connector or terminal connector module which can be mounted on top or rear side of the product |
Cost efficiency |
Reduce cabinet space by up to 60% |
Unlike traditional servo drives that are installed in a cabinet, the Lexium 32i servo drive is installed directly on the machine to help you improve cost and energy efficiency |
Reduce energy costs by up to 30% due to less cabinet cooling, energy-efficient motor and drive technology, and no need for motor cable and cabinet space for the drive |
If cabinet space is not an issue, the servo range might be your drive of choice |
If cabinet space is not an issue, the servo range might be your drive of choice |
It consists of three high-performance book-size servo drive models and two motor families |
With holding brake |
Integrated emc filter |
4 A 8 kHz continuous output current |
1000 W 208 V three phase2000 W 400 V three phase2100 W 480 V three phase nominal output power |
Without second shaft end second shaft |
0.24 in (6 mm) key width |
Absolute multiturn SinCos Hiperface feedback type |
3.94 in (100 mm) motor flange size |
