Sandvik Coromant

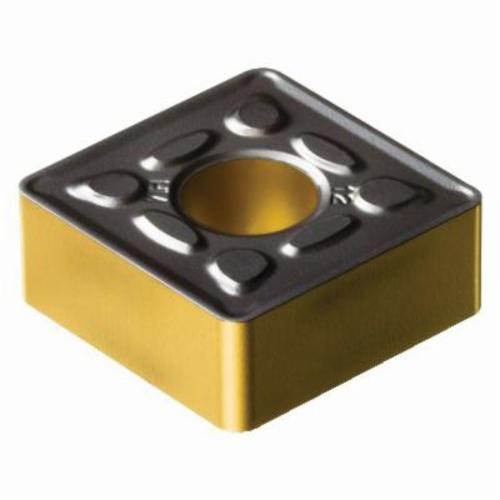

Sandvik Coromant 5908014 T-Max® P Negative Basic Shape Turning Insert, SNMG 646-HM 4235, S-Square, SNMG Insert, 4235, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5908014 T-Max® P Negative Basic Shape Turning Insert, SNMG 646-HM 4235, S-Square, SNMG Insert, 4235, Carbide
SKU1239754
MFGR #5908014
Your Cost: $31.43/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, HM Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: SNMG 646-HM 4235, ISO Code: SNMG 19 06 24-HM 4235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10 mm Maximum Depth of Cut, 3/4 in Inscribed Circle, 1/4 in Thickness, 3/4 in Length, HM Chipbreaker, 0.0937 in Corner Radius, 0.312 in Hole Dia, Manufacturer's Grade: 4235, ANSI Code: SNMG 646-HM 4235, ISO Code: SNMG 19 06 24-HM 4235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, MTCVD Coated, Material Grade: M/P
ANSI Code SNMG 646-HM 4235 Catalog Number 5908014 Corner Radius 0.0937 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.6700 lb Hole Diameter 0.312 in Included Angle 90 ° ISO Code SNMG 19 06 24-HM 4235 Length 3/4 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826264011 Width 3/4 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker HM Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 3/4 in Insert Size 646 Insert Style SNMG Manufacturer's Grade 4235 Material Carbide Material Grade K, M, P Maximum Depth of Cut 10 mm Rake Negative Seat Size 19 Shape Square Straight hole and non-flat surface clamping interface 2-side cutting +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance ER treated cutting edge Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials For external turning operations and internal machining 0.3 - 1.2 mm/r cutting feed 20 life cycle state
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SNMG 646-HM 4235 |
| Catalog Number | 5908014 |
| Corner Radius | 0.0937 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.6700 lb |
| Hole Diameter | 0.312 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 19 06 24-HM 4235 |
| Length | 3/4 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826264011 |
| Width | 3/4 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | HM |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 3/4 in |
| Insert Size | 646 |
| Insert Style | SNMG |
| Manufacturer's Grade | 4235 |
| Material | Carbide |
| Material Grade | K, M, P |
| Maximum Depth of Cut | 10 mm |
| Rake | Negative |
| Seat Size | 19 |
| Shape | Square |
| Straight hole and non-flat surface clamping interface |
| 2-side cutting |
| +/-0.13 mm THK and +/-0.10 mm inscribed circle tolerance |
| ER treated cutting edge |
| Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials |
| For external turning operations and internal machining |
| 0.3 - 1.2 mm/r cutting feed |
| 20 life cycle state |
