Sandvik Coromant

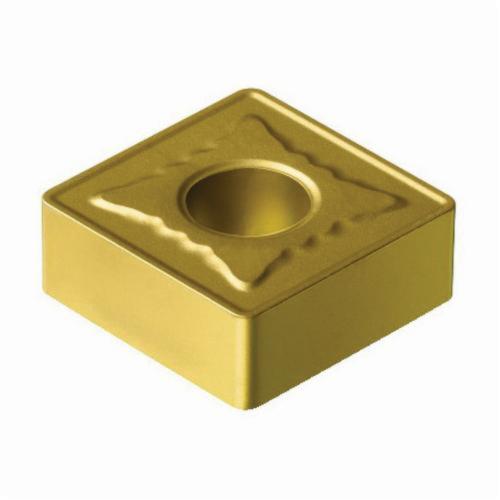

Sandvik Coromant 5750363 T-Max® P Negative Basic Shape Turning Insert, SNMG 544-MR 235, S-Square, SNMG Insert, 235, Carbide
Custom_Product_Images_Illustration
Sandvik Coromant
Sandvik Coromant 5750363 T-Max® P Negative Basic Shape Turning Insert, SNMG 544-MR 235, S-Square, SNMG Insert, 235, Carbide
SKU1238996
MFGR #5750363
Your Cost: $26.29/ea
List: Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10.7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, MR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: SNMG 544-MR 235, ISO Code: SNMG 15 06 16-MR 235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Sandvik Coromant Turning Insert, Negative Basic Shape, Series: T-Max® P, SNMG Insert, S-Square, 10.7 mm Maximum Depth of Cut, 5/8 in Inscribed Circle, 1/4 in Thickness, 5/8 in Length, MR Chipbreaker, 0.0624 in Corner Radius, 1/4 in Hole Dia, Manufacturer's Grade: 235, ANSI Code: SNMG 544-MR 235, ISO Code: SNMG 15 06 16-MR 235, 90 deg Included Angle, 0 deg Relief Angle, Neutral Hand, Carbide, CVD Coated, Material Grade: M/P
Alternate Catalog Number SNMG 544-MR 235 ANSI Code SNMG 544-MR 235 Catalog Number 5750363 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+TiN Coated Gross Weight Per Pack 0.4900 lb Hole Diameter 1/4 in Included Angle 90 ° ISO Code SNMG 15 06 16-MR 235 Item Group 110 Length 5/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826272434 Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Stainless Steel and Steel Inscribed Circle 5/8 in Insert Size 544 Insert Style SNMG Manufacturer's Grade 235 Material Carbide Material Grade M, P Maximum Depth of Cut 9.6 mm Rake Negative Seat Size 15 Shape Square Universal insert for operations from finishing to medium machining Can also be used for counterboring Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times Mechanical post-treatment - unique residual stress rate, increased process reliability Large, universal chip breaking area and longer tool life for ISO P geometries Ground seating surface after coating for improved process reliability when working with interrupted cuts Silver flank face indicator layer for extremely easy wear detection Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation Extremely smooth rake face for excellent tribochemical wear resistance
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Alternate Catalog Number | SNMG 544-MR 235 |
| ANSI Code | SNMG 544-MR 235 |
| Catalog Number | 5750363 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+TiN Coated |
| Gross Weight Per Pack | 0.4900 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 15 06 16-MR 235 |
| Item Group | 110 |
| Length | 5/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826272434 |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Stainless Steel and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 544 |
| Insert Style | SNMG |
| Manufacturer's Grade | 235 |
| Material | Carbide |
| Material Grade | M, P |
| Maximum Depth of Cut | 9.6 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Square |
| Universal insert for operations from finishing to medium machining |
| Can also be used for counterboring |
| Aluminum oxide with optimized microstructure offers a 50% longer tool life under conditions of crater wear and also reduced machining times |
| Mechanical post-treatment - unique residual stress rate, increased process reliability |
| Large, universal chip breaking area and longer tool life for ISO P geometries |
| Ground seating surface after coating for improved process reliability when working with interrupted cuts |
| Silver flank face indicator layer for extremely easy wear detection |
| Microedge technology offers a 30% longer tool life under conditions of flank face wear or plastic deformation |
| Extremely smooth rake face for excellent tribochemical wear resistance |
