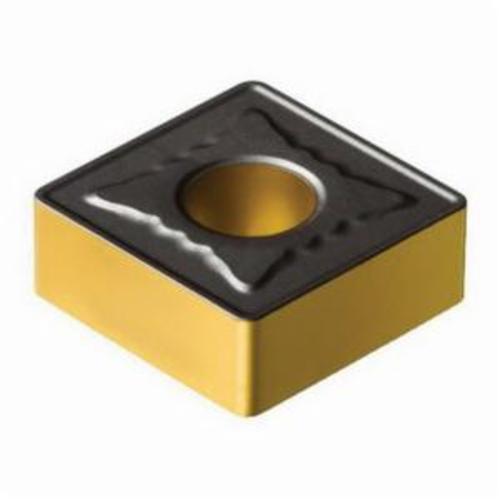

Sandvik Coromant 5750293 T-Max® P 2-Sided Turning Insert, SNMG 544-MR 4215, S-Square, SNMG-MR (ISO P) Insert, 4215
Custom_Product_Images_Illustration
Sandvik Coromant 5750293 T-Max® P 2-Sided Turning Insert, SNMG 544-MR 4215, S-Square, SNMG-MR (ISO P) Insert, 4215
SKU1239000
MFGR #5750293
Your Cost: $24.90/ea
List: T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
T-Max® P is your first choice for general turning, stretching from small components to heavy machining. the inserts fit into all Sandvik Coromant high-performance holding systems and can be used in a variety of applications in all materials. Geometries specifically designed for high-pressure coolant are available for steel, stainless steel, and HRSA materials.
ANSI Code SNMG 544-MR 4215 Catalog Number 5750293 Corner Radius 0.0624 in Country of Origin SE Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.4900 lb Hole Diameter 1/4 in Included Angle 90 ° ISO Code SNMG 15 06 16-MR 4215 Length 5/8 in Relief Angle 0 ° Series T-Max® P Thickness 1/4 in UPC 11 69826240171 Width 5/8 in Stock Status NONSTOCK Brand Sandvik Coromant Manufacturer Sandvik Coromant Chipbreaker MR Cutting Direction Neutral For Use On Cast Iron, Stainless Steel and Steel Inscribed Circle 5/8 in Insert Size 544 Insert Style SNMG Manufacturer's Grade 4215 Material Carbide Material Grade K, M, P Maximum Depth of Cut 9.6 mm Rake Negative Seat Size 15 Shape Square PCD finishing insert with circumference fully ground in G tolerance Extremely low cutting forces due to 7 to 10 deg rake angle Extremely high surface quality Straight hole and non-flat surface clamping interface 14.27 mm L effective cutting edge M tolerance class 0.35 - 0.9 mm/r cutting feed 30 life cycle state Negative basic shape inserts for high-performance turning Double sided inserts with strong edges Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility Precision nozzles and optimized geometries for high precision coolant machining Dedicated grades and geometries for all applications and materials Productive solution with wiper and Xcel technologies Tools featuring high precision coolant for excellent chip breaking Reliable and secure machining, even in roughing applications Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling Negative rake
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | SNMG 544-MR 4215 |
| Catalog Number | 5750293 |
| Corner Radius | 0.0624 in |
| Country of Origin | SE |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.4900 lb |
| Hole Diameter | 1/4 in |
| Included Angle | 90 ° |
| ISO Code | SNMG 15 06 16-MR 4215 |
| Length | 5/8 in |
| Relief Angle | 0 ° |
| Series | T-Max® P |
| Thickness | 1/4 in |
| UPC 11 | 69826240171 |
| Width | 5/8 in |
| Stock Status | NONSTOCK |
| Brand | Sandvik Coromant |
| Manufacturer | Sandvik Coromant |
| Chipbreaker | MR |
| Cutting Direction | Neutral |
| For Use On | Cast Iron, Stainless Steel and Steel |
| Inscribed Circle | 5/8 in |
| Insert Size | 544 |
| Insert Style | SNMG |
| Manufacturer's Grade | 4215 |
| Material | Carbide |
| Material Grade | K, M, P |
| Maximum Depth of Cut | 9.6 mm |
| Rake | Negative |
| Seat Size | 15 |
| Shape | Square |
| PCD finishing insert with circumference fully ground in G tolerance |
| Extremely low cutting forces due to 7 to 10 deg rake angle |
| Extremely high surface quality |
| Straight hole and non-flat surface clamping interface |
| 14.27 mm L effective cutting edge |
| M tolerance class |
| 0.35 - 0.9 mm/r cutting feed |
| 30 life cycle state |
| Negative basic shape inserts for high-performance turning |
| Double sided inserts with strong edges |
| Lever clamping for wet machining, RC-clamping for dry machining and short chip materials, Wedge clamp for improved accessibility |
| Precision nozzles and optimized geometries for high precision coolant machining |
| Dedicated grades and geometries for all applications and materials |
| Productive solution with wiper and Xcel technologies |
| Tools featuring high precision coolant for excellent chip breaking |
| Reliable and secure machining, even in roughing applications |
| Suitable for internal turning of large diameter bores, finishing to heavy roughing, railway wheel turning and bar peeling |
| Negative rake |
