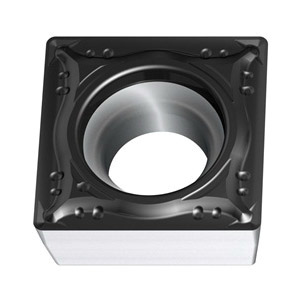

Valenite Tiger-tec® Silver 7021263 Positive Single Sided Turning Insert, SCGT3(2.5)2-MM4 WSM01 ANSI, Square, Carbide
SCGT Turning Inserts
PDW~12067131
MFG #: SCGT3(2.5)2-MM4WSM01
Walter (Valentine)
23.90000
/ ea
- ANSI Code: SCGT3(2.5)2-MM4 WSM01
- Catalog Number: SCGT3(2.5)2-MM4WSM01
- Corner Radius: 0.8 mm
- Country of Origin: DE
- Finish: PVD Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Neutral
- Hole Diameter: 4.4 mm
- Included Angle: 90 deg
- ISO Code: SCGT09T308-MM4 WSM01
- Length: 9.525 mm
- Relief Angle: 7 deg
- Sub Brand: Tiger-tec®
- Thickness: 3.97 mm
- Type: Positive Single Sided
- Width: 9.525 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: MM4
- Inscribed Circle: 9.525 mm
- Insert Style: SCGT
- Manufacturer's Grade: WSM01
- Material: Carbide
- Material Grade: M/P
- Maximum Depth of Cut: 3 mm
- Shape: Square
- Features
| MM4 Geometry - Periphery precision sintered/precision ground |
| Secondary chip breaker groove |
| Can be used universally in a wide range of applications |
| Medium machining of stainless steels, high temperature alloys and steel |
| Machining of long chipping materials |
| 40 to 60 deg double countersink hole |
| 4 cutting edges |
| WSM01 - Applicable on high temperature alloys and austenitic stainless steels |
| +/-0.025 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| +/-0.025 mm inscribed circle tolerance |
| 0.12 to 0.32 mm feed/rev |
| 9.525 mm cutting edge length |
| 11 deg rake |
