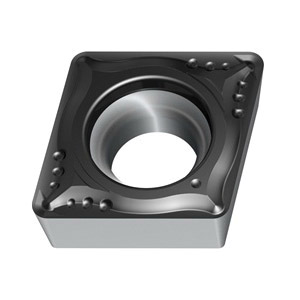

Valenite Tiger-tec® Silver 7021253 Positive Single Sided Turning Insert, CPGT3(2.5)0.2-MM4 WSM01 ANSI, Rhombic
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 7021253 Positive Single Sided Turning Insert, CPGT3(2.5)0.2-MM4 WSM01 ANSI, Rhombic
SKUPDW~12065133
MFGR #CPGT3(2.5)0.2-MM4WSM01
Your Cost: $38.98/ea
VALENITE Tiger-tec® Silver Turning Insert, Positive Single Sided, CPGT Insert, Rhombic, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.97 mm Thickness, MM4 Chipbreaker, 0.1 mm Corner Radius, Manufacturer's Grade: WSM01, ANSI Code: CPGT3(2.5)0.2-MM4 WSM01, ISO Code: CPGT09T301-MM4 WSM01, 80 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P
VALENITE Tiger-tec® Silver Turning Insert, Positive Single Sided, CPGT Insert, Rhombic, 3 mm Maximum Depth of Cut, 9.525 mm Inscribed Circle, 3.97 mm Thickness, MM4 Chipbreaker, 0.1 mm Corner Radius, Manufacturer's Grade: WSM01, ANSI Code: CPGT3(2.5)0.2-MM4 WSM01, ISO Code: CPGT09T301-MM4 WSM01, 80 deg Included Angle, 11 deg Relief Angle, Neutral Hand, Carbide, PVD Coated, Material Grade: M/P
ANSI Code CPGT3(2.5)0.2-MM4 WSM01 Catalog Number CPGT3(2.5)0.2-MM4WSM01 Corner Radius 0.1 mm Finish PVD Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Included Angle 80 deg ISO Code CPGT09T301-MM4 WSM01 Relief Angle 11 deg Sub Brand Tiger-tec® Thickness 3.97 mm Type Positive Single Sided Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker MM4 Inscribed Circle 9.525 mm Insert Style CPGT Manufacturer's Grade WSM01 Material Carbide Material Grade M/P Maximum Depth of Cut 3 mm Shape Rhombic MM4 Geometry - Periphery precision sintered/precision ground Secondary chip breaker groove Can be used universally in a wide range of applications Medium machining of stainless steels, high temperature alloys and steel Machining of long chipping materials 40 to 60 deg double countersink hole WSM01 - Applicable on high temperature alloys and austenitic stainless steels +/-0.025 mm corner point tolerance +/-0.13 mm thickness tolerance +/-0.025 mm inscribed circle tolerance 0.06 to 0.2 mm feed/rev 9.67 mm cutting edge length
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | CPGT3(2.5)0.2-MM4 WSM01 |
| Catalog Number | CPGT3(2.5)0.2-MM4WSM01 |
| Corner Radius | 0.1 mm |
| Finish | PVD Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Included Angle | 80 deg |
| ISO Code | CPGT09T301-MM4 WSM01 |
| Relief Angle | 11 deg |
| Sub Brand | Tiger-tec® |
| Thickness | 3.97 mm |
| Type | Positive Single Sided |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | MM4 |
| Inscribed Circle | 9.525 mm |
| Insert Style | CPGT |
| Manufacturer's Grade | WSM01 |
| Material | Carbide |
| Material Grade | M/P |
| Maximum Depth of Cut | 3 mm |
| Shape | Rhombic |
| MM4 Geometry - Periphery precision sintered/precision ground |
| Secondary chip breaker groove |
| Can be used universally in a wide range of applications |
| Medium machining of stainless steels, high temperature alloys and steel |
| Machining of long chipping materials |
| 40 to 60 deg double countersink hole |
| WSM01 - Applicable on high temperature alloys and austenitic stainless steels |
| +/-0.025 mm corner point tolerance |
| +/-0.13 mm thickness tolerance |
| +/-0.025 mm inscribed circle tolerance |
| 0.06 to 0.2 mm feed/rev |
| 9.67 mm cutting edge length |
