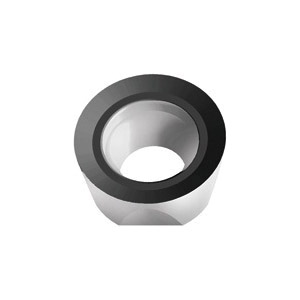

Valenite Tiger-tec® Silver 6161473 Positive Indexable Milling Insert, ROHX0803M0-D57 WSM35S ANSI, Round, ROHX Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 6161473 Positive Indexable Milling Insert, ROHX0803M0-D57 WSM35S ANSI, Round, ROHX Insert
SKUPDW~10507021
MFGR #ROHX0803M0-D57WSM35S
Your Cost: $20.56/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code ROHX0803M0-D57 WSM35S Catalog Number ROHX0803M0-D57WSM35S Corner Radius 4 mm Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 1 lb Hand of Insert Neutral Hole Diameter 3.4 mm ISO Code ROHX0803M0-D57 WSM35S Lead Angle 11 ° Material Application Stainless Steel, Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys Series Tiger?tec® Silver Sub Brand Tiger-tec® Thickness 3.18 mm Width 8 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker D57 Inscribed Circle 8 mm Insert Size 0803 Insert Style ROHX Manufacturer's Grade WSM35S Material Carbide Material Grade M, S Rake Positive Shape Round Mechanical post-treatment - unique residual stress condition, increased process reliabilityExtremely smooth rake face for optimum tribochemical wear resistanceSilver flank face indicator layer for extremely easy wear detection For average machining conditions Can be used universally One wave on the flank face +/-0.013 mm cutting edge tolerance +/-0.013 mm inscribed circle tolerance +/-0.025 mm thickness tolerance 4 cutting edges
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | ROHX0803M0-D57 WSM35S |
| Catalog Number | ROHX0803M0-D57WSM35S |
| Corner Radius | 4 mm |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Neutral |
| Hole Diameter | 3.4 mm |
| ISO Code | ROHX0803M0-D57 WSM35S |
| Lead Angle | 11 ° |
| Material Application | Stainless Steel, Heat Resistant Special Alloys Based on Iron, Nickel and Cobalt, Titanium and Titanium Alloys |
| Series | Tiger?tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 3.18 mm |
| Width | 8 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | D57 |
| Inscribed Circle | 8 mm |
| Insert Size | 0803 |
| Insert Style | ROHX |
| Manufacturer's Grade | WSM35S |
| Material | Carbide |
| Material Grade | M, S |
| Rake | Positive |
| Shape | Round |
| Mechanical post-treatment - unique residual stress condition, increased process reliabilityExtremely smooth rake face for optimum tribochemical wear resistanceSilver flank face indicator layer for extremely easy wear detection |
| For average machining conditions |
| Can be used universally |
| One wave on the flank face |
| +/-0.013 mm cutting edge tolerance |
| +/-0.013 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 4 cutting edges |
