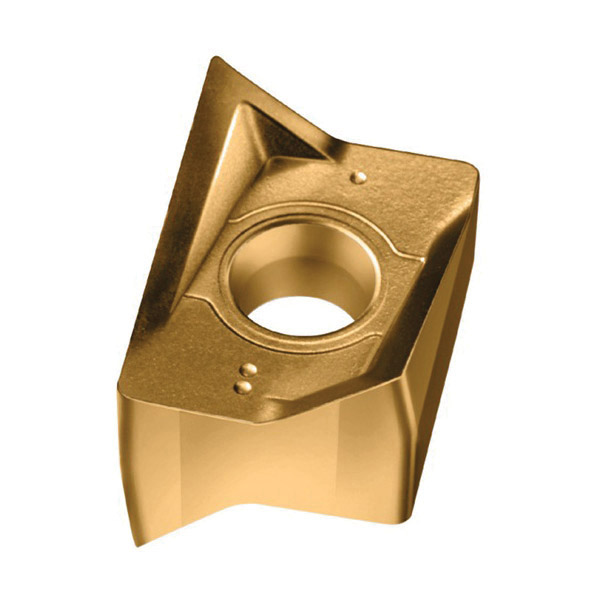

Valenite Tiger-tec® Gold 7170558 Negative Indexable Milling Insert, LNGX130720R-L55 WKP35G ANSI, Rhombic, LNGX Insert
LNGX Milling Inserts
PDW~12584272
MFG #: LNGX130720R-L55WKP35G
Walter (Valentine)
30.80000
/ ea
- ANSI Code: LNGX130720R-L55 WKP35G
- Catalog Number: LNGX130720R-L55WKP35G
- Corner Radius: 2 mm
- Country of Origin: DE
- Finish: CVD-TiAlN+TiN Coated
- Gross Weight Per Pack: 0.0100 lb
- Hand of Insert: Right
- Hole Diameter: 4.4 mm
- ISO Code: LNGX130720R-L55 WKP35G
- Lead Angle: 0 °
- Length: 13.7 mm
- Material Application: Cast Iron and Steel
- Series: Tiger?tec® Gold
- Sub Brand: Tiger-tec®
- Thickness: 7.74 mm
- Type: Single Sided
- Width: 11 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: L55
- Inscribed Circle: 0.433 in
- Insert Size: 130720
- Insert Style: LNGX
- Manufacturer's Grade: WKP35G
- Material: Carbide
- Material Grade: K, P
- Rake: Negative
- Shape: Rhombic
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance |
| For medium machining conditions |
| Universal application for most materials |
| Optimized wear characteristics for a significantly longer tool life |
| Optimum cutting data due to a reduction in visible wear rate |
| Maximum process reliability thanks to the tough cutting edge |
| Gold colored top layer provides optimum wear detection |
| Excellent combination of wear resistance and toughness for milling |
| For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 0.7 mm width face chamfer |
| 4 cutting edges |
