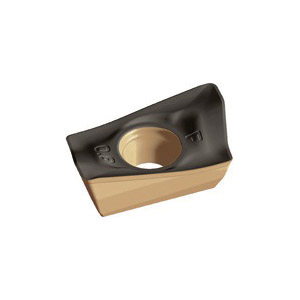

Valenite Tiger-tec® Gold 6841370 Positive Single Sided Indexable Milling Insert, ADMT10T308R-F56 WSM45X ANSI, Rhombic
Custom_Product_Images_Illustration
Valenite Tiger-tec® Gold 6841370 Positive Single Sided Indexable Milling Insert, ADMT10T308R-F56 WSM45X ANSI, Rhombic
SKUPDW~12064557
MFGR #ADMT10T308R-F56WSM45X
Your Cost: $43.55/ea
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
ANSI Code ADMT10T308R-F56 WSM45X Catalog Number ADMT10T308R-F56WSM45X Corner Radius 0.8 mm Country of Origin DE Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 2.8 mm ISO Code ADMT10T308R-F56 WSM45X Lead Angle 15 ° Length 11.3 mm Material Application Stainless Steel, Super Alloys and Titanium Series Tiger?tec® Silver Sub Brand Tiger-tec® Thickness 3.97 mm Type Single Sided Width 7.25 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker F56 Inscribed Circle 7.25 mm Insert Size 10T308 Insert Style ADMT Manufacturer's Grade WSM45X Material Carbide Material Grade M, S Rake Positive Shape Rhombic Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection For medium machining conditions Universal application for most materials 0.08 to 0.2 mm cutting edge tolerance 0.05 to 0.15 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 1.2 mm width face chamfer 2 cutting edges 40 to 60 deg double countersink hole
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | ADMT10T308R-F56 WSM45X |
| Catalog Number | ADMT10T308R-F56WSM45X |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 2.8 mm |
| ISO Code | ADMT10T308R-F56 WSM45X |
| Lead Angle | 15 ° |
| Length | 11.3 mm |
| Material Application | Stainless Steel, Super Alloys and Titanium |
| Series | Tiger?tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 3.97 mm |
| Type | Single Sided |
| Width | 7.25 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | F56 |
| Inscribed Circle | 7.25 mm |
| Insert Size | 10T308 |
| Insert Style | ADMT |
| Manufacturer's Grade | WSM45X |
| Material | Carbide |
| Material Grade | M, S |
| Rake | Positive |
| Shape | Rhombic |
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For medium machining conditions |
| Universal application for most materials |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
