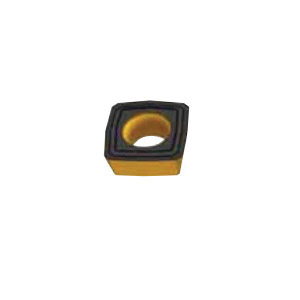

Valenite Tiger-tec® 5023952 Indexable Drilling Insert, P28475-6 WTP35 ANSI, Square, 4.76 mm THK, P28475-6 WTP35 ISO
P284 Drilling Inserts
PDW~9955769
MFG #: P28475-6WTP35
Walter (Valentine)
20.70000
/ ea
- ANSI Code: P28475-6 WTP35
- Catalog Number: P28475-6WTP35
- Country of Origin: DE
- Finish: Coated
- Gross Weight Per Pack: 0.0200 lb
- Hand of Insert: Right
- Included Angle: 96 deg
- ISO Code: P28475-6 WTP35
- Length: 15 mm
- Sub Brand: Tiger-tec®
- Thickness: 4.76 mm
- Width: 15 mm
- Stock Status: NONSTOCK
- Brand: Walter (Valentine)
- Manufacturer: Walter
- Chipbreaker: E57
- Inscribed Circle: 15 mm
- Insert Style: P284
- Manufacturer's Grade: WTP35
- Material: Carbide
- Material Grade: K/M/N/P/S
- Shape: Square
- Features
| E57 Geometry - The universal one |
| For moderate machining conditions |
| For cast iron and steel, but also for stainless materials and materials that are difficult to cut |
| 1 mm corner facet length |
| 0 deg corner chamfer |
| 4 cutting edges |
| 15 mm cutting edge length |
| 13 deg rake |
| 11 deg clearance |
