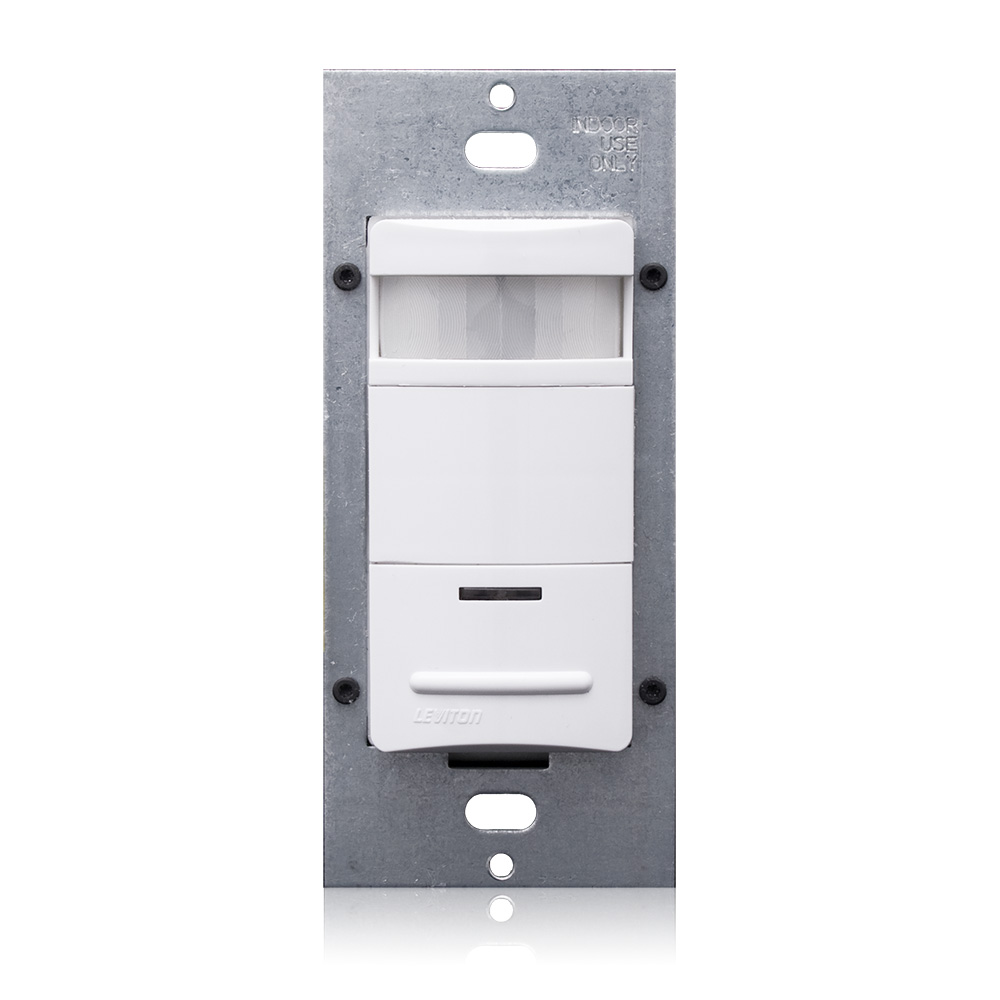

Leviton® Lev-Lok® MDS10-IDW 1-Pole Low-Profile Photocell Controlled Single Relay Occupancy Sensor, 120/230/277 VAC, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mount
Custom_Product_Images_Illustration
Leviton®
Leviton® Lev-Lok® MDS10-IDW 1-Pole Low-Profile Photocell Controlled Single Relay Occupancy Sensor, 120/230/277 VAC, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, Wall Mount
SKU1218066
MFGR #MDS10-IDW
Your Cost: $100.80/ea
Leviton® Lev-Lok® Occupancy Sensor, 1-Pole Low-Profile Photocell Controlled Single Relay, 120/230/277 VAC, 100/277 mW, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Manual On/Automatic Off Control Output, Wall Mount, 0 to 50 deg C, White, 46 in H x 1.75 in W x 2.67 in D
Leviton® Lev-Lok® Occupancy Sensor, 1-Pole Low-Profile Photocell Controlled Single Relay, 120/230/277 VAC, 100/277 mW, PIR Sensor, 2100 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Delay, Fluorescent/Incandescent Lamp, 50/60 Hz Response, Manual On/Automatic Off Control Output, Wall Mount, 0 to 50 deg C, White, 46 in H x 1.75 in W x 2.67 in D
Application Small Offices, Conference Rooms, Classrooms, Lounges and Commercial Applications ARRA Compliant C Buy American Compliant C Catalog Number MDS10-IDW Color White Control Output Manual On/Automatic Off Country of Origin CN Currency USD Dimensions 46 in H x 1.75 in W x 2.67 in D Environmental Conditions Operating Temperature Range (0 to +50 DEG C);Humidity (20% to 90% Non-Condensing) EU RoHS Indicator C Frequency Rating 50/60 Hz Gross Weight Per Pack 0.3900 lb Gross Weight per Pack Metric 0.18 Gross Weight UOM Metric kg Hazard Class N Height 4.6250 in Height [Metric] 10.4775 cm Lamp Type Fluorescent/Incandescent Length 12.7500 in Length [Metric] 6.1925 cm Mounting Wall Switch Power Consumption 100 (120 V);277 (250 V) MILWTT Power Rating 100/277 Response Frequency 50/60 Size 46 H x 1.75 W x 2.67 D IN Standard UL\cUL Listed, Complies with CEC Title 24, Complies with FCC Regulations, NOM Supply Voltage 120/230/277 VAC Temperature Rating 0 to 50 Time Delay 30 s to 30 min Type 1-Pole Low-Profile Photocell Controlled Single Relay UNSPSC 45111808 UPC 11 07847754463 UPC 12 078477544631 Width 2.44 in Width [Metric] 6.1925 cm Stock Status NONSTOCK Brand Leviton® Manufacturer Leviton Manufacturing Co., Inc. Coverage 2100 Mounting Type Wall Sensor Type PIR Viewing Angle 180 Voltage Rating 120/230/277 Small Offices, Conference Rooms, Classrooms, Lounges and Commercial Applications Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, Gangable With Other Units, Convenient Pushbutton Provides Manual On/Off Light Switching at any Time, Two Dual Element PIR Sensors used to Widen Detection Range, Vandal Resistant PIR Lens, Fals Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units Low profile design eliminates obtrusive "scanning-device" look Elegant Decora® wallplates compliment any interior for sleek aesthetics, uses Decora® wallplates Two dual element PIR sensors used to widen detection range Segmented fresnel lens provides optimum sensitivity and performance designed with an Vandal resistant PIR lens Lev-Lok® makes installation and replacement simple with latch and lock system which streamlines The Lev-Lok® wiring module is keyed so that it cannot be installed incorrectly, saving time d Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinde Red LED indicator light flashes when sensor detects motion to verify detection is active Time delay a
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | Small Offices, Conference Rooms, Classrooms, Lounges and Commercial Applications |
| ARRA Compliant | C |
| Buy American Compliant | C |
| Catalog Number | MDS10-IDW |
| Color | White |
| Control Output | Manual On/Automatic Off |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 46 in H x 1.75 in W x 2.67 in D |
| Environmental Conditions | Operating Temperature Range (0 to +50 DEG C);Humidity (20% to 90% Non-Condensing) |
| EU RoHS Indicator | C |
| Frequency Rating | 50/60 Hz |
| Gross Weight Per Pack | 0.3900 lb |
| Gross Weight per Pack Metric | 0.18 |
| Gross Weight UOM Metric | kg |
| Hazard Class | N |
| Height | 4.6250 in |
| Height [Metric] | 10.4775 cm |
| Lamp Type | Fluorescent/Incandescent |
| Length | 12.7500 in |
| Length [Metric] | 6.1925 cm |
| Mounting | Wall Switch |
| Power Consumption | 100 (120 V);277 (250 V) MILWTT |
| Power Rating | 100/277 |
| Response Frequency | 50/60 |
| Size | 46 H x 1.75 W x 2.67 D IN |
| Standard | UL\cUL Listed, Complies with CEC Title 24, Complies with FCC Regulations, NOM |
| Supply Voltage | 120/230/277 VAC |
| Temperature Rating | 0 to 50 |
| Time Delay | 30 s to 30 min |
| Type | 1-Pole Low-Profile Photocell Controlled Single Relay |
| UNSPSC | 45111808 |
| UPC 11 | 07847754463 |
| UPC 12 | 078477544631 |
| Width | 2.44 in |
| Width [Metric] | 6.1925 cm |
| Stock Status | NONSTOCK |
| Brand | Leviton® |
| Manufacturer | Leviton Manufacturing Co., Inc. |
| Coverage | 2100 |
| Mounting Type | Wall |
| Sensor Type | PIR |
| Viewing Angle | 180 |
| Voltage Rating | 120/230/277 |
| Small Offices, Conference Rooms, Classrooms, Lounges and Commercial Applications |
| Fits in Standard Wallbox and Replaces Single-Pole Wall Switch, Gangable With Other Units, Convenient Pushbutton Provides Manual On/Off Light Switching at any Time, Two Dual Element PIR Sensors used to Widen Detection Range, Vandal Resistant PIR Lens, Fals |
| Fits in standard wallbox and replaces 1-pole wall switch, gangable with other units |
| Low profile design eliminates obtrusive "scanning-device" look |
| Elegant Decora® wallplates compliment any interior for sleek aesthetics, uses Decora® wallplates |
| Two dual element PIR sensors used to widen detection range |
| Segmented fresnel lens provides optimum sensitivity and performance designed with an |
| Vandal resistant PIR lens |
| Lev-Lok® makes installation and replacement simple with latch and lock system which streamlines |
| The Lev-Lok® wiring module is keyed so that it cannot be installed incorrectly, saving time d |
| Horizontal field-of-view may be adjusted between 180 and 60 deg of arc by using integral blinde |
| Red LED indicator light flashes when sensor detects motion to verify detection is active |
| Time delay a |
