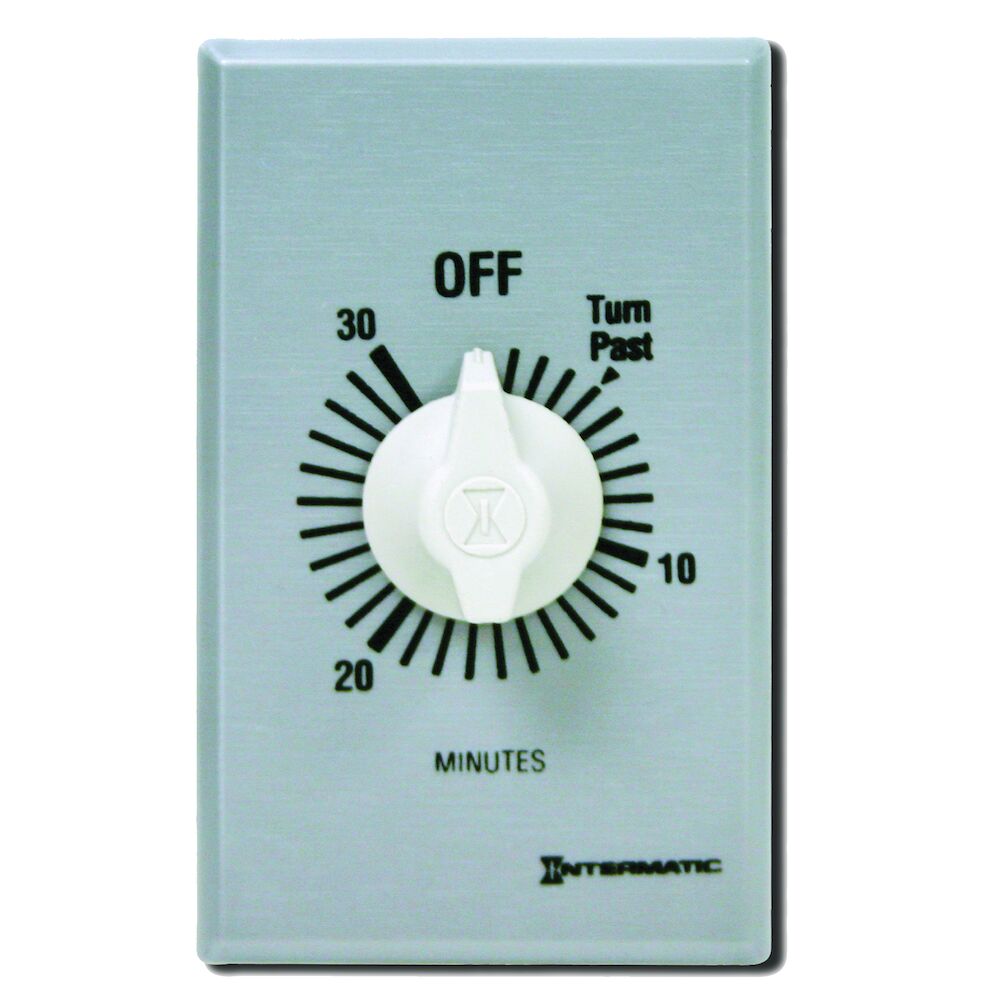

Intermatic® FF330M FF Series Mechanical Spring Wound Timer, 30 min Time Setting, 125/277 VAC, 1 hp/2 hp, 1 Pole
Spring Wound Timers
355192
MFG #: FF330M
Intermatic®
83.80000
/ ea
- Action: 1 x SPDT
- Amperage Rating: 15 A
- Application: Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: FF330M
- Connection: Teeter Type
- Contact Configuration: 1 NO/1 NC
- Contact Rating: 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
- Country of Origin: TN
- Currency: USD
- Dimensions: 2.79 in H x 1.6 in W x 1.19 in D
- Electrical Connections: Teeter
- EU RoHS Indicator: X
- Gross Weight Per Pack: 2.4500 lb
- Gross Weight per Pack Metric: 0.19
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 9107008000
- Height: 4.63 in
- Height [Metric]: 11.7602 cm
- Length: 2.90 in
- Length [Metric]: 7.3660 cm
- Mounting: Wall Mount
- Mounting Type: Wall
- Series: FF Series
- Size: 2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
- Standard: cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC
- Standards: cCSAus Certified, HVACR, NEC, RoHS certified, UL Listed, UL Recognized
- Temperature Rating: -40 to 104 °F
- Timer Duration: 30 mins
- Timing Range: 0-30 mins
- Type: Commercial Spring Wound Auto-Off
- UNSPSC: 39122208
- UPC 11: 07827506927
- UPC 12: 07827506927
- Width: 2.10 in
- Width [Metric]: 5.3340 cm
- Stock Status: NONSTOCK
- Brand: Intermatic®
- Manufacturer: Intermatic Incorporated
- Contact Form: 1NO-1NC SPDT
- Horsepower: 1, 2 hp
- Time Setting: 30 mins
- Voltage Rating: 125 to 277 VAC
- Number Of Poles: 1
- Applications
- Features
| Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| Features: Energy-Efficient Mechanical Timers do not require Electricity to Operate, Automatically Limit the ON Times, Rugged Time Dial Plate Easily withstands the Abuse Encountered in Commercial Environments, Commercial "Brushed Metal" (Plastic Construction) look meets NEC Requirements, Press-On Knob Design Ensures Quick and Easy Installation, CFL Compatible, Provide Direct Replacement of a Standard Wall Switch in a Single Gang 2-1/2 IN Deep Junction Boxes, Spiral Time Scale to Provide Easy Selection of the Time Setting, Standard Industry Accepted Molded Plate and Knob, Secure Teeter-Type Terminal, 1 Year Warranty |
| Commercial auto-off timer |
| Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates |
| Single or multi-gang with no field modifications required |
| Time saving up front terminal connection with teeter-type terminals |
| Energy-efficient mechanical timers do not require electricity to operate |
| Automatically limit the ON times |
| Incandescent/fluorescent/CFL/LED compatible |
| Provide direct replacement of a standard wall switch in a single gang 2-1/2 in deep junction boxes |
| Spiral time scale to provide easy selection of the time setting |
| Standard industry accepted molded plate and knob |
| Press-on knob design ensures quick and easy installation |
| Rugged time dial plate easily withstands the abuse encountered in commercial environments |
| 7 A at 125 VAC (tungsten), 20 A at 125 VAC, 10 A at 250/277 VAC (resistive) |
| 1 hp at 120 VAC, 2 hp at 240 VAC |
| 50/60 Hz |
| No hold |
| Brushed metal finish |
