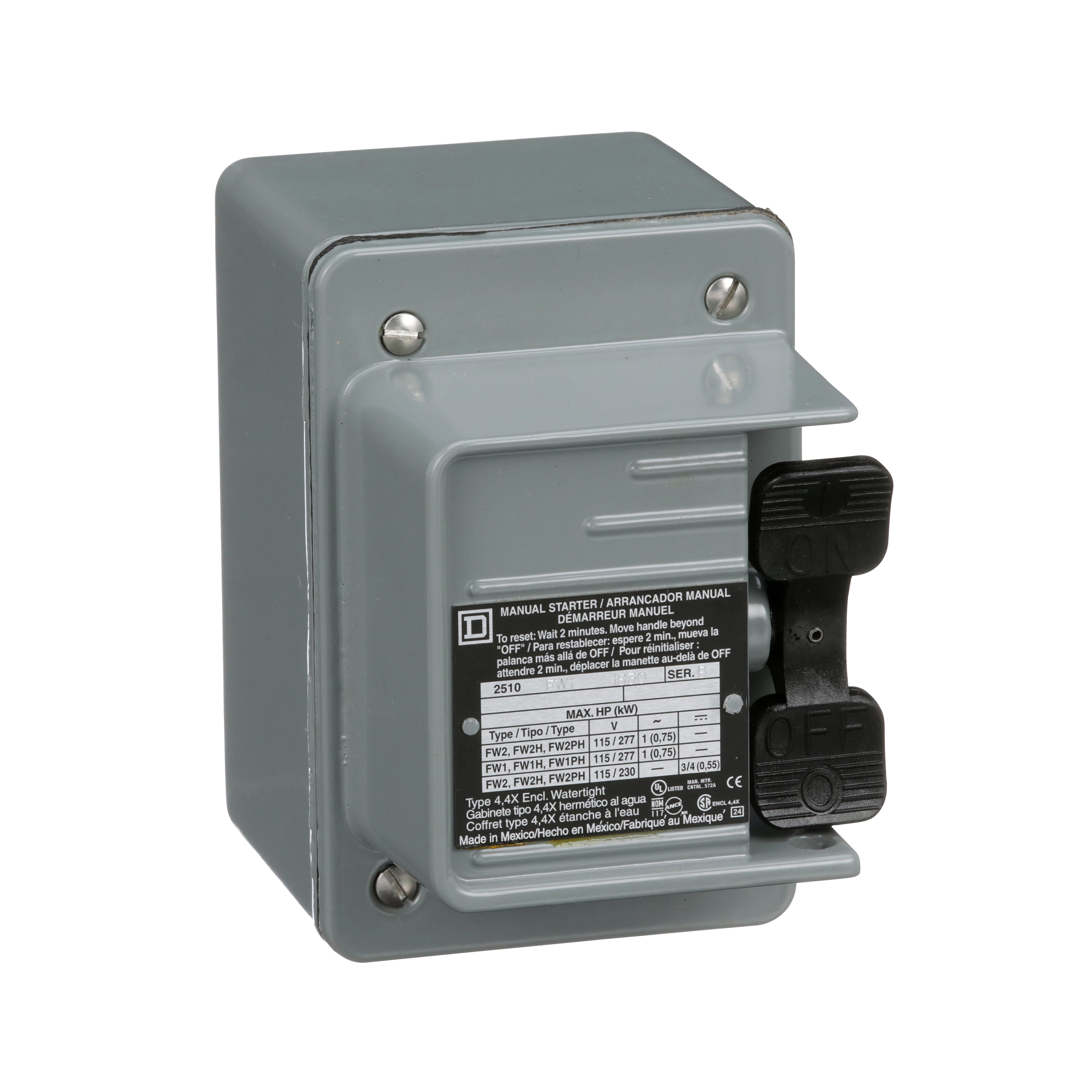

Square D™ 2510FW1H Type F Single Unit Manual Starter, 1 Poles, NEMA 4 Enclosure
Manual Starters
PDW~6429168
MFG #: 2510FW1H
Square D™
355.39000
/ ea
- Alternate Catalog Number: 2510FW1H
- Amperage Rating: 16
- Application: Fans, conveyors, pumps and small machine tools, provides overload protection as well as manual on/off control for small motors in a variety of industrial and commercial installations
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: 2510FW1H
- Connection: Screw clamp terminals
- Connection Type: Screw Clamp
- Control Type: LOCK-OFF Toggle Switch
- Country of Origin: MX
- Currency: USD
- Current Rating: 16 A
- Dimensions: 3 in W x 4.25 in D x 4.38 in H
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 91.37
- Gross Volume per Pack Metric: 1497.25
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 2.8530 lb
- Gross Weight per Pack Metric: 1.30
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536504000
- Height: 3.57 in
- Height [Metric]: 9.1440 cm
- Item Group: 21101
- Length: 5.35 in
- Length [Metric]: 13.7160 cm
- Material: Die Cast Zinc
- Motor Power: 1 hp at 115/230/277 VAC
- Operating Temperature: 0 to 40 deg C Ambient
- Phase: 1
- Reset Type: Thermal Melting Alloy
- Returnable: N
- Series: 2510
- Size: 4.25 in
- Standard: UL LISTED - CSA CERTIFIED - CE MARKED
- Sub Brand: F
- UNSPSC: 39121521
- UPC 11: 78590155434
- UPC 12: 785901554349
- Voltage Rating: 600 VAC/250 VDC VAC
- Warranty Description: Contractual Warranty:18 months
- Width: 4.66 in
- Width [Metric]: 11.9380 cm
- Brand: Square D™
- Manufacturer: Schneider Electric
- Enclosure Type: NEMA 4
- Type: Type F
- Number Of Poles: 1
Square D™ Single Unit Manual Starter, Type F, Series: 2510, 600 VAC/250 VDC, 16 A, 1 hp at 115/230/277 VAC Motor, 1 Pole, Thermal Melting Alloy Reset, 1 ph, Screw Clamp, LOCK-OFF Toggle Switch Control, NEMA 4, Die Cast Zinc, 0 to 40 deg C Ambient Operating, 3 in W x 4.25 in D x 4.38 in H
- Brochure URL - 11003_KHM5A8QDVJSLR0YN.pdf(Brochure URL)
- Brochure URL - 11003_RV0N78ZHFGT9KU45.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=Manual Motor Switch.pdf(Brochure URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_7CW8SHIV6DLXZQ40.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_2EKGDUA917BPOJHT.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_4GEF3ABROW7NTJS0.pdf(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=30068-447.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/w4BA4LqyfMo(Video)
- Applications
- Features
| Fans, conveyors, pumps and small machine tools, provides overload protection as well as manual on/off control for small motors in a variety of industrial and commercial installations |
| No indicator |
| Small size, economical |
| Simple design |
| Easy to install |
| Long lasting reliability |
| Both one-pole and two-pole versions are suitable for use with AC single phase motors rated up to 1 horsepower |
| NEMA 4 |
