Siemens 6EP13321SH71 SIMATIC Power Supply, 120/230 VAC Input, 24 VDC Output, 60 W, 1.2/0.67 A, DIN Rail Mount
DC Power Supplies
499111
MFG #: 6EP13321SH71
Siemens
146.00000
/ ea
- Alternate Catalog Number: 6EP1332-1SH71
- ARRA Compliant: C
- Buy American Compliant: C
- Catalog Number: 6EP13321SH71
- Country of Origin: AT
- Currency: USD
- Depth: 75
- EU RoHS Indicator: C
- Frequency Rating: 47 to 63 HZ
- Gross Volume Per Pack: 44.53
- Gross Volume UOM: in
- Gross Weight Per Pack: 0.7000 lb
- Gross Weight per Pack Metric: 0.30
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8504409520
- Height: 3.1500 in
- Height [Metric]: 8.0010 cm
- Length: 4.1700 in
- Length [Metric]: 10.5918 cm
- Returnable: Y
- Series: SIMATIC S7-1200
- Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantcULus (UL 508CSA C22.2 No. 107.1) File No. E197259cULus (UL 60950-1CSA C22.2 No. 60950-1) File No. E151273 Recognized
- Type: 1-Phase Stabilized
- UNSPSC: 39121026
- UPC 11: 04089254955
- UPC 12: 040892549553
- Width: 3.3900 in
- Width [Metric]: 8.6106 cm
- Stock Status: NONSTOCK
- Brand: Siemens
- Manufacturer: Siemens
- Amperage Rating: 2.5 A
- Input Voltage: 120/230 VAC
- Mounting Type: DIN Rail
- Output Voltage: 24 VDC
- Power Rating: 60 W
- 3D Rendering URL - G_KT01_XX_00390V.pdf(3D Rendering URL)
- Catalog URL - IDW_DOCUMENT_1479245191410.pdf(Catalog URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet URL - 10991_S6JHNFWREX9K4O7G.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6EP1332-1SH71&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6EP1332-1SH71&language=en(Spec Sheet URL)
- Tech Drawing URL - 10991_0C9DM6FX5BLY7ZQJ.jpg(Tech Drawing URL)

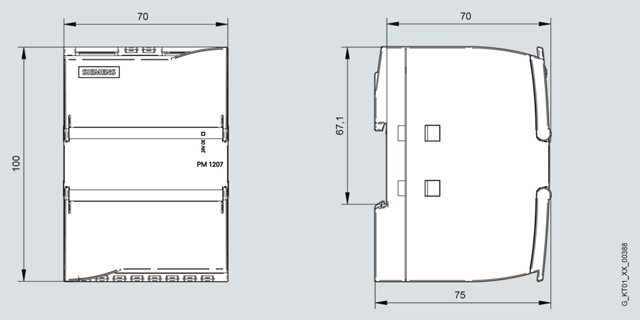

- Tech Drawing URL - ID-DRW-v1-G_KT01_XX_00388J.jpg(Tech Drawing URL)
- User Manual URL - man(User Manual URL)
- Video - http://www.automation.siemens.com/bilddb/download.aspx?reqInsID=741423(Video)
- Features
| The SIMATIC PM1207 single-phase load power supply (PM = power module) in SIMATIC S7-1200 design, at a width of just 70 mm, takes up little space in combination with the micro PLC. The 2.5 A power supply units supply CPUs with 24 V input, signal modules a |
| The SIMATIC PM1207 1-phase load power supply (PM = power module) in SIMATIC S7-1200 design, at a width of just 70 mm, takes up little space in combination with the micro PLC |
| LED for status indicator 24 V |
| Two 24 VDC output terminals for connection of 24 V consumers |
| Connection to all 1-phase networks (120 VAC/230 VAC) through automatic range switching |
| Short term power failure backup |
| Parallel connection of two load current supplies for enhanced performance |
| 1.2 A at 120 VAC, 0.67 A at 230 VAC input, 2.5 A output |
