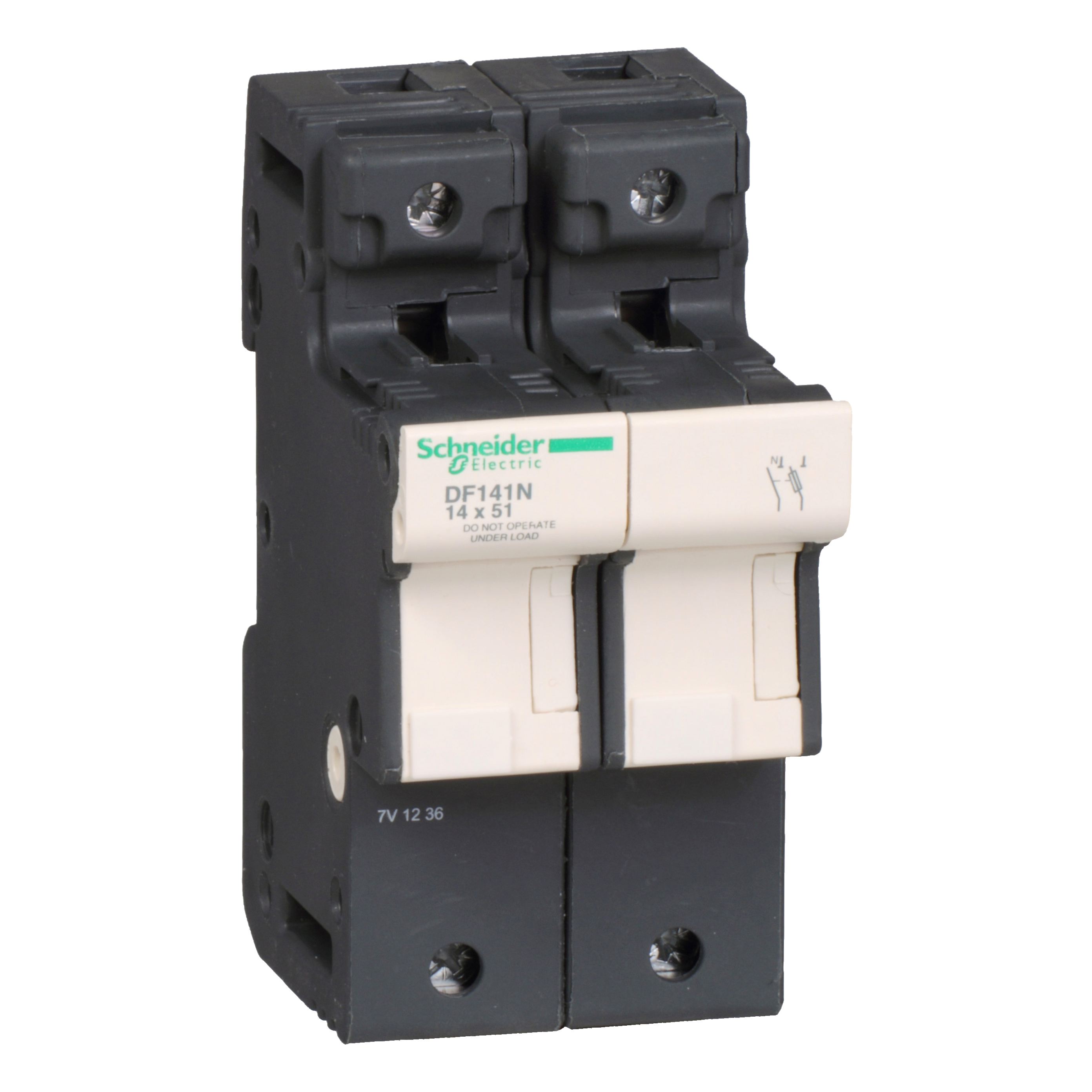

Schneider Electric Square D™ TeSys™ DF141N Fuse Holder, 600 V, 50 A, 1 Pole
UL Class Power Fuse Holders
PDW~11700758
MFG #: DF141N
Schneider Electric
85.50000
/ ea
- Alternate Catalog Number: DF141N
- Application: 14 x 51 mm
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: DF141N
- Connection: screw clamp terminals 1 2.5-25 mm²rigid; screw clamp terminals 2 2.5-10 mm²rigid; screw clamp terminals 1 2.5-25 mm²flexible with or without; screw clamp terminals 2 2.5-10 mm²flexible with or without
- Country of Origin: TN
- Currency: USD
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 59.85
- Gross Volume per Pack Metric: 980.76
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 0.5810 lb
- Gross Weight per Pack Metric: 264.00
- Gross Weight UOM Metric: g
- Harmonization Tariff Schedule Code: 8536509045
- Height: 2.07 in
- Height [Metric]: 5.3000 cm
- Item Group: 21714
- Length: 4.33 in
- Length [Metric]: 11.1000 cm
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=604666&lang=en-us
- Mounting: 35 mm symmetrical DIN rail;Vertical +/- 23?°)
- Returnable: N
- Size: 3.01 in
- Sub Brand: TESYS DF
- UNSPSC: 39121624
- Warranty Description: Contractual Warranty:18 months
- Width: 3.00 in
- Width [Metric]: 7.7000 cm
- Brand: Schneider Electric
- Manufacturer: Schneider Electric
- Type: FUSE CARRIER
- Brochure URL - 11003_HTUJC3SRKP8EDY1N.pdf(Brochure URL)
- Brochure URL - c3576fac1ae6e1c047f3e052b4bbd033227f1d42.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_7BVWSIXK2UTF1GD3.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_GTQU8NV73Z5S6BA1.pdf(Service Manual URL)
- Service Manual URL - 11003_L32VKXAS5TUQ8EDN.pdf(Service Manual URL)
- Spec Sheet URL - 11003_9ZGF5INJKHCQAU73.pdf(Spec Sheet URL)
- Applications
- Features
| 14 x 51 mm |
| Set of 3 |
| Compact size helps to reduce the overall size of the installation |
| Ergonomic handle for easier opening |
| Version for class CC fuses |
| Cylindrical cartridge fuses - 8 x 32, 10 x 38, 14 x 51 and 22 x 58 up to 690 V, from 25 to 125 A |
| LED blown fuse indicator |
| Dual position locking system for easy DIN-rail mounting |
| Protection against direct finger contact |
