Appleton™

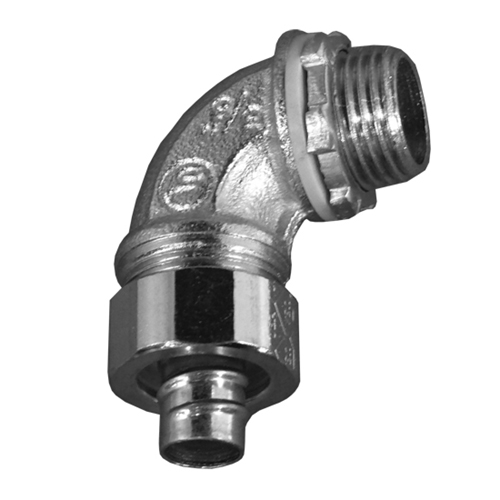

EGS 4QS-950 1/2 IN 90D LFMC CONN
Custom_Product_Images_Illustration
Appleton™
EGS 4QS-950 1/2 IN 90D LFMC CONN
SKU248868
MFGR #4QS-950
Your Cost: $9.38/ea
Liquidtight Fittings, Type: 90 Degree, Material: Steel/Zinc Plated, Trade Size 1/2, Dimensions: Body Length 1.66", Thread Length 0.63", Diameter 1.19", UL Standard: 514B, UL Listed: E11853, CSA Standard: C22.2 No.18.3, CSA Certified: 009795, NEMA: FB-1
Liquidtight Fittings, Type: 90 Degree, Material: Steel/Zinc Plated, Trade Size 1/2, Dimensions: Body Length 1.66", Thread Length 0.63", Diameter 1.19", UL Standard: 514B, UL Listed: E11853, CSA Standard: C22.2 No.18.3, CSA Certified: 009795, NEMA: FB-1
Application For Terminating Liquidtight Flexible Metal Conduit to a Enclosure at a 90 Degree Angle ARRA Compliant N Buy American Compliant N Catalog Number 4QS-950 Color Metallic Connection Male NPT Taper Threaded Country of Origin CN Currency USD Dimensions 1.57 in L x 1.36 in W x 1.4 in H Environmental Conditions Raintight EU RoHS Indicator C Gross Weight Per Pack 0.3250 lb Gross Weight per Pack Metric 0.11 Gross Weight UOM Metric kg Height 0.34 in Height [Metric] 8.6360 mm Insulation None Length 5.40 in Length [Metric] 13.7160 cm NEMA Rating FB-1 Series 4QS Size 0.5 IN in Standard UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 Standards UL 514B File No. E11853CSA C22.2 No. 18.3, 009795NEMA FB-1RoHS Compliant Sub Brand ETP Type Non-Insulated UNSPSC 39121420 UPC 11 68785512082 UPC 12 687855120826 Width 5.30 in Width [Metric] 13.4620 cm Stock Status NORMALLY STOCKED Brand Appleton™ Manufacturer Appleton Angle 90 ° Finish Zinc Electroplated Material Malleable Iron Trade Size 1/2 in For Terminating Liquidtight Flexible Metal Conduit to a Enclosure at a 90 Degree Angle 1/2 IN Trade Size 90 Degree Liquidtight Connector, Tapered Male Hub Threads - NPT, Suitable for Wet Locations, Suitable for use in Class I, Division 2 Locations, Furnished with Locknut and Sealing Ring
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Application | For Terminating Liquidtight Flexible Metal Conduit to a Enclosure at a 90 Degree Angle |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | 4QS-950 |
| Color | Metallic |
| Connection | Male NPT Taper Threaded |
| Country of Origin | CN |
| Currency | USD |
| Dimensions | 1.57 in L x 1.36 in W x 1.4 in H |
| Environmental Conditions | Raintight |
| EU RoHS Indicator | C |
| Gross Weight Per Pack | 0.3250 lb |
| Gross Weight per Pack Metric | 0.11 |
| Gross Weight UOM Metric | kg |
| Height | 0.34 in |
| Height [Metric] | 8.6360 mm |
| Insulation | None |
| Length | 5.40 in |
| Length [Metric] | 13.7160 cm |
| NEMA Rating | FB-1 |
| Series | 4QS |
| Size | 0.5 IN in |
| Standard | UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795; NEMA: FB-1 |
| Standards | UL 514B File No. E11853CSA C22.2 No. 18.3, 009795NEMA FB-1RoHS Compliant |
| Sub Brand | ETP |
| Type | Non-Insulated |
| UNSPSC | 39121420 |
| UPC 11 | 68785512082 |
| UPC 12 | 687855120826 |
| Width | 5.30 in |
| Width [Metric] | 13.4620 cm |
| Stock Status | NORMALLY STOCKED |
| Brand | Appleton™ |
| Manufacturer | Appleton |
| Angle | 90 ° |
| Finish | Zinc Electroplated |
| Material | Malleable Iron |
| Trade Size | 1/2 in |
| For Terminating Liquidtight Flexible Metal Conduit to a Enclosure at a 90 Degree Angle |
| 1/2 IN Trade Size 90 Degree Liquidtight Connector, Tapered Male Hub Threads - NPT, Suitable for Wet Locations, Suitable for use in Class I, Division 2 Locations, Furnished with Locknut and Sealing Ring |
